20914 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

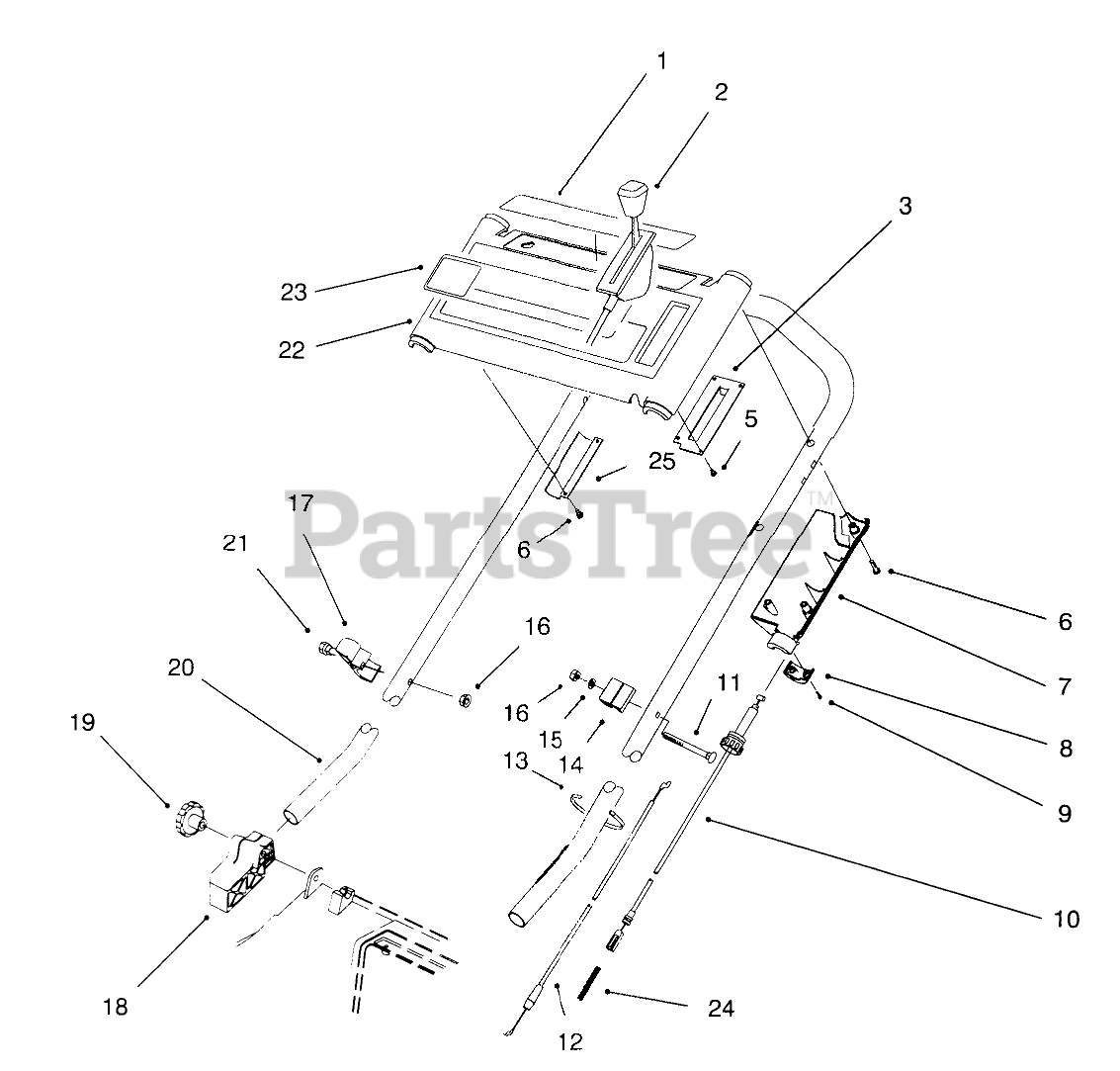

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-6026

DECAL - CONTROL PANEL

$

$

Not available

2

Toro 93-1117

CONTROL - THROTTLE

$113.99

$

Usually ships in 3-6 days

0

3

Toro 71-8040

THROTTLE PLATE

$

$

Not available

5

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

6

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

7

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

8

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

9

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

10

Toro 94-6754

ASM - TRACTION CABLE

$71.99

$

Usually ships in 3-6 days

0

11

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

12

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

17

Toro 93-3772

GUIDE - ROPE

Note: Obtain from Toro Europe N.V.

$

$

Not available

18

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

19

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

20

Toro 94-4367

Handle
(Superseded to 94-4367-05)

$

$

Not available

21

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

22

Toro 17-4319

Panel-Control (Incl. Ref. #1)
(Superseded to 94-9436)

$

$

Not available

23

Toro 71-9861

DECAL - PANEL 4-CYCLE

$

$

Not available

24

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

25

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available
