20914 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) GRASS BAG ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

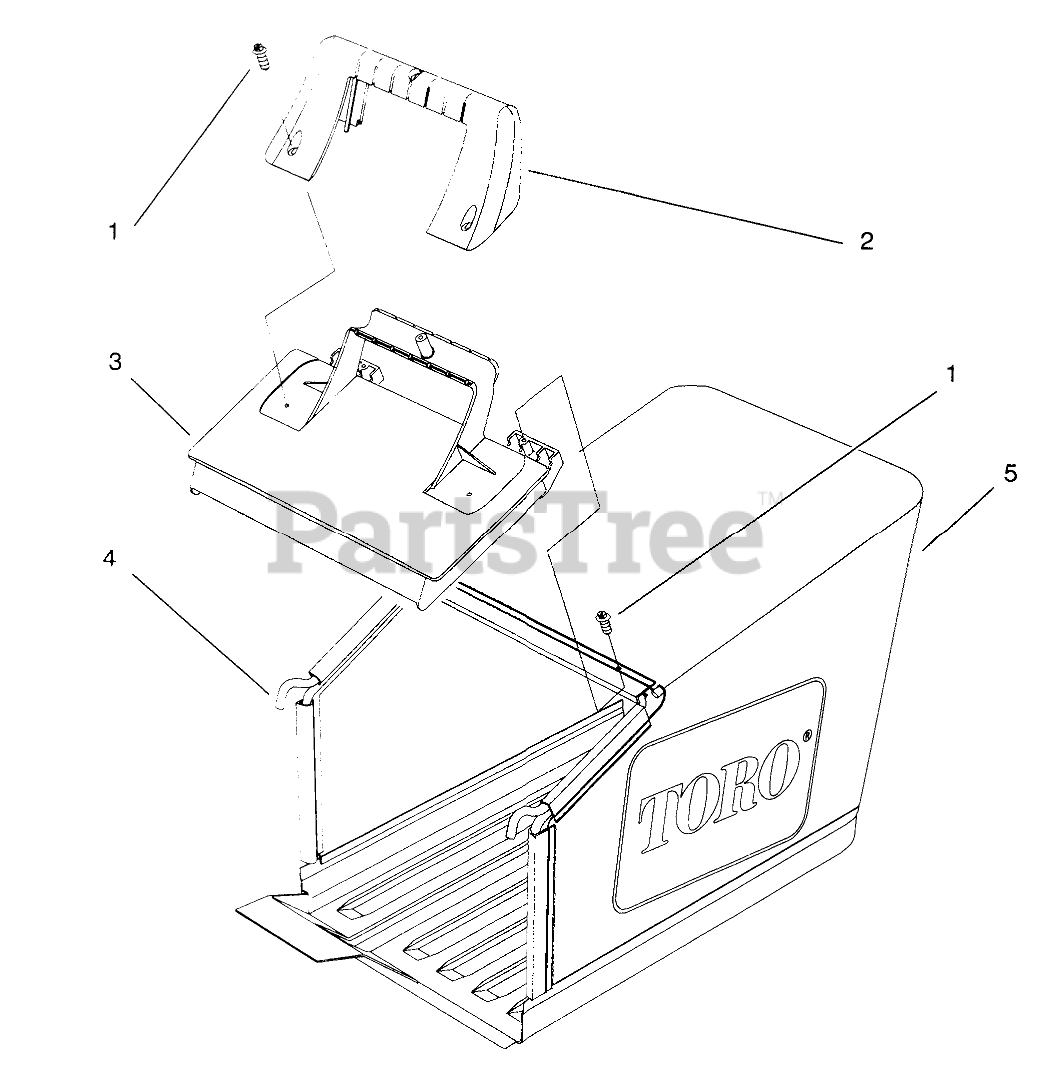

GRASS BAG ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 71-9480

HANDLE-DOOR

Note: Not Illustrated.

$23.99

$

Usually ships in 3-6 days

0

2

Toro 71-9480

HANDLE-DOOR

Note: Obtain from Toro Europe N.V.

$23.99

$

Usually ships in 3-6 days

0

3

Toro 71-9470

DOOR-BAG

Note: Obtain from Toro Europe N.V.

$56.99

$

Usually ships in 3-6 days

0

3

Toro 71-9470

DOOR-BAG

Note: Not Illustrated.

$56.99

$

Usually ships in 3-6 days

0

4

Toro 71-9900

Frame
(Superseded to 71-9900-03)

Note: Obtain from Toro Europe N.V.

$

$

Not available

4

Toro 71-9900

Frame
(Superseded to 71-9900-03)

Note: Not Illustrated.

$

$

Not available

5

Toro 71-9460

GRASS BAG 48CM W/PAN

$

$

Not available
