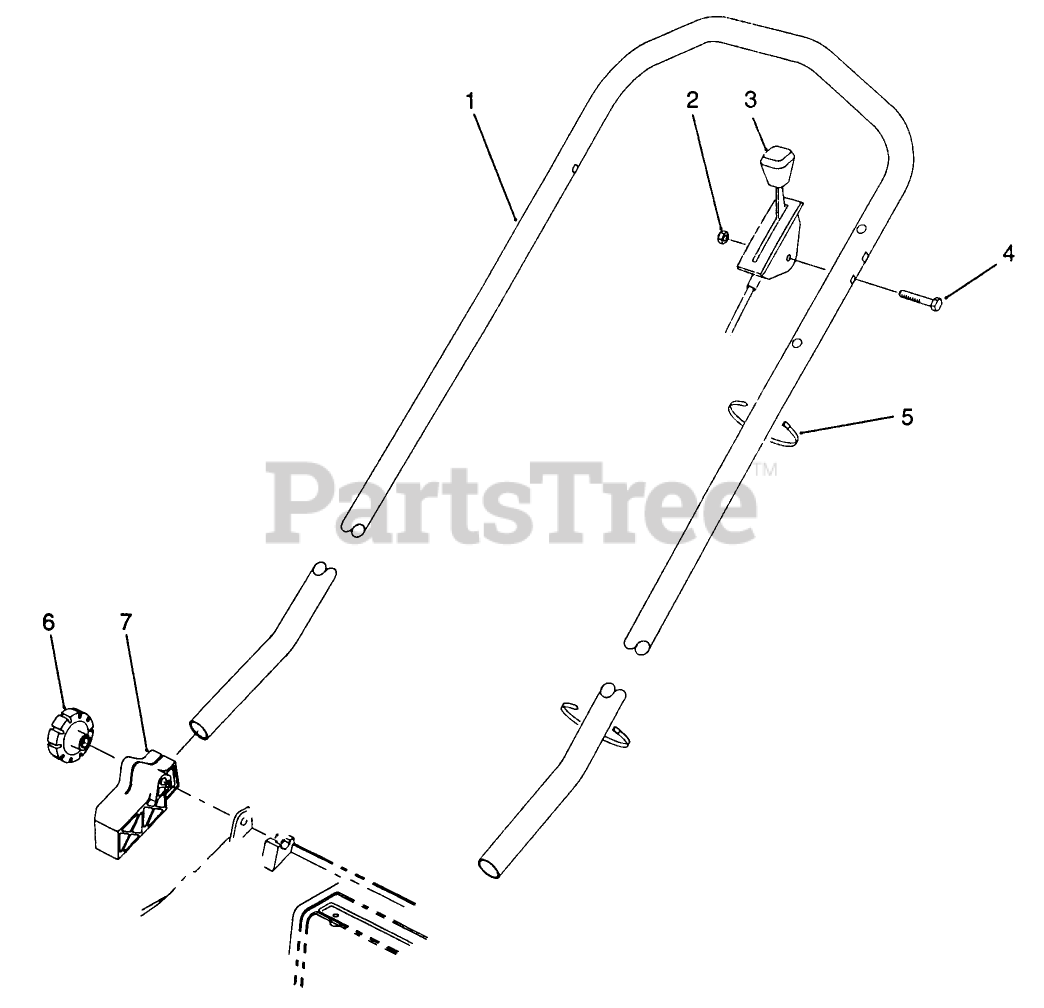

20911 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 010000001 - 019999999) (1991) H.P. HANDLE ASSEMBLY (MODEL NO. 20911B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

H.P. HANDLE ASSEMBLY (MODEL NO. 20911B) Parts Diagram

  • Title
1

Toro 71-8030

Handle

$

$

Not available

2

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 71-8381

Control-Throttle Bend Type #2 Sheath Lg. 44.00 Wire Lg. 2.50
(Superseded to 71-8382)

$

$

Not available

4

Toro 46-6430

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

6

$17.99

$

In Stock, only 2 left!

0

7

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available
