20908 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

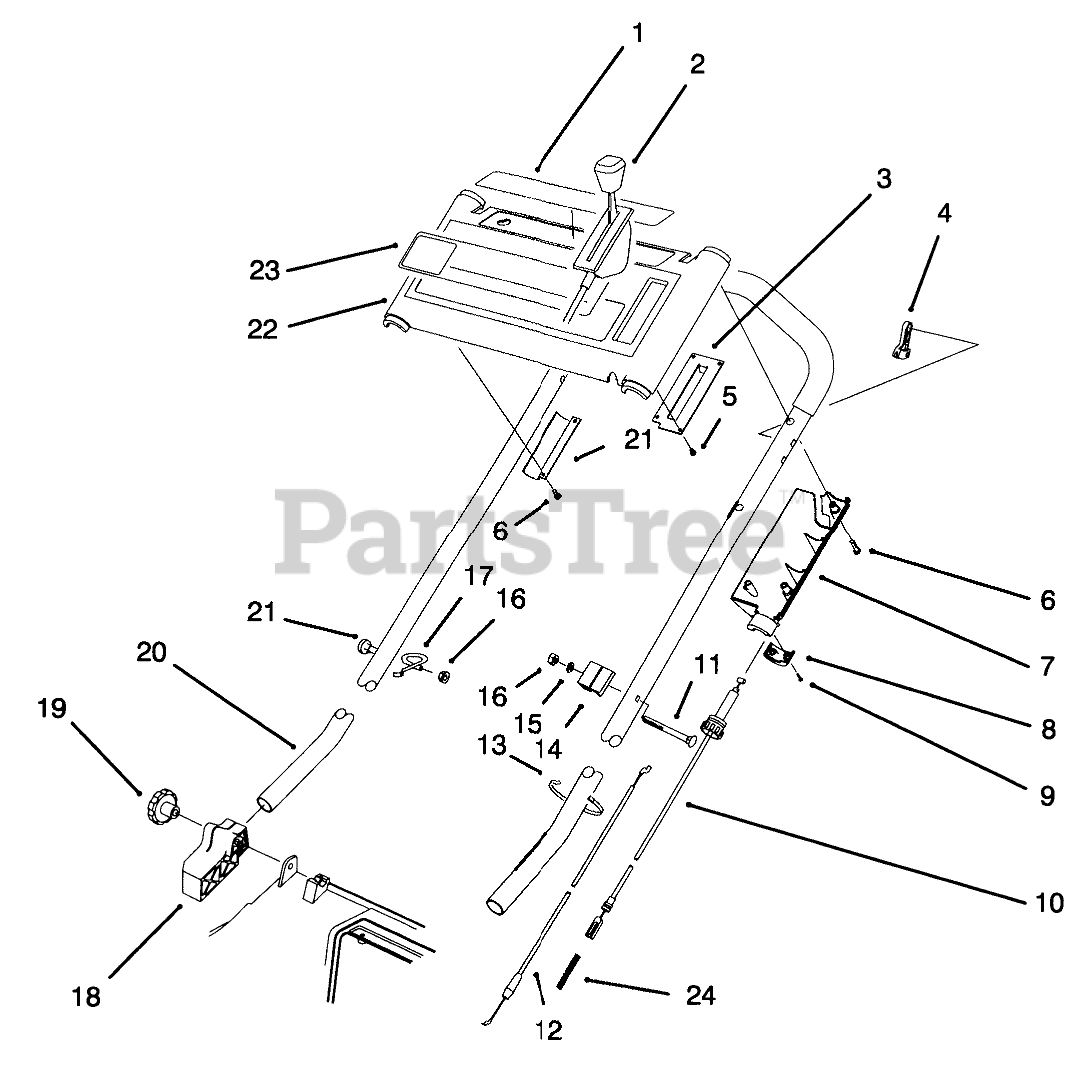

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1120

DECAL - INSTRUCTION

$

$

Not available

2

Toro 93-1117

CONTROL - THROTTLE

$113.99

$

Usually ships in 3-6 days

0

3

Toro 71-8040

THROTTLE PLATE

$

$

Not available

4

Toro 46-5520

LEVER-TRACTION

$

$

Not available

5

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

6

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

7

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

8

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

9

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

10

Toro 93-1119

CABLE - TRACTION

$

$

Not available

11

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

12

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 46-8081

GUIDE-ROPE

$23.99

$

Usually ships in 3-6 days

0

18

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

19

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

20

Toro 71-9023

HANDLE (DIPPED)

$217.99

$

Usually ships in 3-6 days

0

21

Toro 46-6435

Screw-Handle
(Superseded to 321-13)

$4.99

$

In Stock, Qty 10

0

22

Toro 16-8309

Panel-Control (Incl. Ref.#1&23)

$151.99

$

Usually ships in 3-6 days

0

23

Toro 71-9861

DECAL - PANEL 4-CYCLE

$

$

Not available

24

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0
