20908 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODEL 127702-0115-01 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

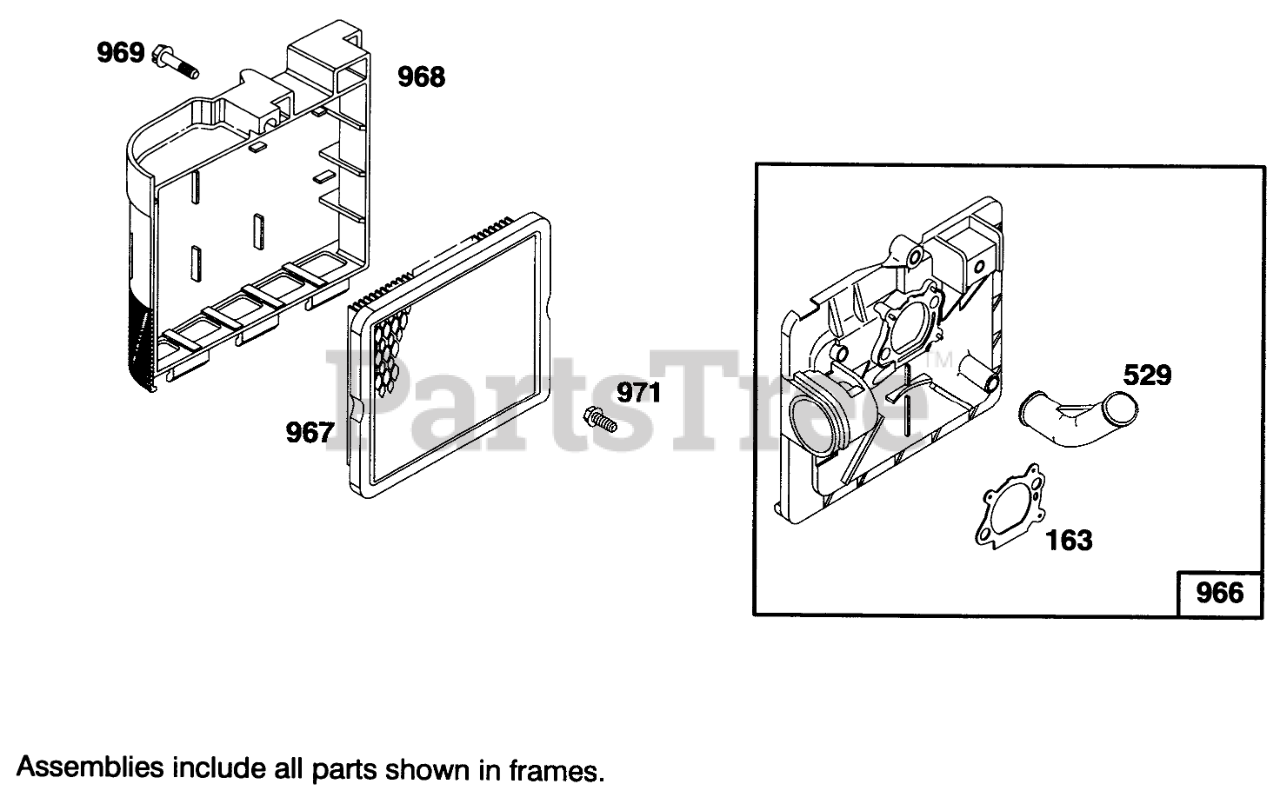

ENGINE BRIGGS & STRATTON MODEL 127702-0115-01 Parts Diagram

  • Title
163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 496117.

$3.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

967

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

Air Cleaner Cover
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

Screw-Cover Mt.
(Superseded to 690670)

$5.99

$

In Stock, Qty 5

0

971

Briggs & Stratton 94121

Screw-Air Cleaner
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0
