20907 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

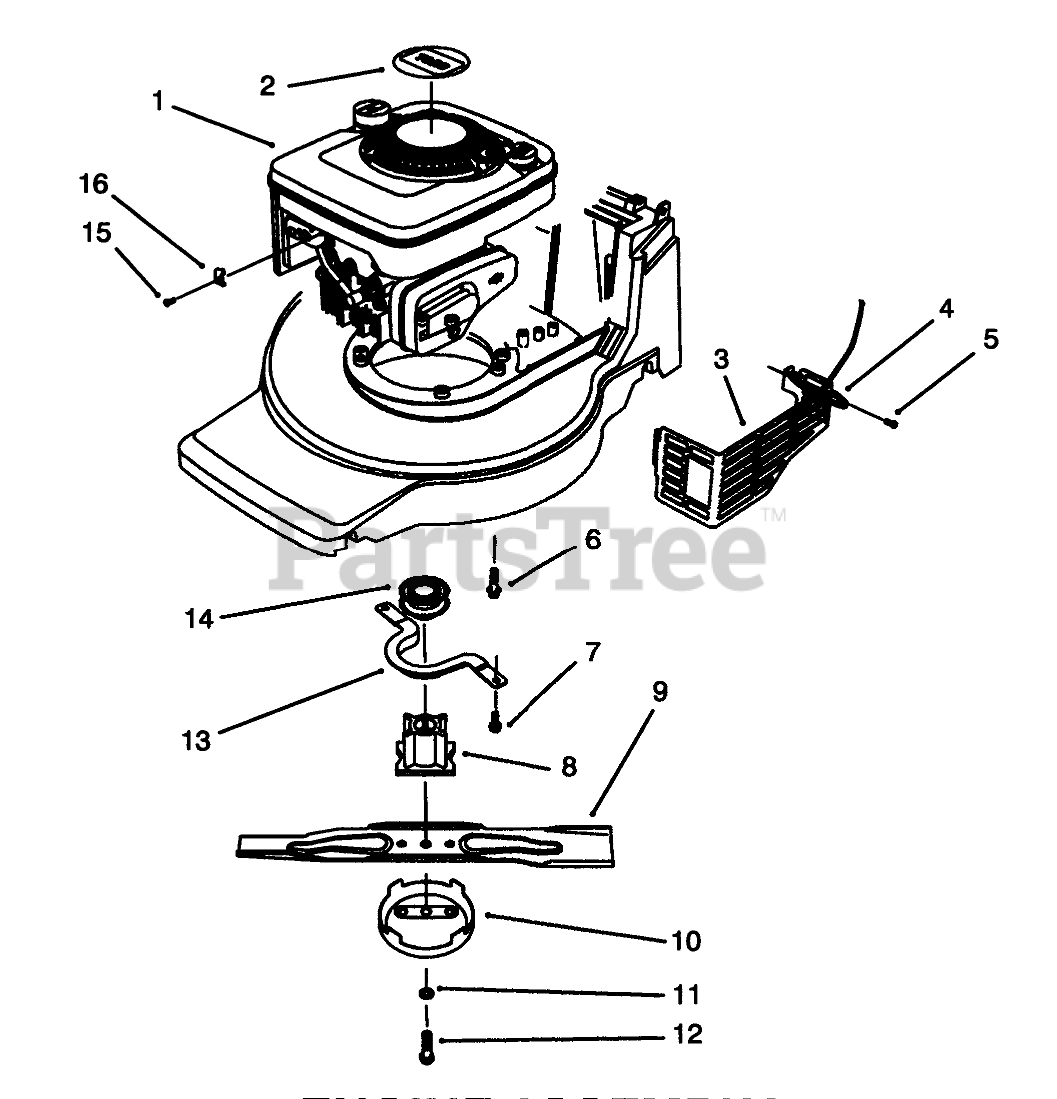

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-B&S Quantum

$

$

Not available

2

Toro 71-8460

DECAL - RECOIL

$

$

Not available

3

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

9

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$90.99

$

Usually ships in 3-6 days

0

10

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

11

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

12

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

13

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

14

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

15

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

16

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0
