20902 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY (SERIAL NO. 3000001-3001001) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

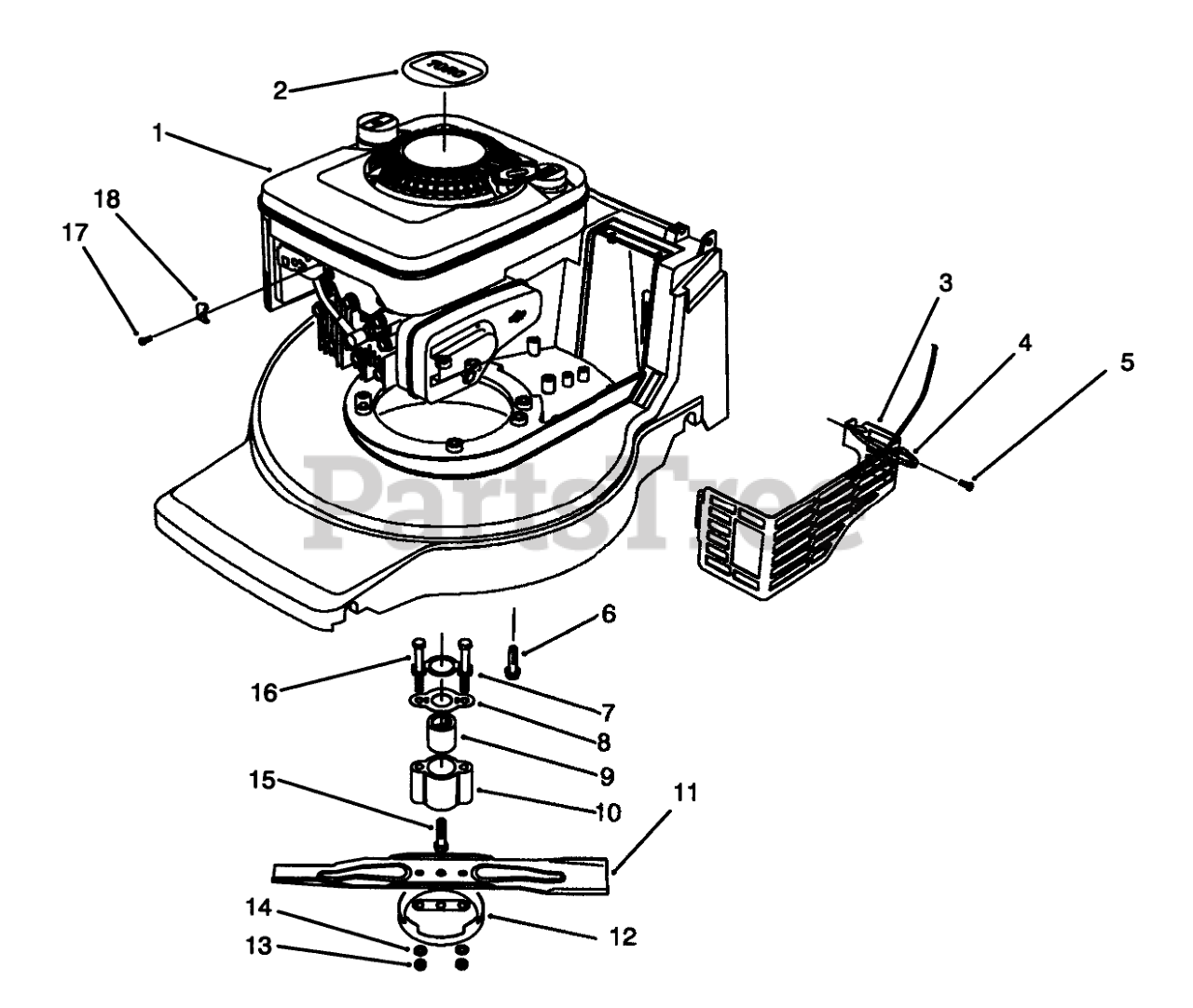

ENGINE ASSEMBLY (SERIAL NO. 3000001-3001001) Parts Diagram

  • Title

1

Engine-B&S Quantum

$

$

Not available

2

Toro 71-8460

DECAL - RECOIL

$

$

Not available

3

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 71-9220

BLADE RETAINER BRKT

$6.49

$

Usually ships in 3-6 days

0

8

Toro 71-8840

SPRING FRICTION

$

$

Not available

9

Toro 71-8780

HUB

$

$

Not available

10

Toro 71-8790

RETAINER

$

$

Not available

11

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$90.99

$

Usually ships in 3-6 days

0

12

Toro 80-2770

CUP-SCALP, ANTI

$17.99

$

Usually ships in 3-6 days

0

13

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 71-8950

SCREW - CRANKSHAFT

$9.99

$

Usually ships in 3-6 days

0

16

Toro 71-8940

SCREW - BLADE

$7.99

$

Usually ships in 3-6 days

0

17

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

18

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0
