20901 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 122702-0182-01 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

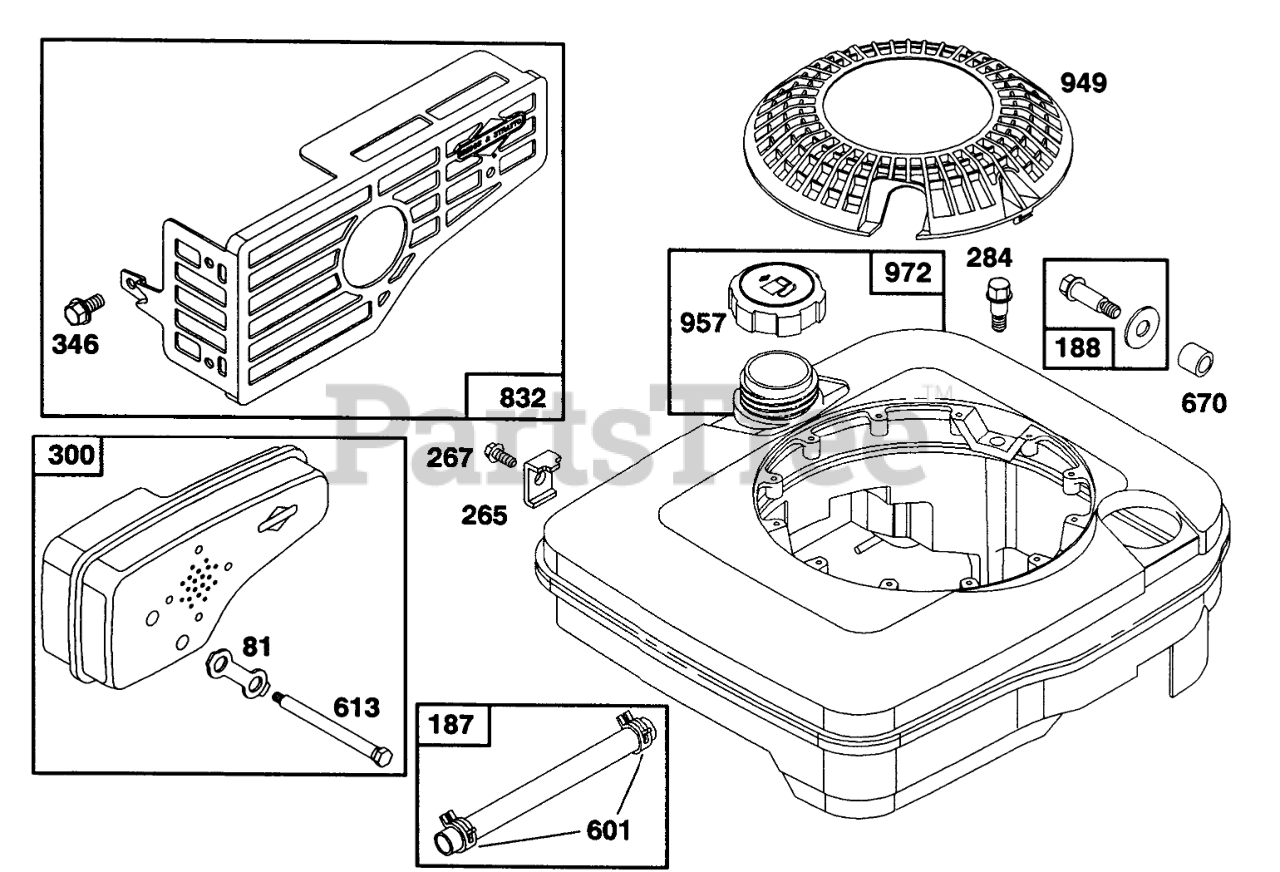

ENGINE BRIGGS & STRATTON MODEL 122702-0182-01 Parts Diagram

  • Title

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

In Stock, Qty 5

0

187

Briggs & Stratton 492790

Hose-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 398540

Screw-Tank Mounting (Includes Washer)
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 94204

Screw Clamp Mtg.
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

300

Briggs & Stratton 490547

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 94602

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 93807

Clamp-Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

670

Briggs & Stratton 280512

Spacer-FueITank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

832

Briggs & Stratton 494224

Guard-Muffler

$40.99

$

In Stock, only 1 left!

0

949

Briggs & Stratton 281136

Guard-Finger
(Superseded to 691919)

$28.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap-Fuel
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 494528

Tank Assembly-Fuel
(Superseded to 699392)

$

$

Not available
