20901 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HOUSING ASSEMBLY (MODEL NO. 20906B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

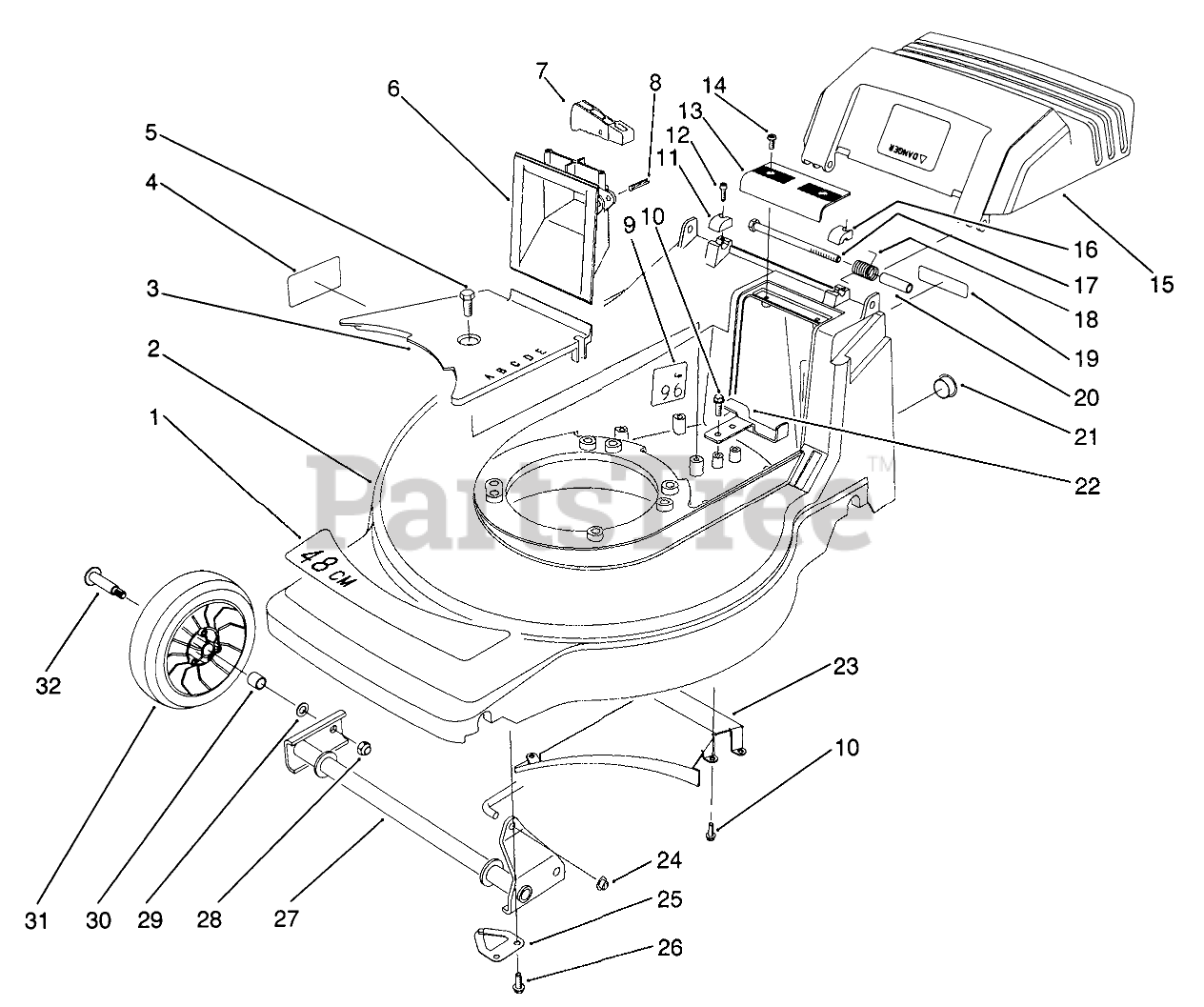

HOUSING ASSEMBLY (MODEL NO. 20906B) Parts Diagram

  • Title
1

Toro 71-8290

DECAL - DECK

$

$

Not available

2

Toro 14-0049

Housing-48cm
(Superseded to 16-5979)

$420.99

$

Usually ships in 3-6 days

0

3

Toro 71-7920

BELT COVER

$

$

Not available

4

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

6

Toro 71-7870

GRIP - LOWER

$

$

Not available

7

Toro 71-7930

TRIGGER - HOC

$

$

Not available

8

Toro 3284-5

PIN-SPIRAL

$

$

Not available

9

Toro 66-1700

Decal-Noise

$

$

Not available

10

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

11

Toro 71-7910

CAP-HINGE BOLT, RH

$5.99

$

Usually ships in 3-6 days

0

12

Toro 65-5210

SCREW-HSH

$

$

Not available

13

Toro 71-7860

GRIP-UPPER

$

$

Not available

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

15

Toro 71-8240

Door-Discharge
(Superseded to 17-1569)

$118.99

$

Usually ships in 3-6 days

0

16

Toro 71-7900

CAP-HINGE BOLT, LH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

18

Toro 71-8300

DOOR SPRING

$

$

Not available

19

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

20

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

21

Toro 2410-74

DOME PLUG (DP-1000)

$

$

Not available

22

Toro 71-7890

REAR BELT GUIDE

$

$

Not available

23

Toro 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

24

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

25

Toro 71-8830

SHAFT RETAINER ASM

$

$

Not available

26

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

27

Toro 71-7820

FRONT PIVOT WA

$227.99

$

Usually ships in 3-6 days

0

28

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

31

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #30)

$

$

Not available

32

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0
