209 (190-209-100) - Cub Cadet 44" Mower Deck 44 inch Deck Drive Parts Diagram

44" Mower Deck

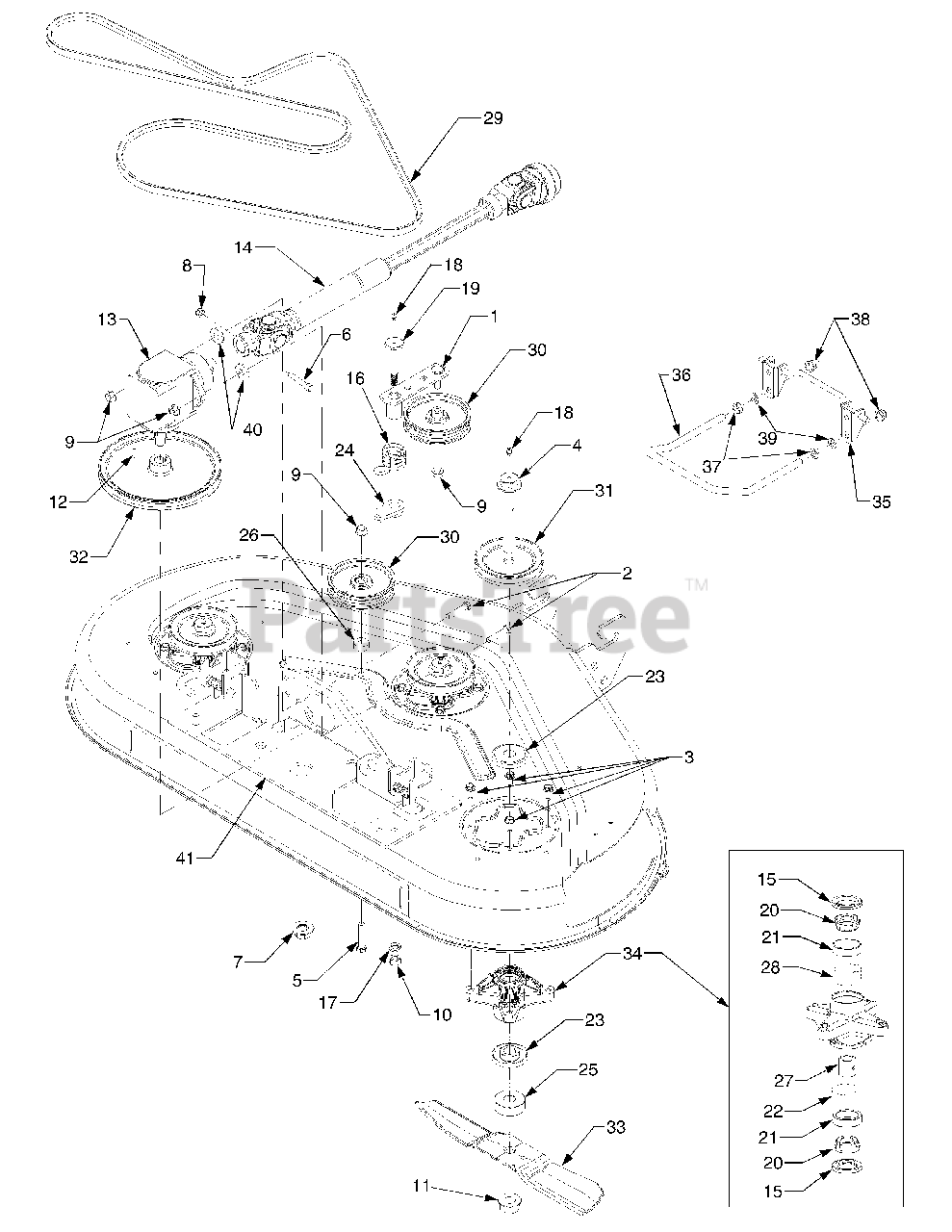

44 inch Deck Drive Parts Diagram

  • Title

1

Cub Cadet 603-0741-0716

Arm Assembly, Idler yellow

$107.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1852

Bolt, Spindle, 3/4-16 x 5.37

$28.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 710-3251

Screw, Socket Hd. 5/16-18 x 1.75

$5.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0429

Nut, Hex Nylon Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3019

Nut, Hex, 7/16-14

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 19

0

13

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$1003.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3453

Shaft, Drive

$1114.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3488

Half Shaft, Front Only

Note: Not Shown

$628.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-3489

Half Shaft, Rear Only

Note: Not Shown

$

$

Not available

14

Cub Cadet 759-04219

Repair Kit, Yoke Lock

Note: Works with Weasler brand Drive Shafts Only, Weasler name on yoke. Not shown

$97.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

16

Cub Cadet 732-3067

Spring, Idler Torsion

$23.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-3172

Screw, Shoulder, .68 x 2.11

$20.99

$

In Stock, only 2 left!

0

20

Cub Cadet 741-3028

Bearing, Cone - Mfg. Code 1I173G and before
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

20

Cub Cadet 741-04089

Bearing, Cone - Mfg Code 1I183G and after
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-3029

Cup, Bearing - Mfg. Code 1I173G and before
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 741-04091

Cup, Bearing - Mfg. Code 1I183G
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 741-3031

Spacer, Bearing
(Superseded to 941-3031)

Note: (Not used in newer housing with cast in spacer)

$

$

Not available

23

Cub Cadet 748-3065A

Spacer, Spindle

$13.99

$

In Stock, Qty 18

0

24

Cub Cadet 748-3100

Retainer, Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

25

Cub Cadet 748-3020

Spacer, Blade
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

26

Cub Cadet 750-3119

Spacer, .406 x 1.0 x .38

$11.99

$

In Stock, Qty 5

0

27

Cub Cadet 750-3190A

Spacer, Bearing - Mfg. Code 1I173G and before

$13.99

$

In Stock, only 2 left!

0

27

Cub Cadet 750-04409

Spacer, Bearing - Mfg. Code 1I183G and after

$20.99

$

In Stock, only 1 left!

0

28

Cub Cadet 750-3191

Spacer, Bearing

Note: (Not used in newer housings with cast in spacer)

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 754-3098

Belt, ‘V’
(Superseded to 954-3098)

$72.99

$

In Stock, only 1 left!

0

30

Cub Cadet 756-3005

Pulley, Flat Idler

$45.99

$

In Stock, Qty 20+

0

31

Cub Cadet 756-3089

Pulley

$36.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-3109

Pulley

$82.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 759-3939

Blade, Mower, 15.94 Long
(Superseded to 742P3036)

$

$

Not available

34

Cub Cadet 918-3129B

Assembly, Spindle - Replaces all older spindles.
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

35

Cub Cadet 603-0452A-0716

Bracket, Front Lift
(Superseded to 603-0452A-4021)

$

$

Not available

36

Cub Cadet 747-3386

Rod, Front Lift

$107.99

$

In Stock, only 4 left!

0

37

Cub Cadet 712-3015

Nut, Hex Jam 5/8-11

$4.99

$

In Stock, only 2 left!

0

38

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$6.99

$

In Stock, Qty 13

0

39

Cub Cadet 736-0158

Washer, Lock 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

40

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135.

$4.49

$

In Stock, only 4 left!

0

41

Cub Cadet 603-0731A-0716

Bracket Assembly, Mounting
(Superseded to 603-0731A-4021)

$

$

Not available
