20899 - Toro 53cm Super Bagger Walk-Behind Mower (SN: 310000001 - 310999999) (2010) SIDE DISCHARGE, TRANSMISSION AND REAR WHEEL ASSEMBLY Parts Diagram

53cm Super Bagger Walk-Behind Mower

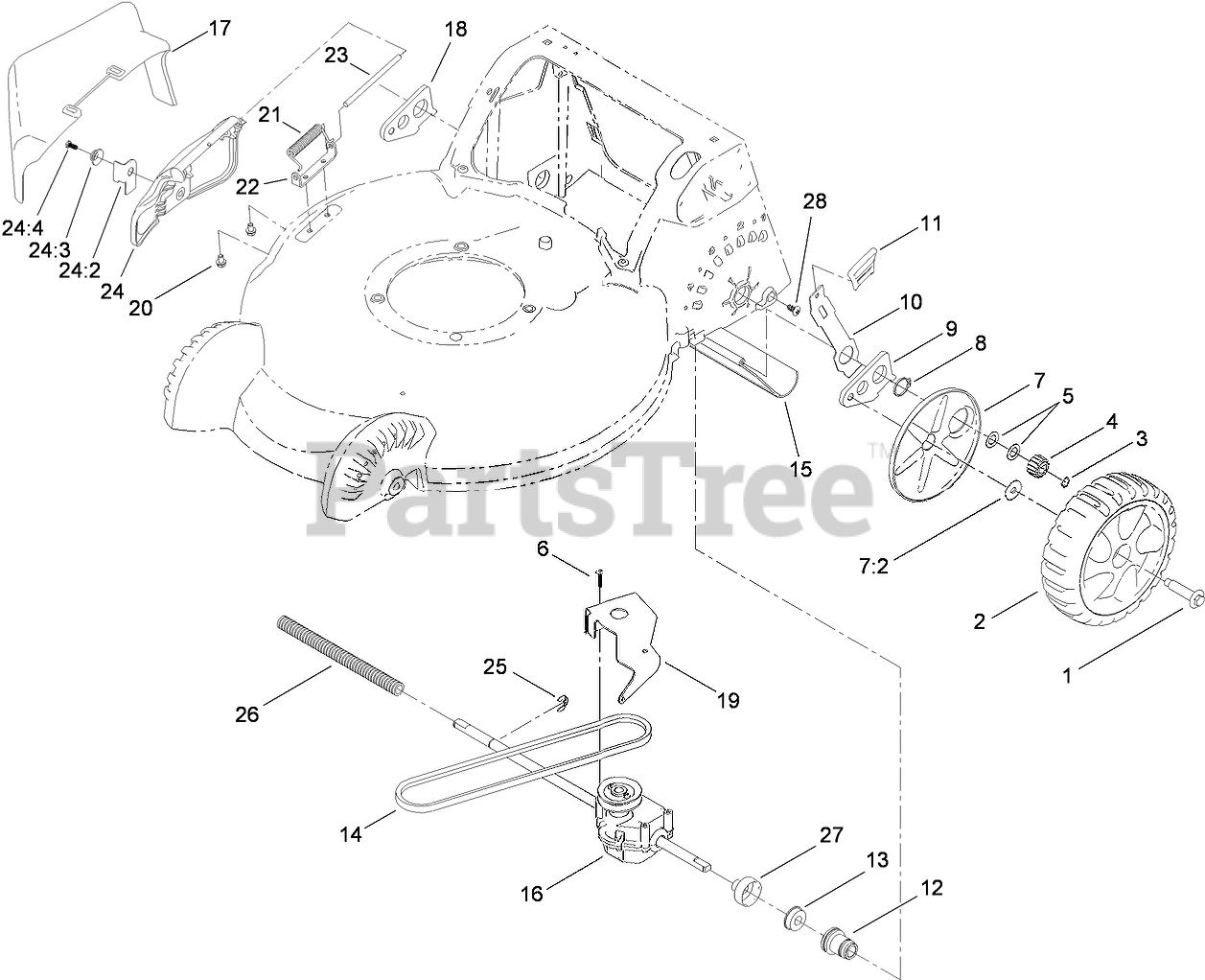

SIDE DISCHARGE, TRANSMISSION AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Toro 117-4104

REAR WHEEL ASM

$45.99

$

In Stock, Qty 6

0

3

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

5

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

6

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

7

Toro 117-4197

WHEEL COVER ASM
(Superseded to 131-4513)

$10.99

$

In Stock, only 3 left!

0

7:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 10

0

8

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 17

0

9

Toro 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Toro 110-9445

ARM-SPRING, REAR

$11.99

$

In Stock, only 3 left!

0

11

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

12

Toro 110-9422

RETAINER-BEARING

$23.99

$

Usually ships in 3-6 days

0

13

Toro 104-8699

BEARING-BALL

$4.49

$

In Stock, Qty 20+

0

14

Toro 110-9429

V-BELT

$17.99

$

In Stock, Qty 13

0

15

Toro 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$39.99

$

In Stock, only 1 left!

0

16

Toro 114-2812

TRANSMISSION ASM
(Superseded to 121-9186)

$144.99

$

In Stock, only 2 left!

0

17

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

18

Toro 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 1 left!

0

19

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

20

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

21

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, only 3 left!

0

22

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 4 left!

0

23

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 5

0

24

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

Usually ships in 3-6 days

0

24:2

Toro 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 4 left!

0

24:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$1.99

$

In Stock, Qty 5

0

24:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 9

0

25

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, only 1 left!

0

26

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

27

Toro 114-2755

CAP-BEARING

$3.49

$

In Stock, Qty 6

0

28

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0
