2086 (14A-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Piston/Crankshaft Parts Diagram

Super Garden Tractor

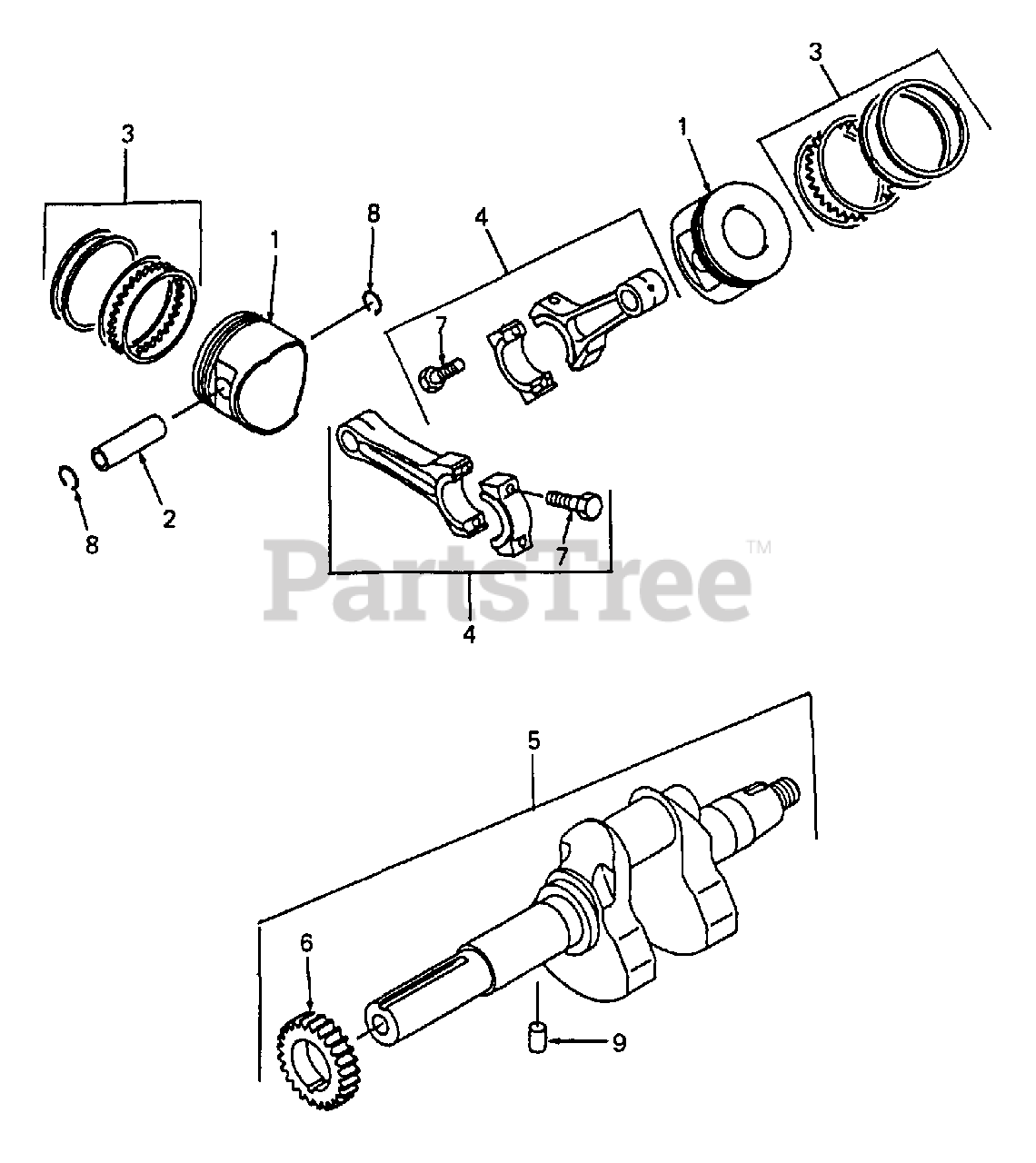

Piston/Crankshaft Parts Diagram

  • Title

1

Cub Cadet KM-13001-2136

Piston, Std

$

$

Not available

Cub Cadet KM-13029-2108

Piston, .25

$

$

Not available

Cub Cadet KM-13029-2109

Piston, .50

$

$

Not available

2

Cub Cadet KM-13002-1013

Pin, Piston

$7.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13008-6025

Ring Set, Piston Std

$39.99

$

In Stock, only 2 left!

0

Cub Cadet KM-13025-6007

Ring Set, Piston, .25

$

$

Not available

Cub Cadet KM-13025-6008

Ring Set, Piston, .50

$40.99

$

In Stock, only 3 left!

0

4

Cub Cadet KM-13251-6022

Rod Assy, Connecting
(Superseded to KM-13251-2086)

$

$

Not available

Cub Cadet KM-13251-6026

Rod Assy, Connecting, U/S, .50

$

$

Not available

5

Cub Cadet KM-49119-2130

Crankshaft Assy

$430.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-59051-2112

Gear, Spur

$40.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-92002-2053

Bolt, Conn Rod

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-92036-021

Circlip, Piston Pin

$0.99

$

In Stock, Qty 8

0

9

Cub Cadet KM-551A0408

Pin, Dowel

$0.99

$

Usually ships in 2-5 days

0
