2086 (14A-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Engine Mounting, Muffler And Air Duct Parts Diagram

Super Garden Tractor

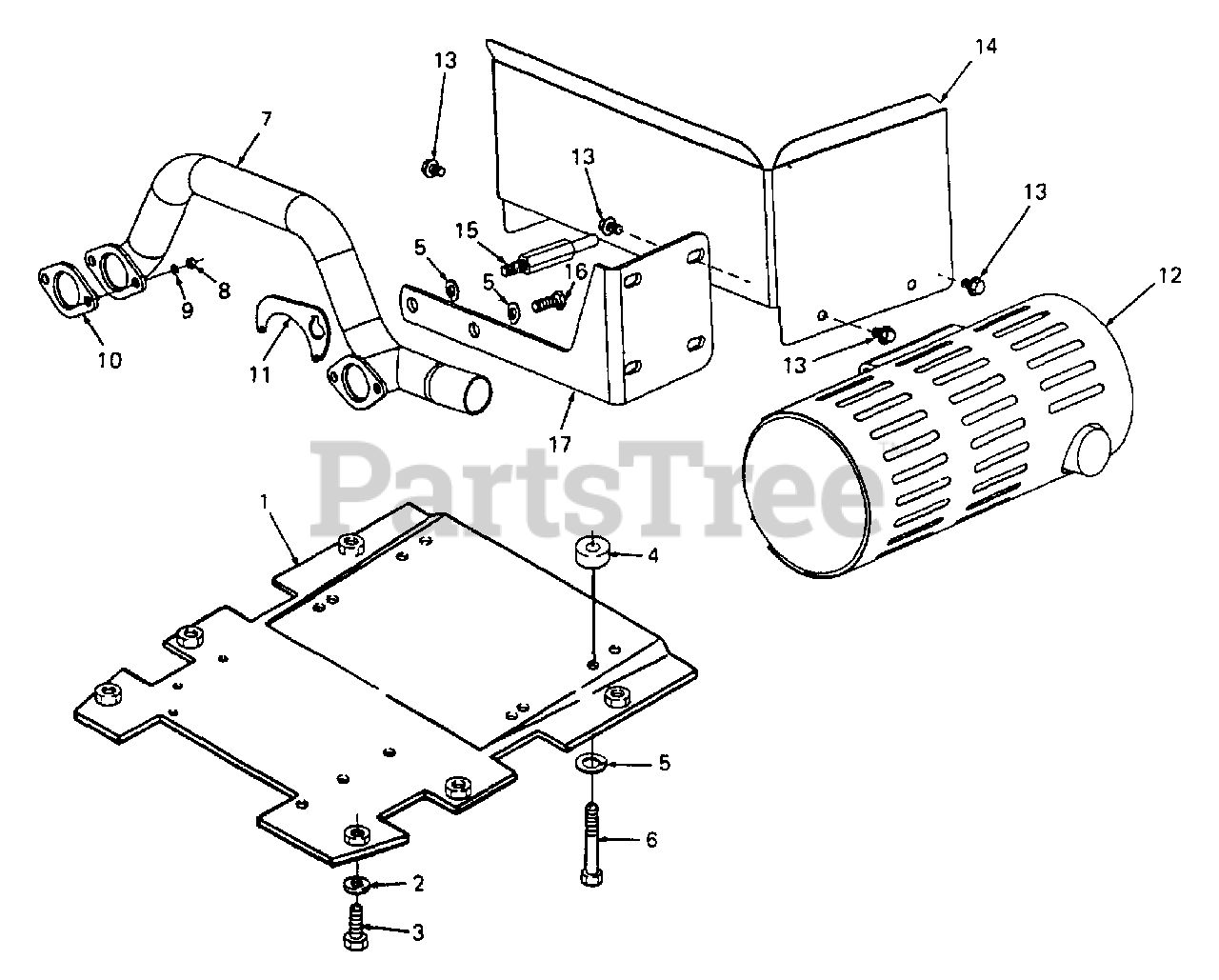

Engine Mounting, Muffler And Air Duct Parts Diagram

  • Title

1

Cub Cadet 603-0025

Plate Assy, Engine Mounting

Variations

Cub Cadet 603-0025-0498

PLATE ASSEMBLY-ENG MTG(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0025-0499

PLATE ASSY, ENGINE MOUNTING - CUB BEIGE (0499)

$

$

Not available

$

$

2

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .06 Thk

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3118

Bolt, Patch, 3/8-16 x 1.0 Lg

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 750-3166

Spacer, .35 ID x 1.0 OD x .80 Lg

$

$

Not available

5

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1308

Screw, Hex Cap, M8 x 1.25 x 40 MM Lg

$

$

Not available

7

Cub Cadet 751-3133

Pipe, Exhaust

$

$

Not available

8

Cub Cadet KM-311G0600

Nut, Hex, 6 MM
(Superseded to KM-311BA0600)

$2.49

$

In Stock, only 3 left!

0

9

Cub Cadet KM-461F0600

Washer, Lock
(Superseded to KM-461DA0600)

$0.99

$

In Stock, Qty 6

0

10

Cub Cadet KM-11060-2079

Gasket, Exhaust

$5.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-11047-2057

Bracket, Lift

$

$

Not available

12

Cub Cadet 751-3135

Muffler

$

$

Not available

13

Cub Cadet 710-0653

Screw, Hex Wash Hd, Tapp, 1/4-20 x .375 Lg

$4.49

$

In Stock, Qty 8

0

14

Cub Cadet 703-2829

Shield, Battery Heat

$

$

Not available

15

Cub Cadet 711-1075

Stud, Clutch Stop

$

$

Not available

16

Cub Cadet 710-3137

Screw, Hex Cap, M8 x 1.25 x 20 MM GR5

$

$

Not available

17

Cub Cadet 703-2824

Bracket, Muffler Mtg

$

$

Not available
