2086 (14A-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Caliper Brake Assembly Parts Diagram

Super Garden Tractor

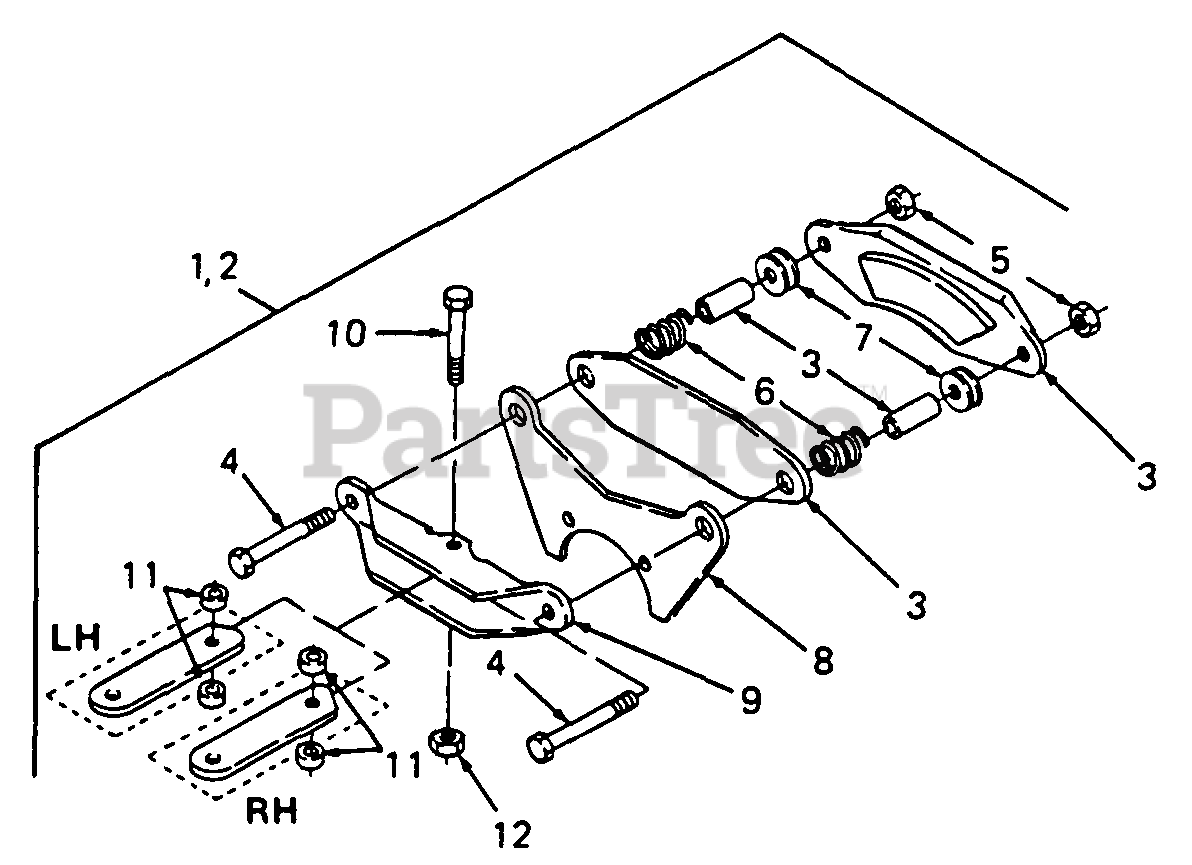

Caliper Brake Assembly Parts Diagram

  • Title

1

Cub Cadet 661-3001

Brake Kit, RH Caliper

$

$

Not available

2

Cub Cadet 661-3002

Brake Kit, LH Caliper

$

$

Not available

3

Cub Cadet 759-3688

Puck Kit, Brake

Note: Includes Ref No. 4 (Qty 2), 5 (Qty 2), 6 (Qty 2) & 7 (Qty 4)

$

$

Not available

4

Cub Cadet 710-0369

Screw, Hex Cap, 3/8-24 x 2.50 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 732-3042

Spring, Compression
(Superseded to 932-3042)

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0344

Washer, Flat, .390 x 1.0 x .030 Thk HDN

Note: As required

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-1787

Bracket, Brake Mounting

$

$

Not available

9

Cub Cadet 661-3000

Bracket Assy, Actuator

Note: Includes Ref No. 10, 11 (Qty 2) & 12

$

$

Not available

10

Cub Cadet 710-3133

Screw, Shoulder

$

$

Not available

11

Cub Cadet 750-3069

Spacer

$

$

Not available

12

Cub Cadet 712-3055

Nut, Hex Top Lock, 1/4-20
(Superseded to 912-0291)

$

$

Not available
