2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Water Pump And Hoses Parts Diagram

Super Garden Tractor

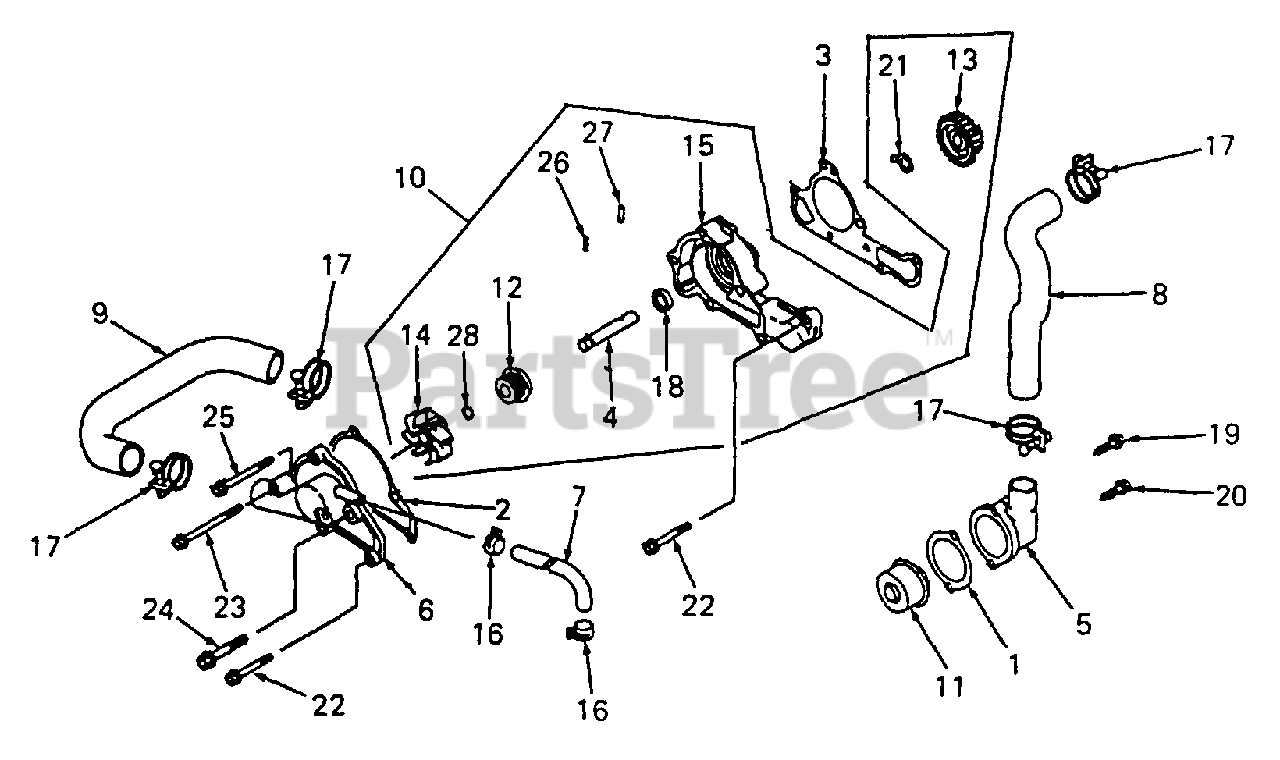

Water Pump And Hoses Parts Diagram

  • Title
1

Cub Cadet KM-11060-2084

Gasket, Thermostat Cover

$3.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11060-2288

Gasket, Pump Cover
(Superseded to KM-11060-2451)

$5.99

$

In Stock, Qty 18

0

3

Cub Cadet KM-11060-2289

Gasket, Pump Case
(Superseded to KM-11060-2450)

$8.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-13107-2097

Shaft, Impeller

$9.49

$

In Stock, only 3 left!

0

5

Cub Cadet KM-14024-2293

Cover, Thermostat

$17.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-16142-2066

Cover, Pump
(Superseded to KM-16142-0729)

$22.99

$

In Stock, only 4 left!

0

7

Cub Cadet KM-39062-2051

Hose, Cooling, 7.5 x 13.5 x 30.5

$5.99

$

In Stock, only 4 left!

0

8

Cub Cadet KM-39062-2062

Hose, Cooling

$26.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-39062-2063

Hose, Cooling

$45.99

$

In Stock, only 3 left!

0

10

Cub Cadet KM-49044-2055

Pump Assy, Water
(Superseded to KM-49044-2066)

Note: Includes Ref No. 4, 12 thru 15, 18, 21 & 26 thru 28

$79.99

$

In Stock, Qty 8

0

11

$31.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-49063-2056

Seal, Mechanical
(Superseded to KM-49063-1056)

$18.99

$

In Stock, only 3 left!

0

13

$5.99

$

In Stock, only 1 left!

0

14

Cub Cadet KM-59256-2051

Impeller
(Superseded to KM-59256-2057)

$4.99

$

Usually ships in 2-5 days

0

15

$35.99

$

Usually ships in 2-5 days

0

$

$

Not available

$2.49

$

In Stock, Qty 5

0

$4.49

$

In Stock, Qty 10

0

19

$1.99

$

Usually ships in 2-5 days

0

20

$2.49

$

Usually ships in 2-5 days

0

$3.49

$

In Stock, only 1 left!

0

22

Cub Cadet KM-130G0645

Bolt, Flanged, 6 x 45
(Superseded to KM-130BA0645)

$1.49

$

In Stock, Qty 8

0

23

Cub Cadet KM-130G0675

Bolt, Flanged, 6 x 75
(Superseded to KM-130CA0675)

$2.99

$

In Stock, only 2 left!

0

24

Cub Cadet KM-130G0870

Bolt, Flanged, 8 x 70
(Superseded to KM-130CA0870)

$2.49

$

In Stock, only 3 left!

0

25

Cub Cadet KM-130H0665

Bolt, 6 x 65
(Superseded to KM-130BA0665)

$1.99

$

In Stock, Qty 5

0

26

Cub Cadet KM-551A0314

Pin, Dowel, 3 x 14

$0.99

$

In Stock, Qty 9

0

27

$0.99

$

In Stock, Qty 9

0

28

Cub Cadet KM-670B1507

O-Ring, 7 MM

$1.49

$

In Stock, Qty 15

0
