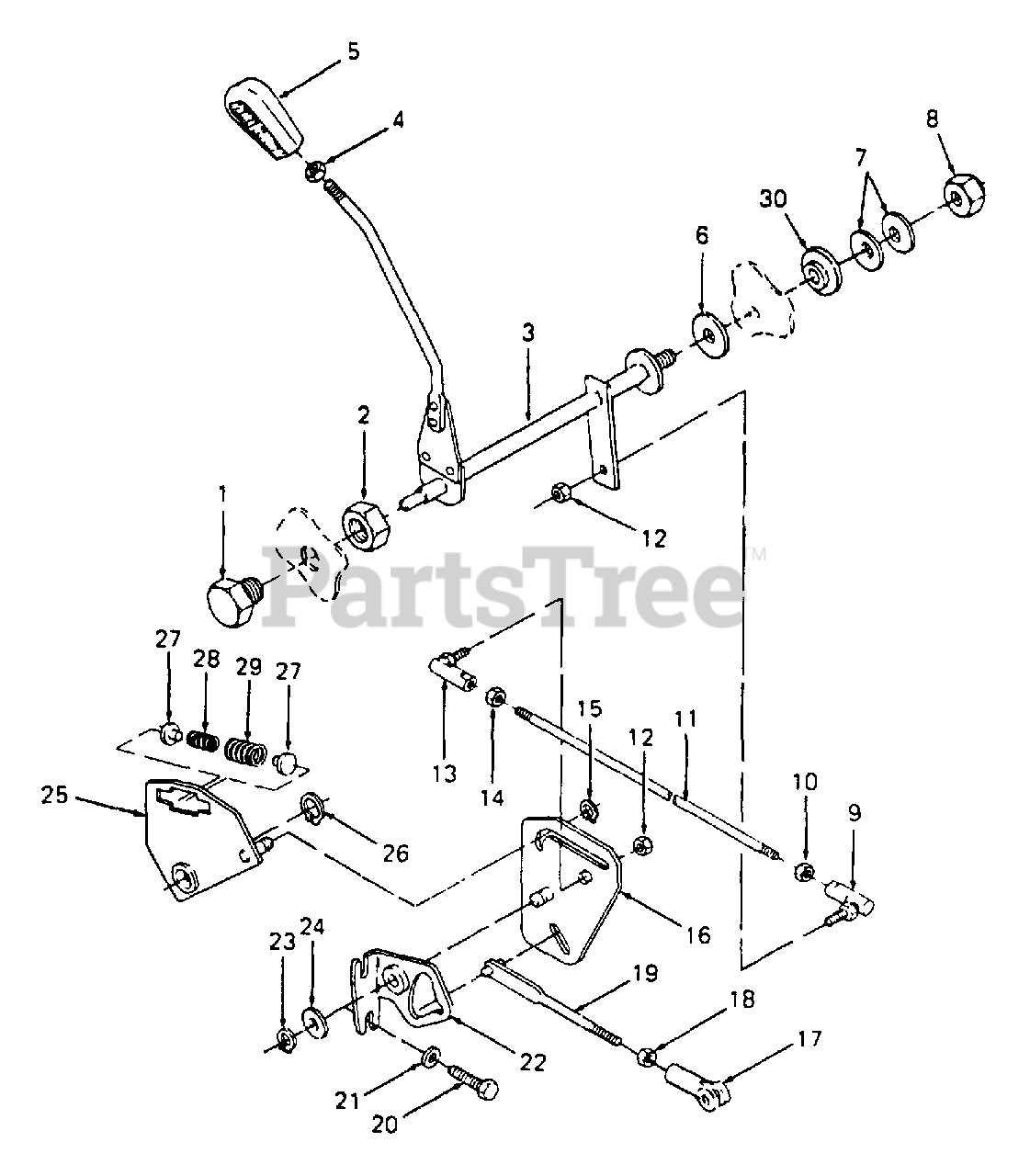

2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Transmission Controls Parts Diagram

Super Garden Tractor

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 710-3033

Screw, Rockshaft Bearing, 3/4-16 x .75 Lg

$

$

Not available

2

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

3

Cub Cadet 703-1838

Shaft Assy, Cross

$

$

Not available

4

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

5

Cub Cadet 731-3108

Knob, Speed Control

$

$

Not available

6

Cub Cadet 723-3055

Disc, Friction
(Superseded to 923-3055)

$

$

Not available

7

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

9

Cub Cadet 723-3011

Ball Joint, 5/16-24
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

10

Cub Cadet 712-3025

Nut, Hex Jam, 5/16-24

$7.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 747-3026

Rod, Connecting

$

$

Not available

12

Cub Cadet 712-0305

Nut, Hex Patch Lock, 5/16-24
(Superseded to 912-0237)

$

$

Not available

13

Cub Cadet 723-3012

Ball Joint, 5/16-24 LH Trd
(Superseded to 923-3012)

$42.99

$

In Stock, only 4 left!

0

14

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Trd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 716-3000

Ring, Retaining, .375

$

$

Not available

16

Cub Cadet 703-0198A

Cam, Control

$84.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 719-3013

Clevis Adjustment

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3037

Pin, Clevis
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0140

Washer, Flat, .385 x .62 x .063 Thk

$7.49

$

In Stock, Qty 7

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

19

Cub Cadet 703-0232

Rod, Control

$

$

Not available

20

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 Lg GR5

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 736-0267

Washer, Flat, .385 x .87 x .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 703-0196

Bracket, Cam Pivot

$

$

Not available

23

Cub Cadet 716-0865

Ring, Snap, .500

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .060 Thk

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 703-0194

Plate Assy, Damper Spring
(Superseded to 903-0194)

$

$

Not available

26

Cub Cadet 716-0115

Ring, Snap, .625
(Superseded to 916-0115)

$

$

Not available

27

Cub Cadet 711-3033

Pin, Spring Guide

$15.99

$

In Stock, Qty 20+

0

28

Cub Cadet 732-3012

Spring, Compression
(Superseded to 932-3012)

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 732-3013

Spring, Compression
(Superseded to 932-3013)

$7.49

$

In Stock, Qty 20+

0

30

Cub Cadet 748-3024

Spacer, Shouldered

$

$

Not available
