2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Steering Mounting Parts Diagram

Super Garden Tractor

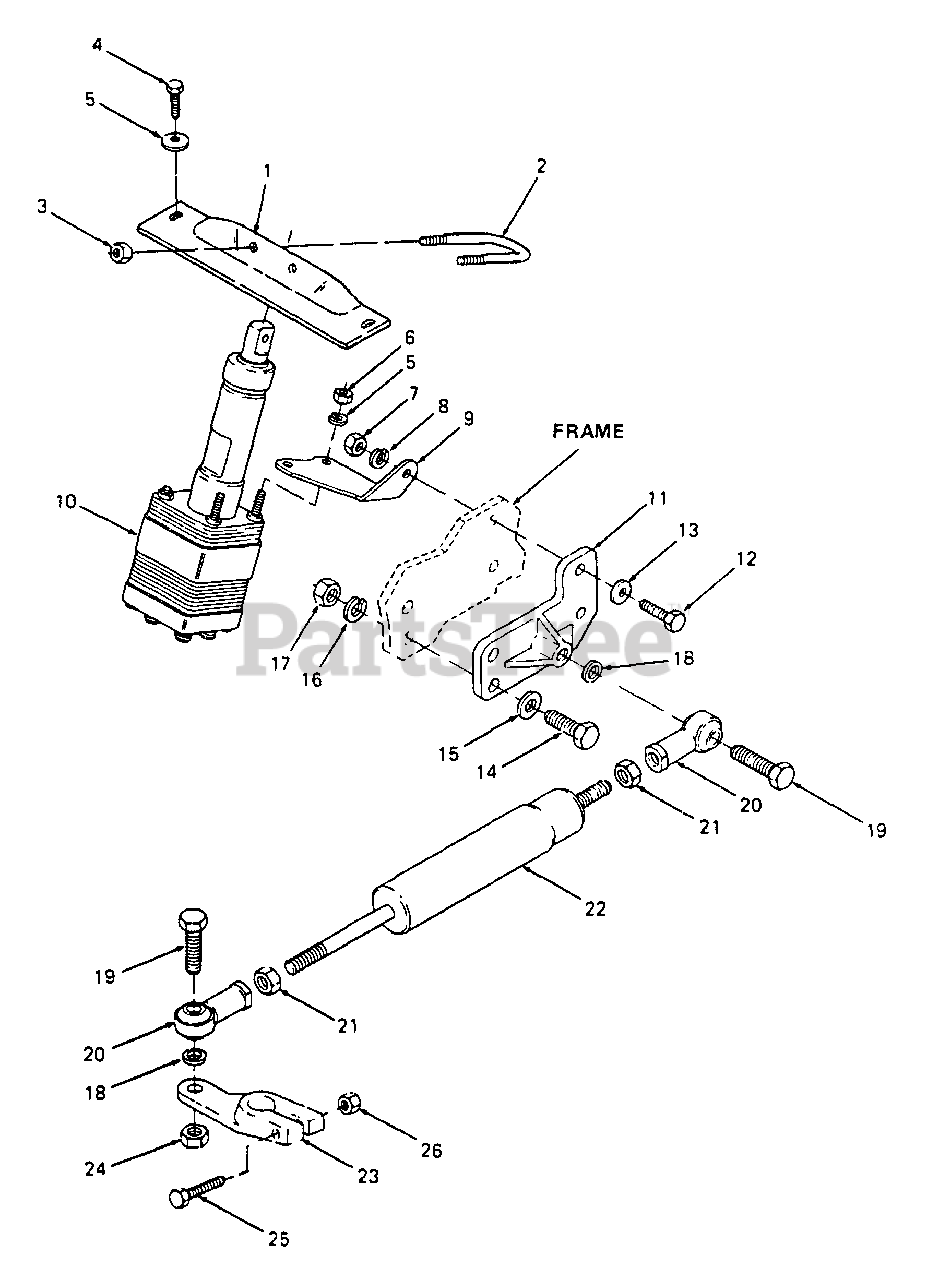

Steering Mounting Parts Diagram

  • Title

1

Cub Cadet 703-2135

Plate, Steering Support

$

$

Not available

2

Cub Cadet 747-3016

Clamp

$

$

Not available

3

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-3004

Screw, Hex Cutting, 5/16-18 x .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060 Thk

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1857

Bracket, Power Steering Box Mtg

$

$

Not available

10

Cub Cadet 703-1858

Power Steering Box w/Flat

Note: For component parts see "Power Steering Box" illustration and parts list.

$

$

Not available

11

Cub Cadet 719-3067

Bracket, Cylinder Mounting

Variations

Cub Cadet 719-3067-0498

BRACKET-CYL. MTG. (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 719-3067-0637

BRACKET, CYLINDER MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0267

Washer, Flat, .385 x .87 x .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .06 Thk HDN

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

17

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3003

Washer, Flat, .531 x .688 x .054 Thk

$

$

Not available

19

Cub Cadet 710-3177

Screw, Hex Cap, 1/2-20 x 1.5 Lg GR5

$

$

Not available

20

Cub Cadet 723-3053

Alignaball End, 1/2-20
(Superseded to 923-3053)

$107.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-3029

Nut, Hex Jam, 1/2-20 GR5

$6.99

$

In Stock, Qty 6

0

22

Cub Cadet 717-3041A

Cylinder, Power Steering
(Superseded to 717-3041A-0637)

Variations

Cub Cadet 717-3041A-0637

Power Steering Cylinder - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 719-3065

Arm, Steering

$

$

Not available

24

Cub Cadet 712-3066

Nut, Hex, 1/2-20 GR5
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 Lg GR5

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0
