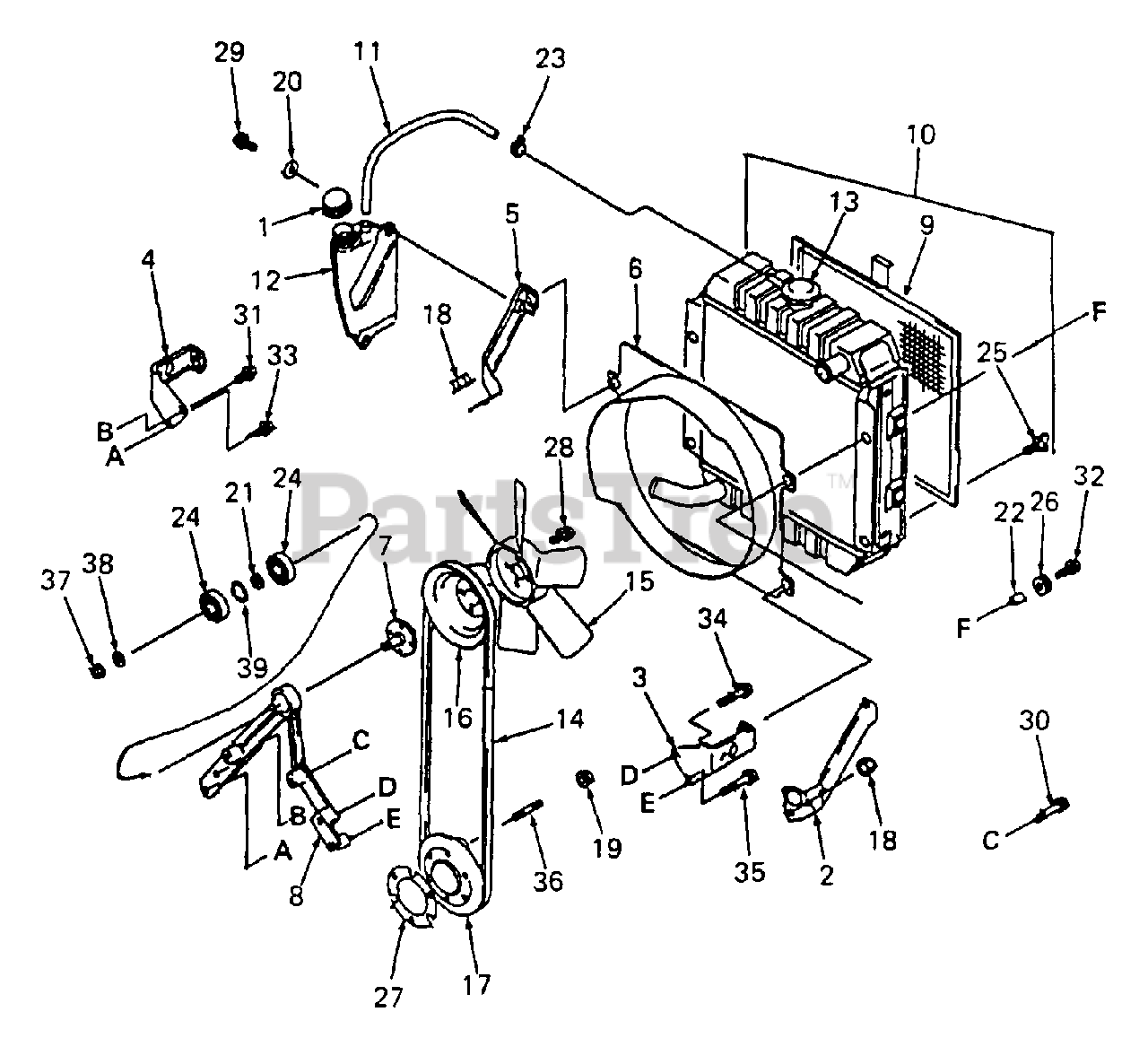

2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Radiator And Fan Parts Diagram

Super Garden Tractor

Radiator And Fan Parts Diagram

  • Title

A

UNKNOWN

$

$

Not available

B

UNKNOWN

$

$

Not available

C

UNKNOWN

$

$

Not available

D

UNKNOWN

$

$

Not available

E

UNKNOWN

$

$

Not available

F

UNKNOWN

$

$

Not available

1

Cub Cadet KM-11012-1084

Cap, Overflow Tank

$1.99

$

In Stock, Qty 20+

0

2

KM-1104820379H

Bracket

$

$

Not available

3

KM-1104920259H

Bracket

$

$

Not available

4

KM-1104920269H

Bracket

$

$

Not available

5

KM-1104920279H

Bracket

$

$

Not available

6

Cub Cadet KM-13070-2093

Guide

$34.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-13107-2246

Shaft, Pulley

$58.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-13304-6007

Housing Assy

Note: Includes Ref No. 21, 24 (Qty 2) & 39

$101.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-14037-2128

Screen, Radiator

$117.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-39061-2056

Radiator Assy

Note: Includes Ref No. 9, 13 & 25

$747.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-39062-2054

Hose, Overflow Return, 7.5 x 10.5 x 460

$7.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-43078-2055

Tank, Overflow

$47.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-49085-2052

Cap, Radiator Pressure

$23.99

$

In Stock, Qty 8

0

14

Cub Cadet KM-59011-2056

Belt, Fan

$26.99

$

In Stock, only 1 left!

0

15

Cub Cadet KM-59041-2063

Fan, Cooling

$44.99

$

In Stock, only 1 left!

0

16

KM-5909120529H

Pulley

$

$

Not available

17

Cub Cadet KM-59091-2053

Pulley

$69.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92015-1014

Nut, 8 MM

$0.99

$

In Stock, Qty 10

0

19

Cub Cadet KM-92015-1143

Nut, 8 MM

$0.99

$

In Stock, Qty 10

0

20

Cub Cadet KM-92022-2247

Washer

$0.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92026-2311

Spacer, 12 x 18 x 1.4

$0.99

$

In Stock, only 1 left!

0

22

Cub Cadet KM-92027-271

Collar

$3.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-92037-2001

Clamp

$1.49

$

In Stock, only 3 left!

0

24

Cub Cadet KM-92045-2191

Bearing, Ball

$16.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-92150-2255

Bolt, Drain

$5.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-92160-2034

Damper

$1.49

$

In Stock, only 1 left!

0

27

Cub Cadet KM-92180-2013

Shim, T = 0.6

$1.99

$

In Stock, Qty 6

0

Cub Cadet KM-92180-2014

Shim, T = 1.2

$2.49

$

In Stock, Qty 11

0

28

Cub Cadet KM-130G0616

Bolt, Flanged, 6 x 16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

29

Cub Cadet KM-130B0618

Bolt, Flanged, 6 x 18
(Superseded to KM-130BA0618)

$

$

Not available

30

Cub Cadet KM-130B0635

Bolt, Flanged, 6 x 35
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

31

Cub Cadet KM-130G0820

Bolt, Flanged, 8 x 20
(Superseded to KM-130BA0820)

$4.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KM-130B0825

Bolt, Flanged, 8 x 25

$

$

Not available

33

Cub Cadet KM-130B0830

Bolt, Flanged, 8 x 30
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KM-130B0840

Bolt, Flanged, 8 x 40
(Superseded to KM-130BA0840)

$2.49

$

In Stock, Qty 7

0

35

Cub Cadet KM-130G0845

Bolt, Flanged, 8 x 45
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

36

Cub Cadet KM-171G0818

Bolt, Stud, 8 x 18

$1.99

$

In Stock, only 1 left!

0

37

Cub Cadet KM-315B1000

Nut, 10 MM
(Superseded to KM-315AA1000)

$0.99

$

In Stock, Qty 10

0

38

Cub Cadet KM-410B1000

Washer, Plain, 10 MM
(Superseded to KM-410AA1000)

$0.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KM-481J2B00

Circlip, 28 MM

$

$

Currently unavailable
