2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Power Steering Box Assembly Parts Diagram

Super Garden Tractor

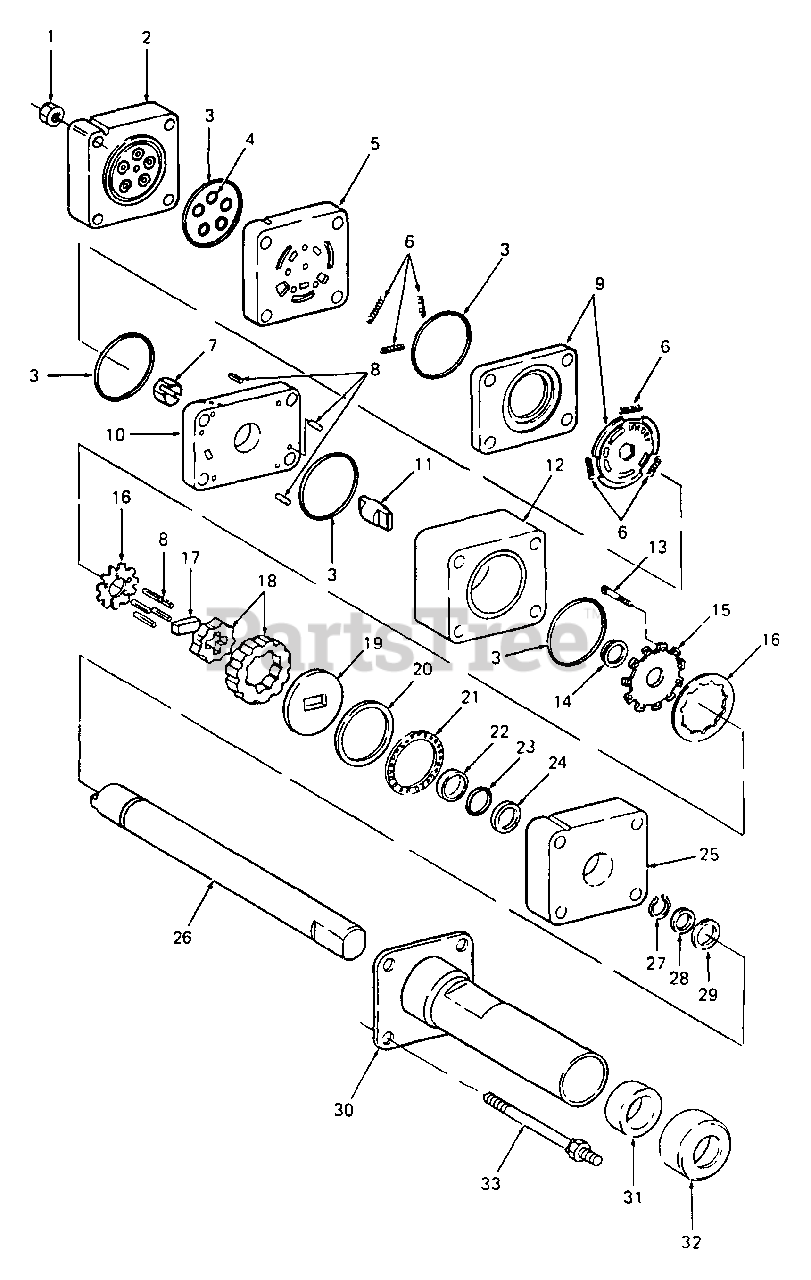

Power Steering Box Assembly Parts Diagram

  • Title

Cub Cadet 703-1858

Power Steering Box Assy w/Flat

$

$

Not available

1

Cub Cadet 712-3057

Nut, Hex, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet RG-HGF016015-X1

Power Cover & Check Valve Assy

$

$

Not available

3

Cub Cadet RG-032755

Ring, Seal

$

$

Not available

$

$

Not available

5

Cub Cadet RG-HGF015008

Manifold, Port

$

$

Not available

6

$

$

Not available

7

Cub Cadet RG-HGF013001-A1

Drive Assy, Hex

$

$

Not available

8

Cub Cadet RG-040147-X1

Roller Kit, Needle

$

$

Not available

9

Cub Cadet RG-HGF014000-A1

Valve & Ring Assy

$

$

Not available

10

Cub Cadet RG-HGF015000

Manifold, Isolation

$

$

Not available

11

$

$

Not available

12

Cub Cadet RG-HGF019008

Ring, Metering

$

$

Not available

$

$

Not available

$

$

Not available

15

Cub Cadet RG-HGF014001

Cover, Commutator

$

$

Not available

16

Cub Cadet RG-HGF014002-A1

Commutator & Ring Assy

$

$

Not available

17

Cub Cadet RG-477301-0034

Spacer, Drive Link

$

$

Not available

18

$

$

Not available

19

$

$

Not available

$

$

Not available

21

Cub Cadet RG-069020

Bearing, Thrust

$

$

Not available

22

Cub Cadet RG-478046

Seal, Face

$

$

Not available

23

Ring, Back-up

Note: Order seal kit.

$

$

Not available

24

Cub Cadet RG-477297

Seal, Spacer

$

$

Not available

25

Cub Cadet RG-HGF016001

Plate, Upper Cover

$

$

Not available

26

Cub Cadet RG-086125-S10771

Input Shaft Assy

$

$

Currently unavailable

27

Cub Cadet RG-401465

Ring, Retaining

$

$

Not available

$

$

Not available

29

Cub Cadet RG-028495

Plate, Retaining

$

$

Not available

30

Cub Cadet 759-3572

Upper Cover & Tube Assy w/Flat

$

$

Not available

31

Cub Cadet RG-061016X1

Bearing, Column

$

$

Not available

32

Cub Cadet RG-402405

Dust Seal, Column

$

$

Not available

33

Cub Cadet RG-021360-0462

Bolt, Special

$

$

Not available

Cub Cadet RG-SK000097

Kit, Seal

Note: Includes Ref No. 3 (Qty 5), 4 (Qty 5), 14, 22 & 23

$

$

Not available
