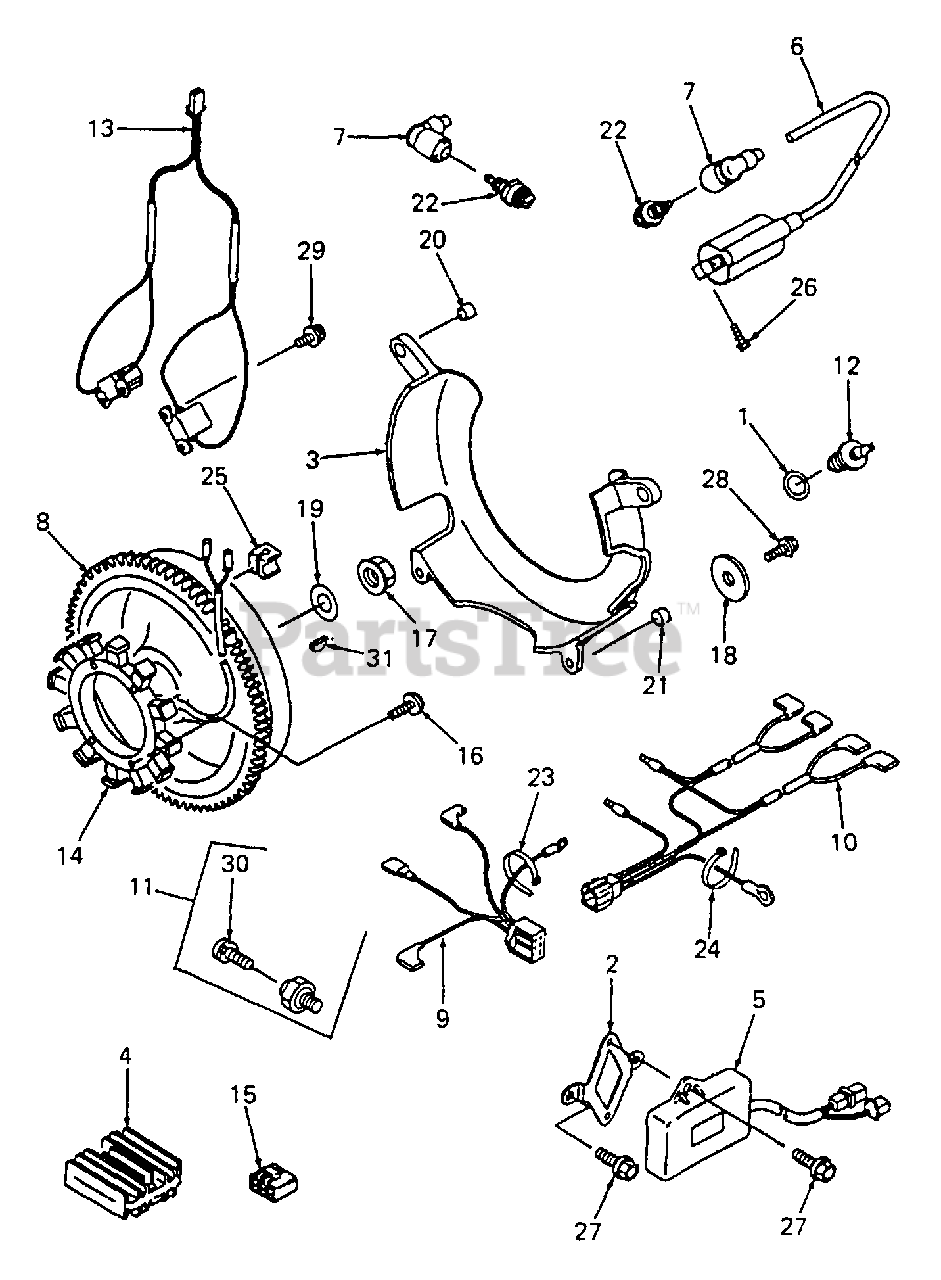

2086 (146-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Engine Electrical Parts Diagram

Super Garden Tractor

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet KM-11009-2766

Gasket, Prssr Switch

$1.49

$

In Stock, Qty 8

0

2

KM-1104720369H

Bracket

$

$

Not available

3

Cub Cadet KM-14083-2051

Cover, Flywheel

$27.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-21066-2070

Regulator, Voltage

$131.99

$

In Stock, only 3 left!

0

5

Cub Cadet KM-21119-2120

Igniter
(Superseded to KM-21119-2157)

$317.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-21121-2083

Coil, Ignition

$73.99

$

In Stock, Qty 8

0

7

Cub Cadet KM-21130-2060

Cap, Spark Plug

$14.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-21193-2149

Flywheel Assy
(Superseded to KM-21193-0029)

$452.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-26030-2073

Harness

$26.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-26030-2167

Harness

$26.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-27010-2170

Switch, Oil Pressure
(Superseded to KM-27010-0851)

$19.99

$

In Stock, only 1 left!

0

12

Cub Cadet KM-27010-2182

Switch, Temperature

$38.99

$

In Stock, only 1 left!

0

13

Cub Cadet KM-59026-2054

Coil, Pulsing
(Superseded to KM-59026-0048)

$86.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-59031-2096

Coil, Charging
(Superseded to KM-59031-2108)

$190.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-59221-2099

Connector

$1.99

$

In Stock, only 1 left!

0

16

Cub Cadet KM-92009-2273

Screw

$1.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92015-2167

Nut

$7.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92022-1517

Washer, 6 x 19.5 x 2

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-92022-2245

Washer

$1.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-92027-1568

Collar, 8.3 x 11.5 x 9

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet KM-92027-2096

Collar, 6.2 x 7.8 x 5

$0.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-BMR4A

Plug, Spark

$3.49

$

In Stock, only 4 left!

0

23

Cub Cadet KM-92072-1195

Band

$1.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-92072-2003

Band

$

$

Not available

25

Cub Cadet KM-92170-2056

Clamp

$3.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-130B0520

Bolt, Flanged, 5 x 20

$

$

Not available

27

Cub Cadet KM-130G0614

Bolt, Flanged, 6 x 14

$

$

Not available

28

Cub Cadet KM-130G0616

Bolt, Flanged, 6 x 16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

29

Cub Cadet KM-225B0414

Screw, 4 x 14

$

$

Not available

30

Cub Cadet KM-241B0406

Screw, 4 x 6

$0.99

$

In Stock, Qty 9

0

31

Cub Cadet KM-510A5100

Key, Woodruff

$3.49

$

In Stock, Qty 11

0
