2084 (144-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Hydraulic Cylinder Parts Diagram

Super Garden Tractor

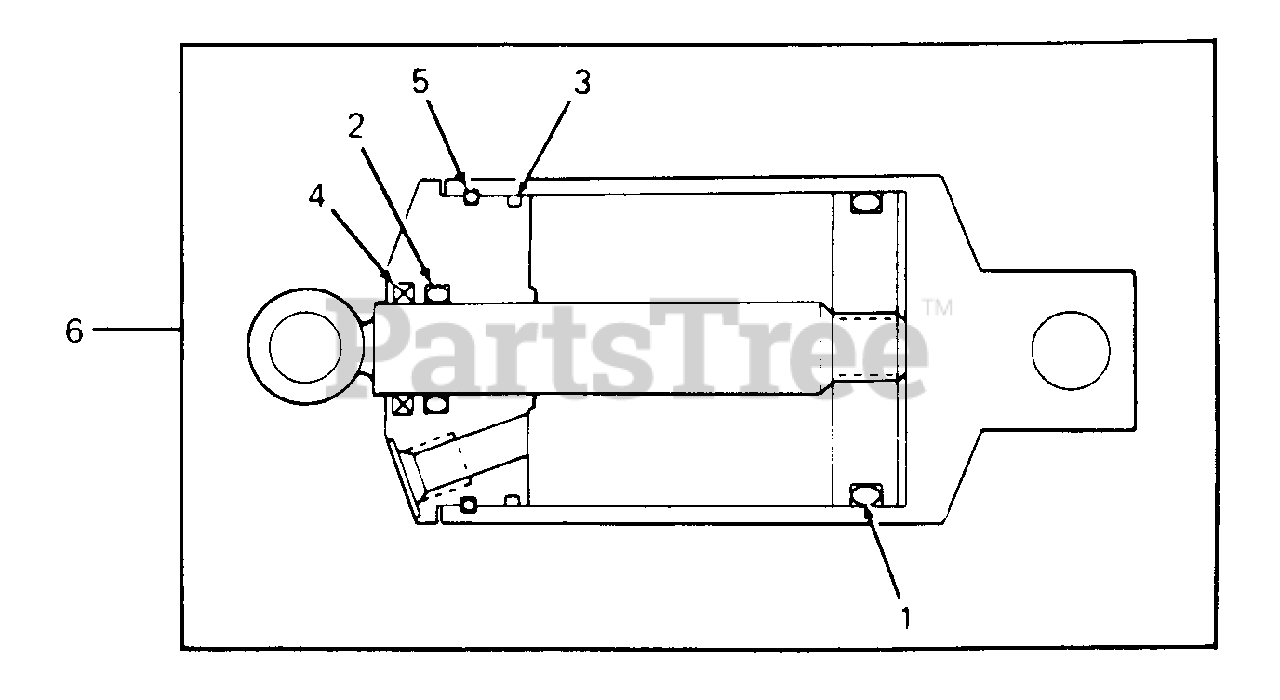

Hydraulic Cylinder Parts Diagram

  • Title

Cub Cadet 759-3431

Kit, Hydraulic Cylinder Seal

Note: (Includes Ref No. 1, 2, 3, 4 & 5)

$

$

Not available

1

O-Ring, 2-1/8 x 2-1/2 x 3/16

$

$

Not available

2

O-Ring, 3/4 x 1 x 1/8

$

$

Not available

3

O-Ring, 2-5/16 x 2-1/2 x 3/32

$

$

Not available

4

Seal, Hydraulic Cylinder Piston Rod Wiper

$

$

Not available

5

Retainer, Hydraulic Cylinder Front Head

$

$

Not available

6

Cub Cadet 717-3005

Cylinder, Hydraulic

$

$

Not available
