2084 (143-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Transmission - Differential Parts Diagram

Super Garden Tractor

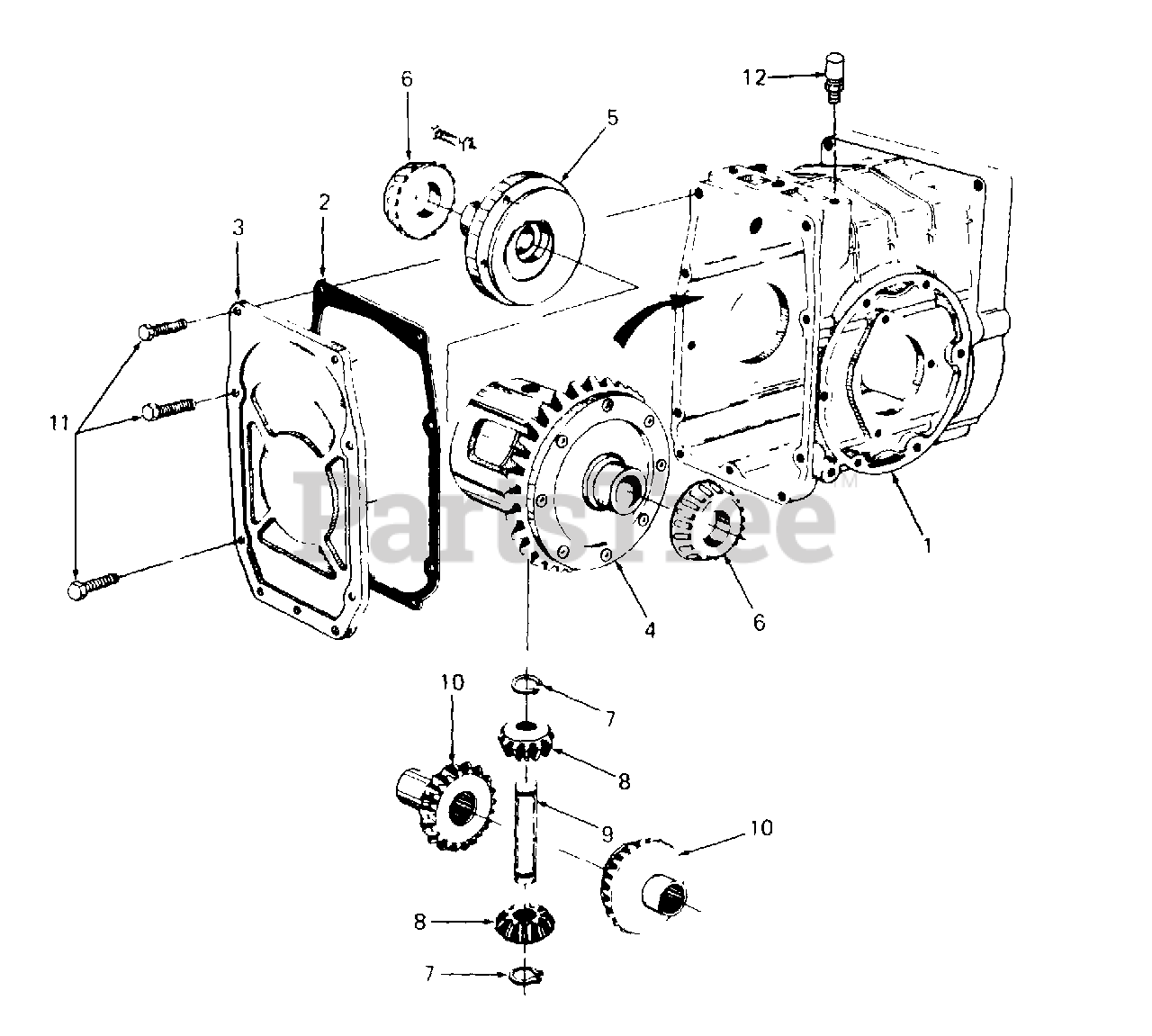

Transmission - Differential Parts Diagram

  • Title

1

Cub Cadet 717-3220A

Housing Assy, Rear Transaxle
(Superseded to 917-3220A)

$

$

Not available

2

Cub Cadet 721-3015

Gasket, Rear Cover
(Superseded to 921-3015)

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet 703-0905

Plate, Rear Cover

$

$

Not available

4

Cub Cadet 717-3217

Gear Assy, Ring w/Case

$

$

Not available

5

Cub Cadet 717-3137

Plate, Differential Flange

$

$

Not available

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0573

Bolt, Hex Patch, 5/16-18 X 1.25 Lg GR5

$6.49

$

In Stock, Qty 12

0

6

Cub Cadet 741-3038

Cone, Roller Brg
(Superseded to 941-3038)

$56.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 716-0133

Ring, Retaining, 11/16

$

$

Not available

8

Cub Cadet 717-3113

Gear, Pinion - 10T

$

$

Not available

9

Cub Cadet 717-3133

Shaft, Cross

$

$

Not available

10

Cub Cadet 717-3112

Gear, Side - 16T

$

$

Not available

11

Cub Cadet 710-3117

Bolt, Hex Patch, 318-16 X .62 Lg GR5

$

$

Not available

12

Cub Cadet 723-3021

Breather

$23.99

$

Usually ships in 3-6 days

0
