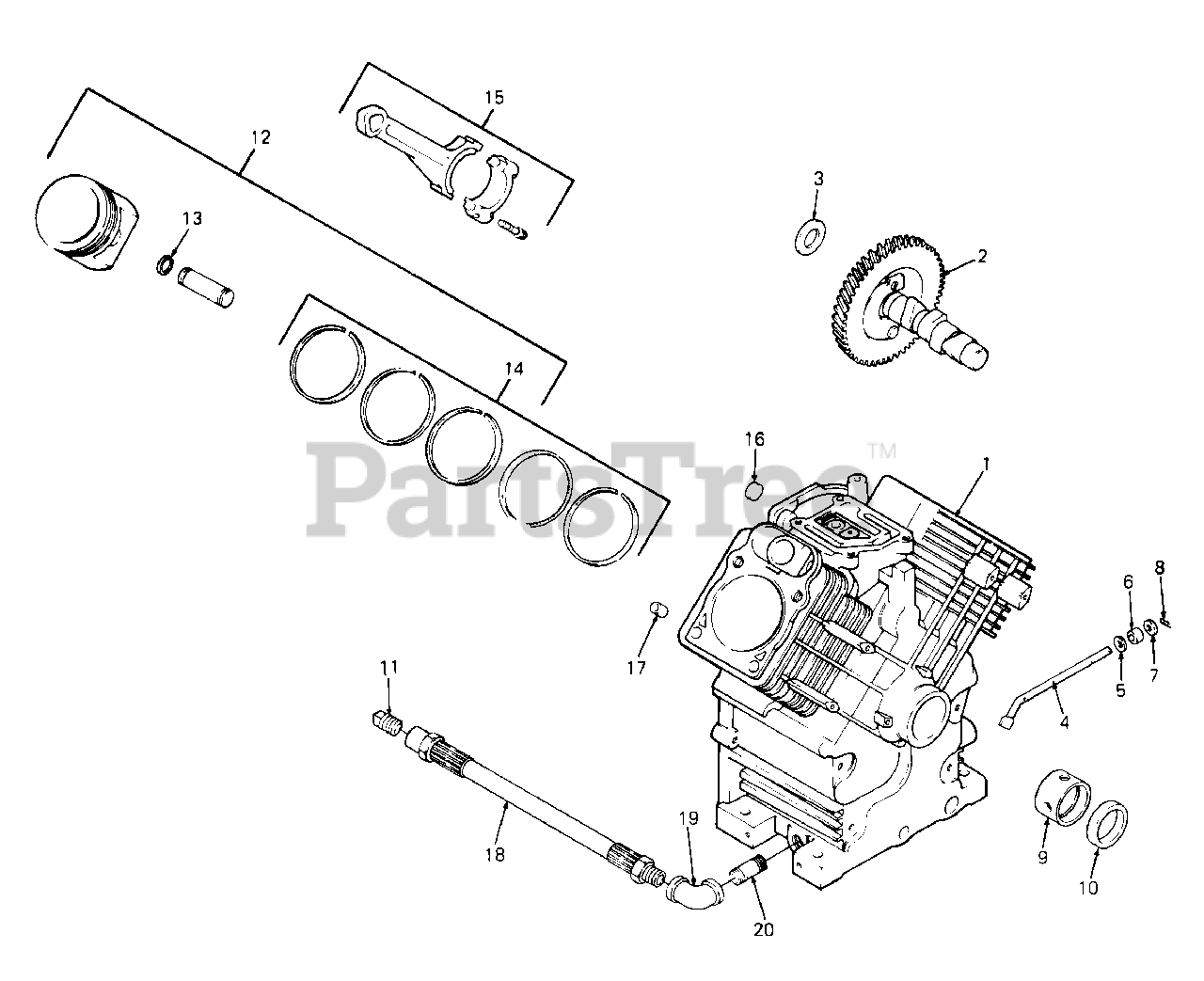

2084 (143-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Crankcase Parts Diagram

Super Garden Tractor

Crankcase Parts Diagram

  • Title

Cub Cadet KH-64509

Engine, Complete

$

$

Currently unavailable

Cub Cadet KH-24-522-04

Short Block
(Superseded to KH-24-522-130)

$2004.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-782-01

Miniblock
(Superseded to KH-24-782-15)

$

$

Not available

1

Cylinder Block

Note: (Use miniblock)

$

$

Not available

2

Cub Cadet KH-24-012-03

Camshaft Assembly
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Spacer, .0280
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

KH-1 2-422-12

Shim, Camshaft, .0380

$

$

Not available

4

Cub Cadet KH-24-144-01

Shaft, Governor Cross

$

$

Not available

5

Cub Cadet KH-X-25-63

Washer

$

$

Not available

6

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

7

Cub Cadet KH-X-25-102

Washer, Plain
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 5

0

8

Cub Cadet KH-12-380-04

Pin, Hitch

$

$

Not available

9

Bearing, Crankshaft

Note: (Not serviceable, order miniblock)

$

$

Not available

10

Cub Cadet KH-24-032-01

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-X-75-10

Plug, Sq Hd Solid, 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

12

Cub Cadet KH-24-874-01

Piston w/Ring Set, Std
(Superseded to KH-24-874-46-S)

$

$

Not available

Cub Cadet KH-24-874-02

Piston w/Ring Set, .010
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-03

Piston w/Ring Set, .020
(Superseded to KH-24-874-49-S)

$

$

Not available

13

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

14

Cub Cadet KH-24-108-01

Ring Set, Std
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-02

Ring Set, .010
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-03

Ring Set, .020
(Superseded to KH-24-108-25-S)

$

$

Not available

15

Cub Cadet KH-24-067-01

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

Cub Cadet KH-24-067-02

Rod, Connecting, .010
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-380-03

Pin, Dowel Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 727-3073

Hose Assy, Hydraulic

$

$

Not available

19

Cub Cadet 737-0272

Elbow, 3/8

$

$

Not available

20

Cub Cadet 737-0199

Nipple, Pipe, 3/8 X 18 NPT
(Superseded to 937-0199)

$

$

Not available

Cub Cadet KH-24-755-03

Gasket Set
(Superseded to KH-24-755-107-S)

$143.99

$

In Stock, only 3 left!

0
