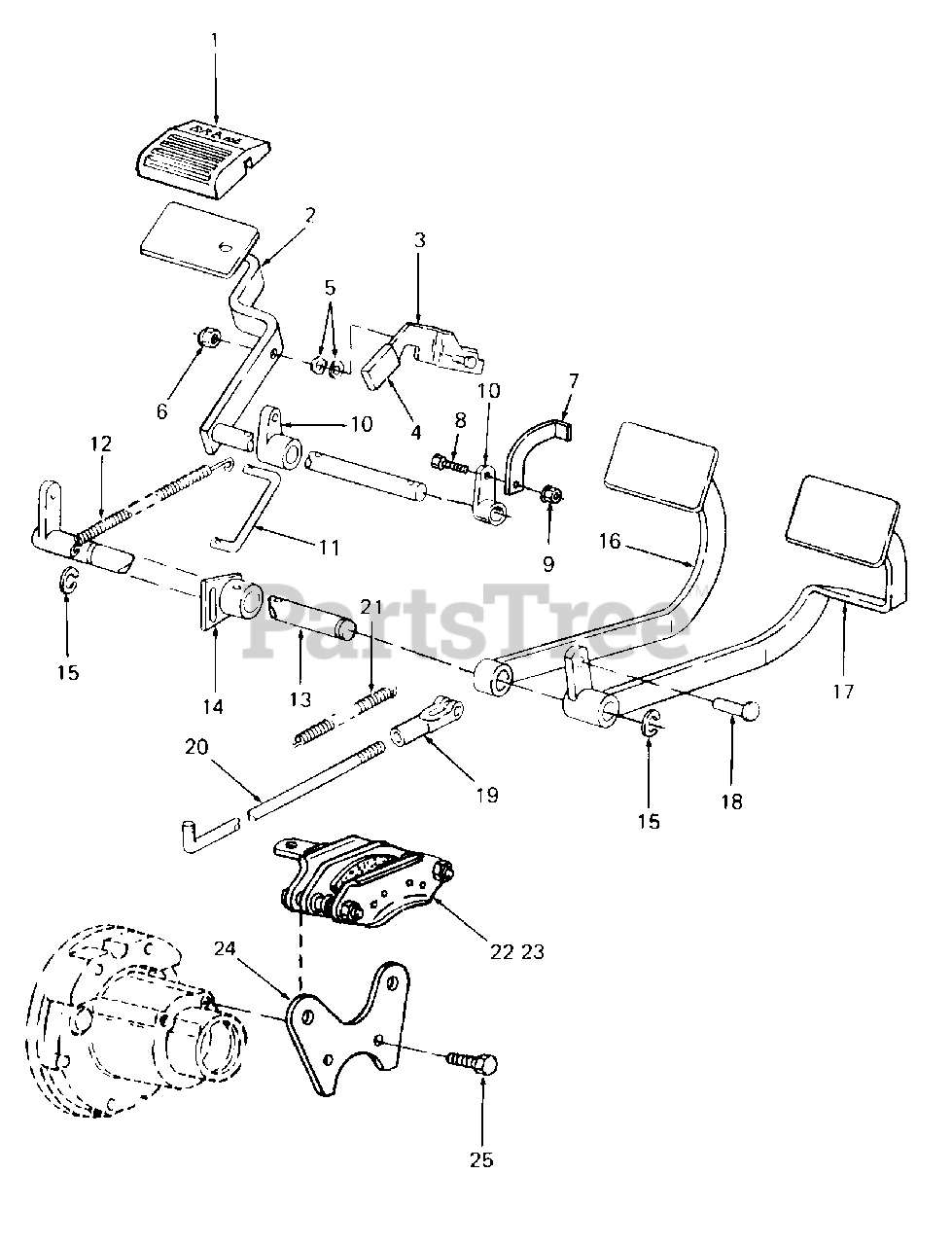

2084 (143-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Brakes & Connections Parts Diagram

Super Garden Tractor

Brakes & Connections Parts Diagram

  • Title
1

Cub Cadet 724-3004

Pad, Brake Pedal
(Superseded to 924-3000)

$19.99

$

In Stock, Qty 9

0

2

Cub Cadet 703-0848

Pedal Assy, Brake

Variations

Cub Cadet 703-0848-0498

PEDAL ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

5

Cub Cadet 736-3001

Washer, Wave, 1/4 Dia

$

$

Not available

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 703-2280

Bracket, Start Switch 1
(Superseded to 703-2280-0637)

Variations

Cub Cadet 703-2280-0498

Start Switch Bracket - OLD CUB YELLOW (0498)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2280-0637

Start Switch Bracket - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X.75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 712-3005

Nut, Hex Flanged Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 748-3006

Lever,Brake

Variations

Cub Cadet 748-3006-0498

BRAKE LEVER ROD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 748-3006-0637

BRAKE LEVER ROD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 748-3006-0685

BRAKE LEVER ROD - CUB BLUE (0685)

$

$

Not available

Cub Cadet 748-3006-0691

BRAKE LEVER ROD - BLACK JACK (0691)

$

$

Not available

Cub Cadet 748-3006-0692

BRAKE LEVER ROD - AGWAY BLUE (0692)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 747-3023

Rod, Center Brake 1

$

$

Not available

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X.75 Lg

$4.49

$

In Stock, Qty 12

0

Cub Cadet 736-0185

Washer, Flat, .406 X.75 X.663 Thk

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 732-3010

Spring, Extension, .50 OD X 7.32 Lg
(Superseded to 932-3010)

$

$

Not available

13

Cub Cadet 703-0223

Shaft Assy, Brake

$

$

Not available

14

Cub Cadet 703-0225

Plate Arm Assy, Parking Brake
(Superseded to 703-0225A)

$

$

Not available

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

15

Cub Cadet 716-3001

Ring, Retaining 2

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 703-0412

Pedal Assy, LH - Brake

Variations

Cub Cadet 703-0412-0498

PEDAL ASSEMBLY (LH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 715-3000

Pin , Spiral Spring, 1/4 Dia X 1.38 Lg

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 703-0416

Pedal Assy, RH - Brake

Variations

Cub Cadet 703-0416-0498

PEDAL ASSEMBLY (RH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 711-3037

Pin, Clevis, 3/8 Dia X 1.56 Lg
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0185

Washer, Flat, .406 X.75 X.063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 719-3013

Clevis, Adjustment

$28.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-3022

Rod, Brake

$

$

Not available

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

21

Cub Cadet 732-3026

Spring, Extension,.66 OD X 3.3 Lg

$

$

Not available

22

Cub Cadet 661-3001

Brake Kit, RH Caliper

Note: (Includes Ref No. 24)

$

$

Not available

23

Cub Cadet 661-3002

Brake Kit, LH Caliper

Note: (Not shown (Includes Ref No. 24))

$

$

Not available

24

Cub Cadet 703-1787

Bracket, Brake Mounting

$

$

Not available

25

Cub Cadet 710-0643

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$6.99

$

In Stock, Qty 5

0
