2084 (143-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Battery & Electrical Components Parts Diagram

Super Garden Tractor

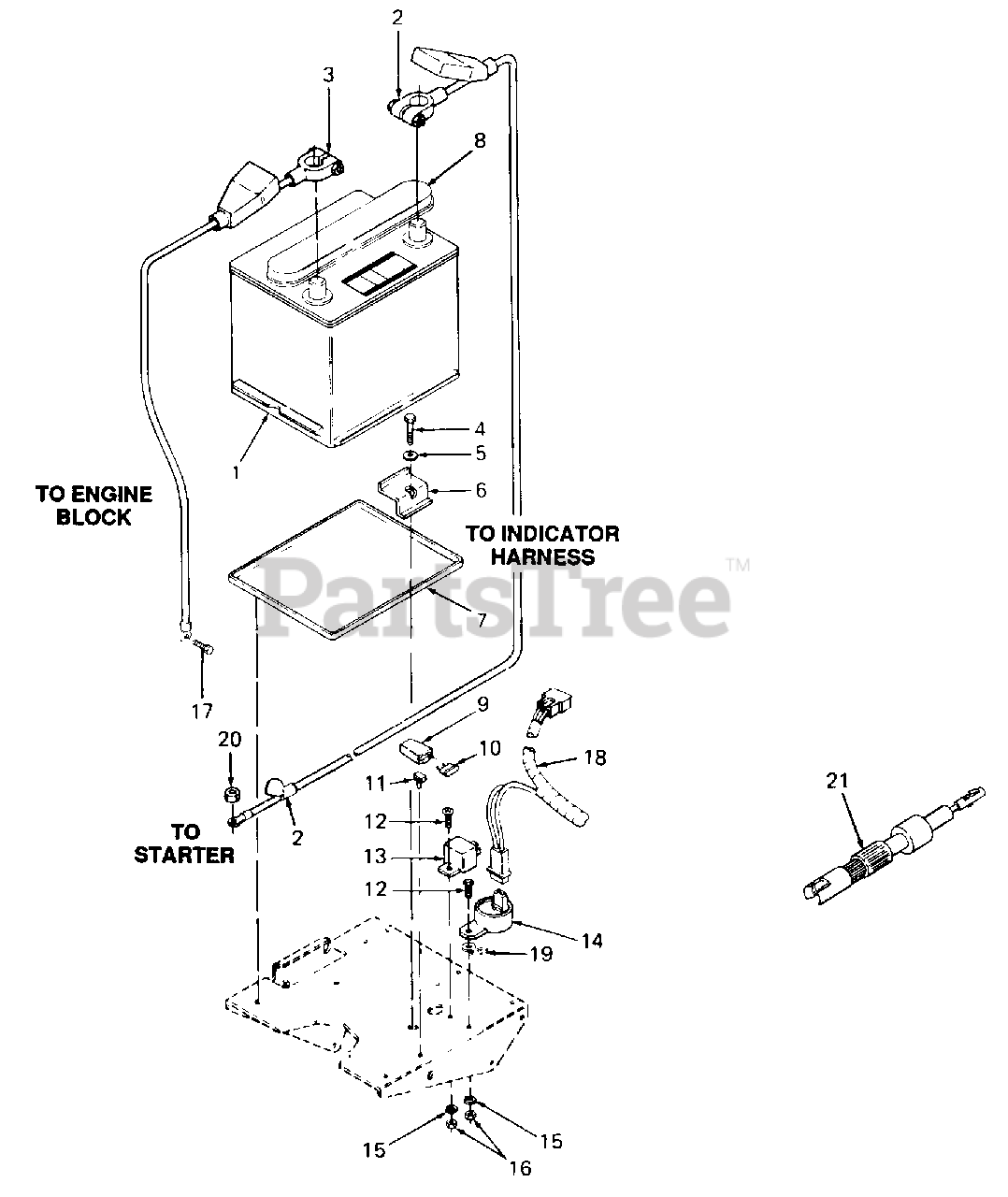

Battery & Electrical Components Parts Diagram

  • Title

1

Cub Cadet 725-3174

Battery
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3220

Cable, Positive Battery

$

$

Not available

3

Cub Cadet 725-3221

Cable, Negative Battery

$

$

Not available

4

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 X 1.38 Lg

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-1823

Hold Down, Battery
(Superseded to 703-1823-0716)

Variations

Cub Cadet 703-1823-0716

Battery Hold-Down - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 731-3105

Tray, Battery

$

$

Not available

8

Cub Cadet 759-3653

Cap, Battery Vent

$

$

Not available

Cub Cadet 759-3654

Battery Vent

$

$

Not available

9

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

10

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

11

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

12

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 X .50 Lg

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$71.99

$

In Stock, Qty 6

0

14

Cub Cadet 725-3165

Indicator, Voltage
(Superseded to 929-3080)

$

$

Not available

15

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0121

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3175

Screw, Hex Cap, M8-1.25 X 14 MM Lg

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-3218

Main Harness

$

$

Currently unavailable

Cub Cadet 726-3049

Strap, Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 725-3147

Lug, Quick Connect

$

$

Not available

20

Cub Cadet 712-3077

Nut, Hex, M8-1.25 GR8.8

$

$

Not available

21

Cub Cadet 759-3675

Diode Assy

Note: (Located in upper connector block of main harness)

$

$

Not available
