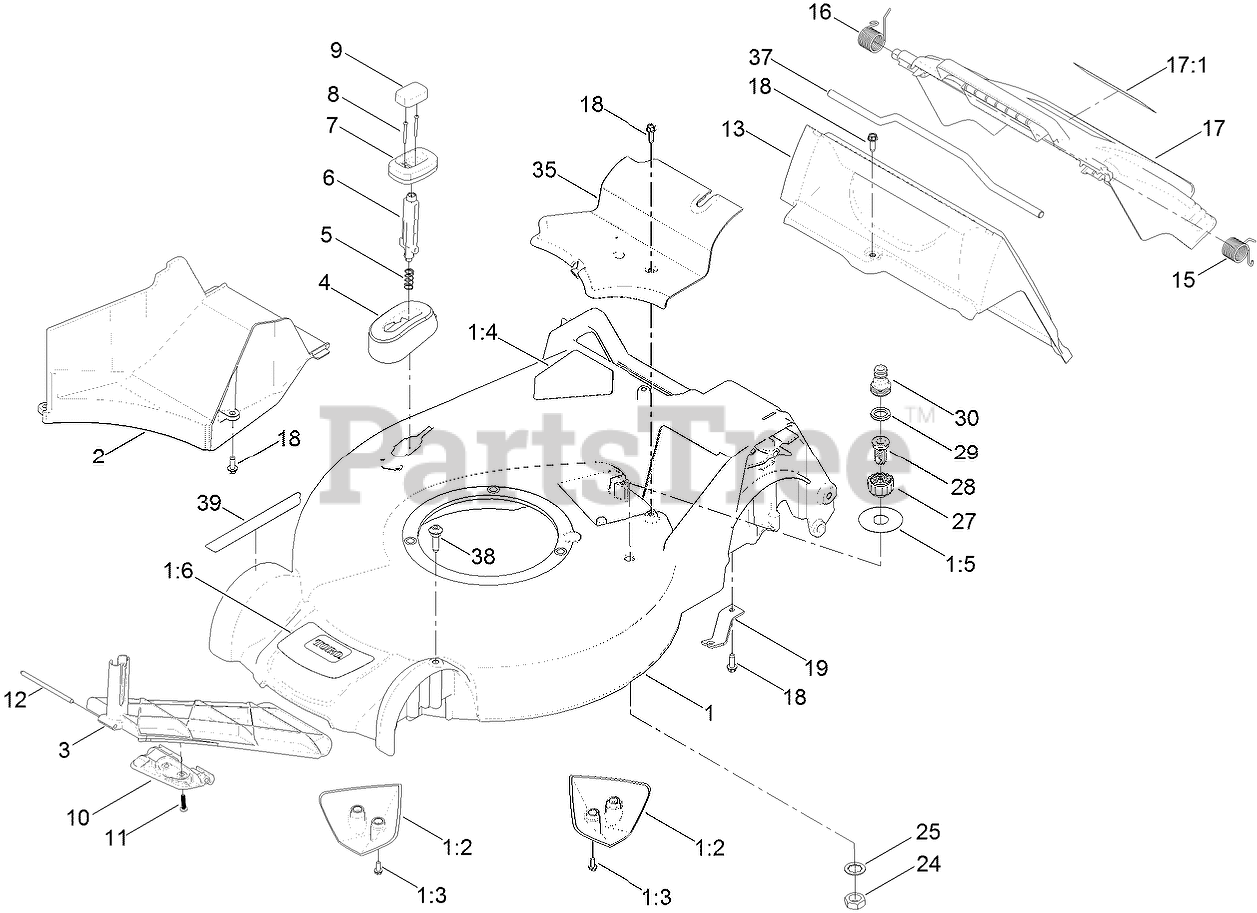

20838 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 410000000 - 999999999) Housing Assembly Parts Diagram

48cm Super Recycler Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title
1

Toro 117-4093

HOUSING ASM

$278.99

$

Usually ships in 3-6 days

0

1:2

Toro 99-6485

KICKER-FRONT

$17.99

$

Usually ships in 3-6 days

0

1:3

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

1:4

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:5

Toro 112-8867

DECAL-PORT, WASHOUT
(Superseded to 137-9196)

$2.49

$

In Stock, only 2 left!

0

1:6

Toro 120-3908

DECAL-DECK, SUPER RECYCLER

$8.99

$

Usually ships in 3-6 days

0

2

Toro 117-4063

RAMP-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

3

Toro 117-4064

DOOR-RECYCLE

$17.99

$

Usually ships in 3-6 days

0

4

Toro 117-4065

COVER-DOOR, RECYCLE

$8.49

$

Usually ships in 3-6 days

0

5

Toro 117-1031

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

6

Toro 110-7129

LATCH-RECYCLE

$

$

Currently unavailable

7

Toro 110-7136

HOUSING-KNOB

$

$

Currently unavailable

8

Toro 110-7143

SCREW-TORX, PAN HEAD

$

$

Currently unavailable

9

Toro 119-2254

KNOB-RECYCLE

$2.99

$

Usually ships in 3-6 days

0

10

Toro 119-2262

HINGE-DOOR, RECYCLE

$9.49

$

Usually ships in 3-6 days

0

11

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 7

0

12

Toro 119-2263

PIN-HINGE

$5.49

$

Usually ships in 3-6 days

0

13

$38.99

$

In Stock, only 1 left!

0

15

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

16

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

17

Toro 117-4085

REAR DOOR ASM

$47.99

$

Usually ships in 3-6 days

0

17:1

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

19

Toro 117-9385

BRACKET-CABLE, TRACTION
(Superseded to 138-3230)

$9.99

$

Usually ships in 3-6 days

0

24

Toro 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

25

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 2 left!

0

27

Toro 112-6401

COUPLING-HOSE, WASHOUT PORT

$2.99

$

In Stock, only 1 left!

0

28

Toro 112-6400

PORT-WASHOUT

$4.99

$

In Stock, only 1 left!

0

29

Toro 112-6438

WASHER-SEAL, WASHOUT PORT

$1.99

$

In Stock, only 3 left!

0

30

Toro 112-6437

ADAPTER-CONNECT, QUICK

$12.99

$

Usually ships in 3-6 days

0

35

Toro 117-4062

COVER-BELT

$17.99

$

Usually ships in 3-6 days

0

37

Toro 117-9378

ROD-DEFLECTOR

$36.99

$

Usually ships in 3-6 days

0

38

Toro 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, only 2 left!

0

39

Toro 119-2283

DECAL-HOC

$7.49

$

Usually ships in 3-6 days

0
