20838 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 400000000 - 401699999) TRANSMISSION ASSEMBLY Parts Diagram

48cm Super Recycler Walk-Behind Mower

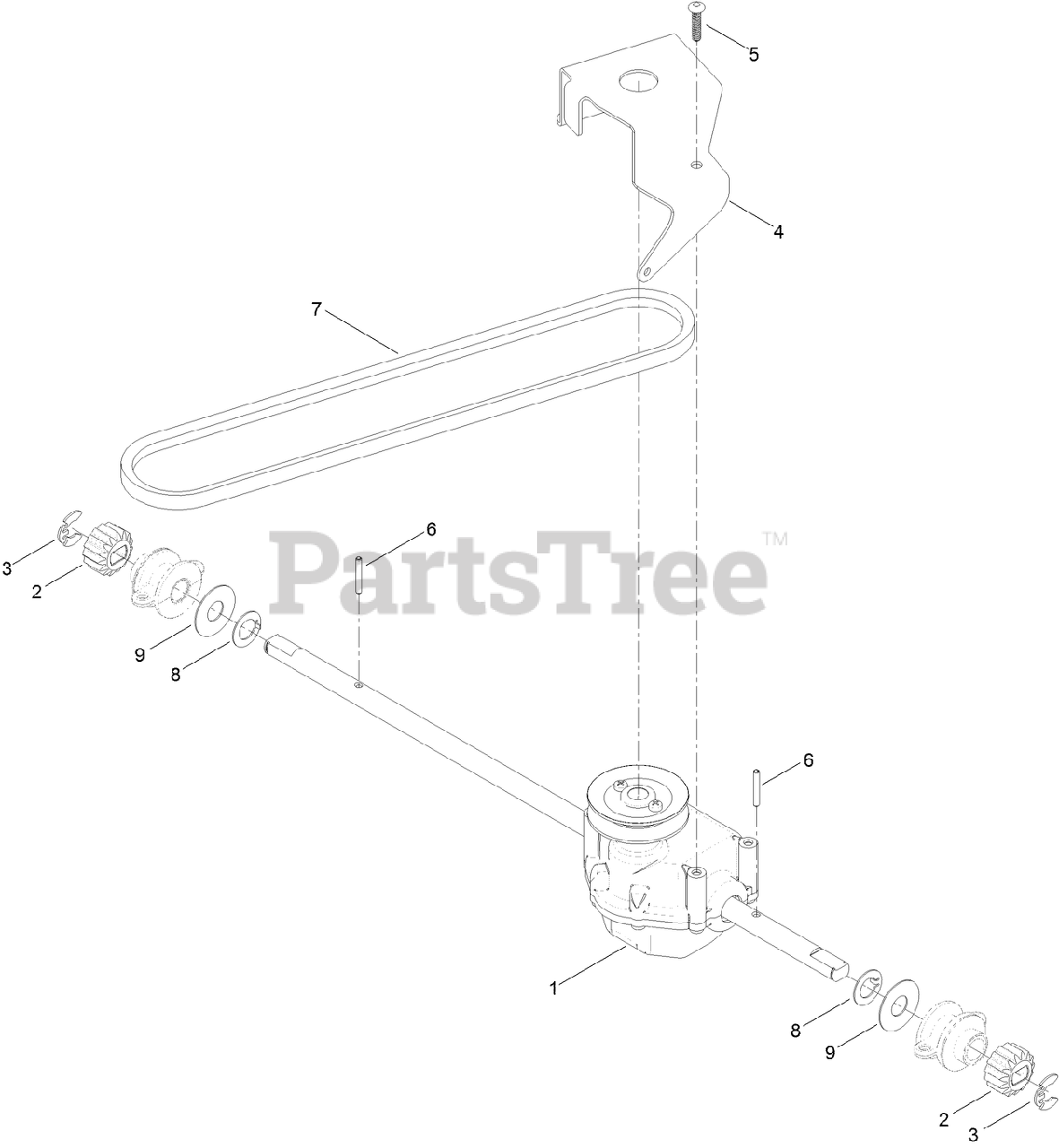

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 117-4086

TRANSMISSION-GEARBOX

$131.99

$

Usually ships in 3-6 days

0

2

Toro 131-5399

GEAR-PINION, 15T

$5.49

$

In Stock, Qty 20+

0

3

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

4

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

5

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

6

Toro 110-7192

PIN-ROLL

$

$

Currently unavailable

7

Toro 110-9429

V-BELT

$17.99

$

In Stock, Qty 20+

0

8

Toro 112-3911

WASHER-THRUST, KEYED

$18.99

$

Usually ships in 3-6 days

0

9

Toro 110-7179

WASHER-PLAIN

$

$

Currently unavailable
