20837 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

48cm Super Recycler Walk-Behind Mower

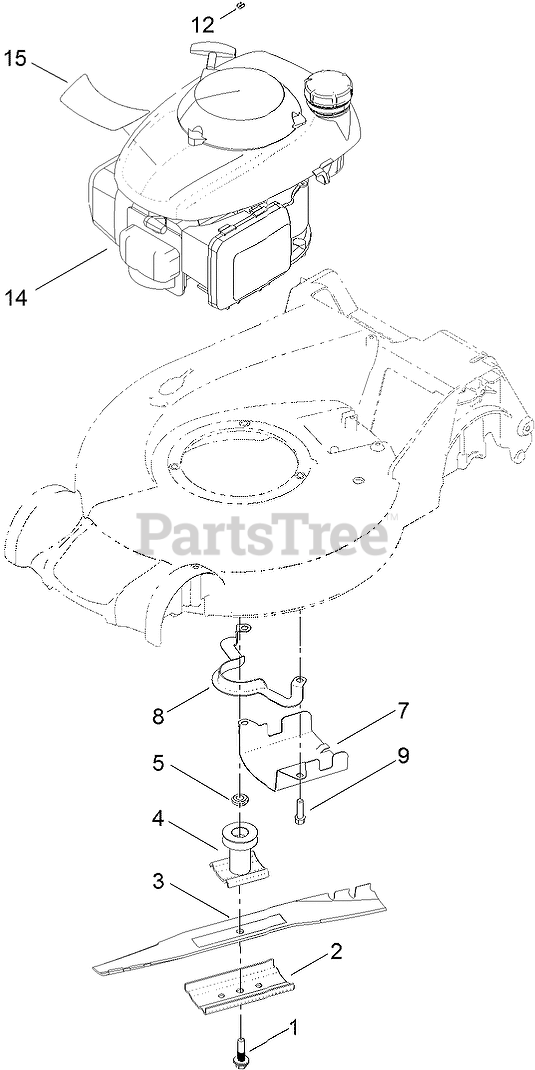

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5270

BOLT-BLADE

$

$

Not available

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Toro 110-7080

BLADE

$

$

Currently unavailable

4

Toro 114-2774

DRIVER-BLADE

$34.99

$

In Stock, only 1 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

7

Toro 107-7489-03

SHIELD-GRASS

$17.99

$

In Stock, only 1 left!

0

8

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

9

Toro 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

12

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

14

ENGINE-HONDA, GCV160A0-S3TE

Note: Obtain parts from www.honda-engines.com

$

$

Not available

14

ENGINE-HONDA, GCV160A0-S3TE

Note: Not serviced separately

$

$

Not available

15

Toro 120-1949

DECAL-ENGINE

$17.99

$

Usually ships in 3-6 days

0
