20836 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

48cm Super Recycler Walk-Behind Mower

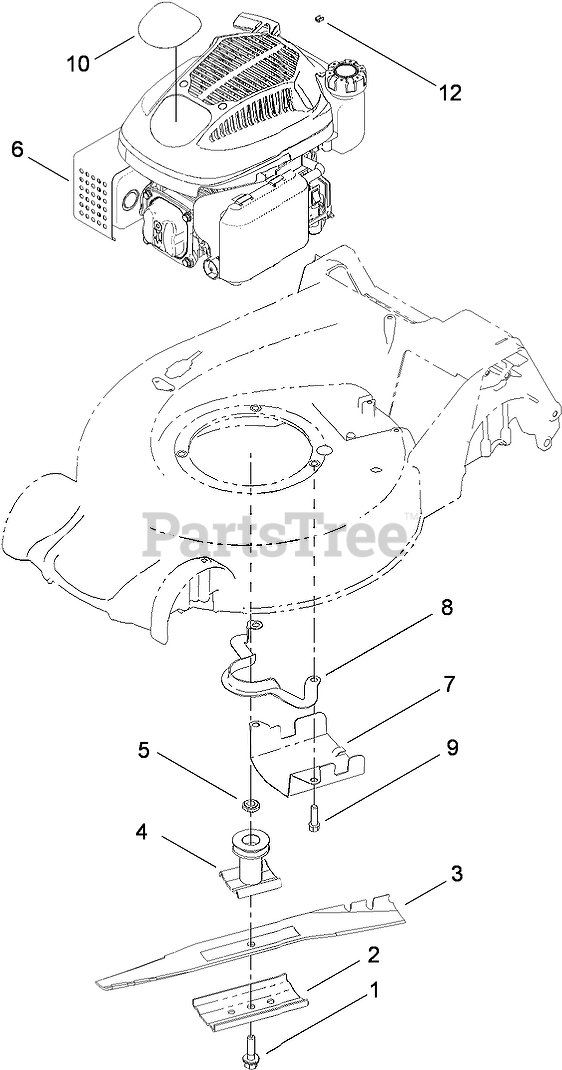

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

$

$

Currently unavailable

4

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, Qty 19

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Toro 119-1900

ENGINE-LC1P65FA

$465.99

$

Usually ships in 3-6 days

0

7

Toro 107-7489-03

SHIELD-GRASS

$17.99

$

In Stock, only 1 left!

0

8

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

9

Toro 92-1648

SCREW-MOUNT, ENGINE
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

10

Toro 119-2264

DECAL-ENGINE

$

$

Not available

12

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0
