20835 - Toro 48cm Super Bagger Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY NO. 119-1900 Parts Diagram

48cm Super Bagger Walk-Behind Mower

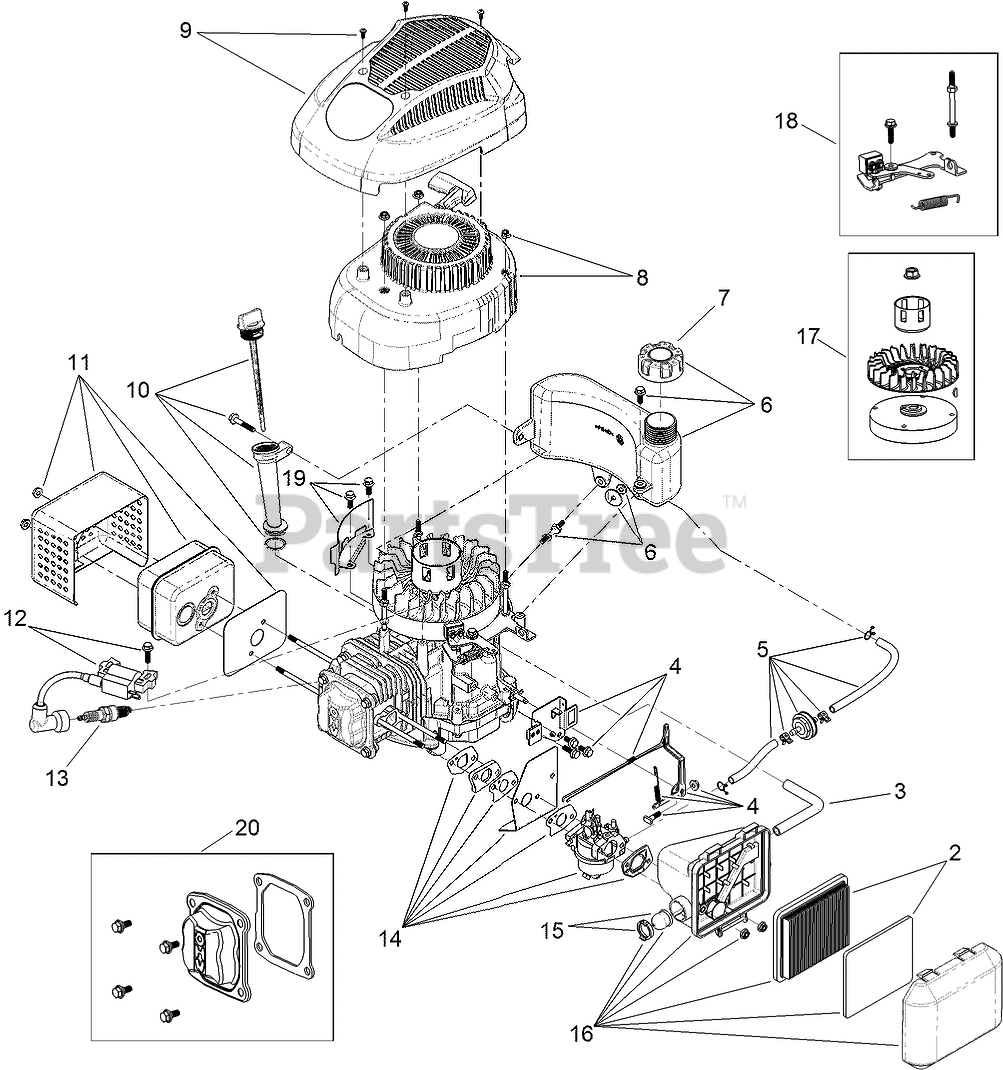

ENGINE ASSEMBLY NO. 119-1900 Parts Diagram

  • Title
2

Toro 119-1909

AIR FILTER AND PREFILTER KIT

$19.99

$

In Stock, Qty 20+

0

3

Toro 119-1902

TUBE-BREATHER

$4.49

$

Usually ships in 3-6 days

0

4

Toro 119-1918

GOVERNOR ARM KIT (SPRING AND LINK)
(Superseded to 119-1968)

$27.99

$

In Stock, only 1 left!

0

5

Toro 120-4400

FUEL LINE KIT
(Superseded to 121-4198)

$14.99

$

In Stock, only 3 left!

0

6

Toro 119-1915

FUEL TANK KIT (CAP AND HARDWARE)

$95.99

$

Usually ships in 3-6 days

0

7

Toro 119-1914

CAP-FUEL
(Superseded to 121-4253)

$21.99

$

In Stock, only 4 left!

0

8

Toro 119-1904

SHROUD AND RECOIL ASM

$68.99

$

In Stock, only 1 left!

0

9

Toro 119-1905

STYLING SHROUD KIT

$

$

Not available

10

Toro 119-1903

DIPSTICK AND FILL TUBE KIT
(Superseded to 121-4279)

$18.99

$

Usually ships in 3-6 days

0

11

Toro 119-1913

MUFFLER KIT (HEAT SHIELD AND GASKETS)

$

$

Not available

12

Toro 119-1908

IGNITION AND HARDWARE KIT

$60.99

$

Usually ships in 3-6 days

0

13

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.99

$

In Stock, Qty 20+

0

14

Toro 120-4420

COMPLETE CARB SERVICE KIT

$124.99

$

Usually ships in 3-6 days

0

14

Toro 120-4405

CARBURETOR REPAIR KIT
(Superseded to 127-9146)

$25.99

$

In Stock, only 2 left!

0

15

Toro 119-1911

PRIMER BULB AND BASE KIT

$16.99

$

Usually ships in 3-6 days

0

16

Toro 121-0429

KIT-AIR CLEANER ASM, PRIMER, 2 HINGE

$81.99

$

Usually ships in 3-6 days

0

17

Toro 119-1970

FLYWHEEL AND FAN KIT

$101.99

$

Usually ships in 3-6 days

0

18

Toro 119-1991

BRAKE ASM RECOIL KIT

$43.99

$

Usually ships in 3-6 days

0

19

Toro 119-1994

FLYWHEEL SHIELD KIT

$12.99

$

Usually ships in 3-6 days

0

20

Toro 121-0492

VALVE COVER KIT

$23.99

$

In Stock, only 1 left!

0

21

Toro 119-1917

KIT-COMPLETE GASKET SEAL AND O-RING

Note: Not illustrated

$93.99

$

Usually ships in 3-6 days

0
