20833 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) HANDLE AND CONTROL ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

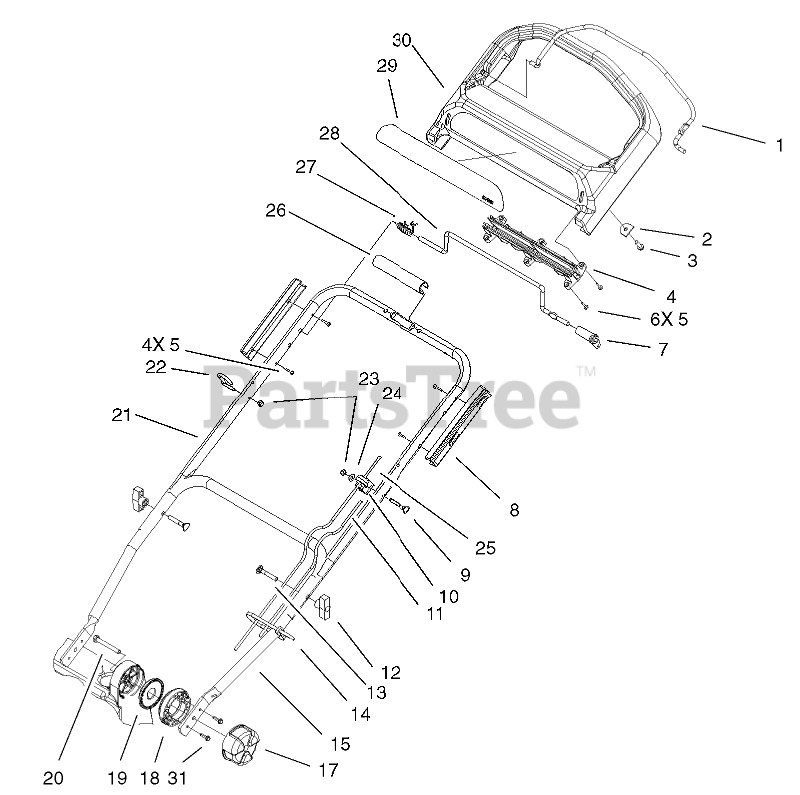

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 99-1593-03

BAIL-BRAKE

$

$

Not available

2

Toro 99-1595

RETAINER-CABLE, BRAKE
(Superseded to 106-2662)

$19.99

$

In Stock, Qty 5

0

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 99-6008

RETAINER-CONTROL ROD, TRACTION

$36.99

$

Usually ships in 3-6 days

0

5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

8

Toro 99-1590

GUIDE-HANDLE, CONTROL

$16.99

$

In Stock, only 3 left!

0

9

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

10

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 7

0

11

Toro 100-3936

CABLE-TRACTION

$42.99

$

In Stock, Qty 6

0

12

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

13

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 2 left!

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 100-1502-05

HANDLE-LOWER

$

$

Not available

17

Toro 100-4396

KNOB-ADJUSTING, HANDLE

$

$

Not available

18

Toro 104-7553-03

DISK-ADJUSTING, HANDLE

$

$

Not available

19

Toro 100-1517

DISK-HOLDING, HANDLE

$

$

Not available

20

Toro 60-6690

CAPSCREW

$0.99

$

Usually ships in 3-6 days

0

21

Toro 99-1596-05

HANDLE-UPPER

$90.99

$

Usually ships in 3-6 days

0

22

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

23

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

24

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 100-3937

CABLE-BRAKE

$74.99

$

Usually ships in 3-6 days

0

26

Toro 100-5970

COVER-HANDLE

$

$

Not available

27

Toro 99-1592

SPRING-TORSION, RH

$11.99

$

In Stock, only 2 left!

0

28

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

29

Toro 100-5950

DECAL-AUTOMATIC

$

$

Not available

30

Toro 99-1582

HANDLE-CONTROL

$

$

Not available

31

Toro 100-4351

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0
