20832 - Toro 48cm Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) HOUSING ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

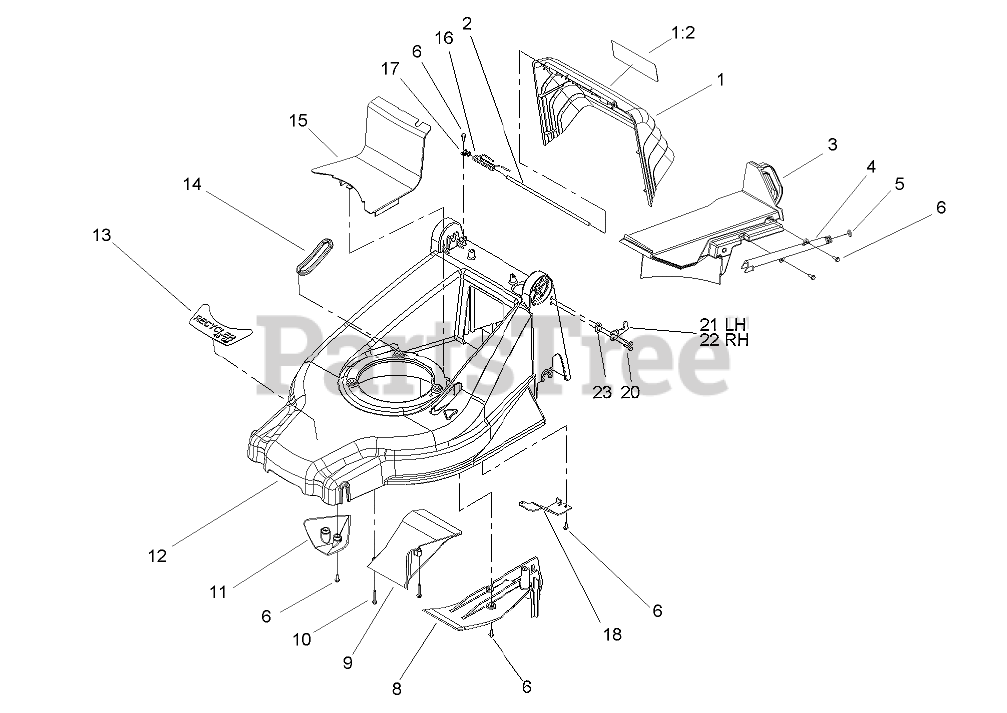

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9115

DOOR ASM

$96.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

2

Toro 100-1509

ROD-PIVOT

$6.49

$

Usually ships in 3-6 days

0

3

Toro 100-1505

PLUG-KICKER, RECYCLER

$

$

Not available

4

Toro 100-1522

FITTING-WASHOUT

$19.99

$

Usually ships in 3-6 days

0

5

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

8

Toro 99-6486

COVER-KICKER, REAR

$

$

Not available

9

Toro 100-1506

RAMP-DISCHARGE

$24.99

$

Usually ships in 3-6 days

0

10

Toro 100-4352

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

11

Toro 99-6485

KICKER-FRONT

$17.99

$

Usually ships in 3-6 days

0

12

Toro 104-7579

DECK

$

$

Not available

13

Toro 107-2242

DECAL-RECYCLER

$

$

Not available

14

Toro 100-3932

BOOT-HOC

$

$

Not available

15

Toro 99-6479

COVER-BELT

$28.99

$

Usually ships in 3-6 days

0

16

Toro 104-7594

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

17

Toro 98-2256

CLAMP

$5.49

$

Usually ships in 3-6 days

0

18

Toro 100-9123-03

BRACKET-DECK

$

$

Not available

20

Toro 100-4351

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

21

Toro 104-7557

HOOK-LEFT

$

$

Not available

22

Toro 104-7558

HOOK-RIGHT

Note: Not illustrated

$

$

Not available

23

Toro 104-7556

SPACER

$8.49

$

Usually ships in 3-6 days

0
