20832 - Toro 48cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) GEAR CASE AND COVER ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

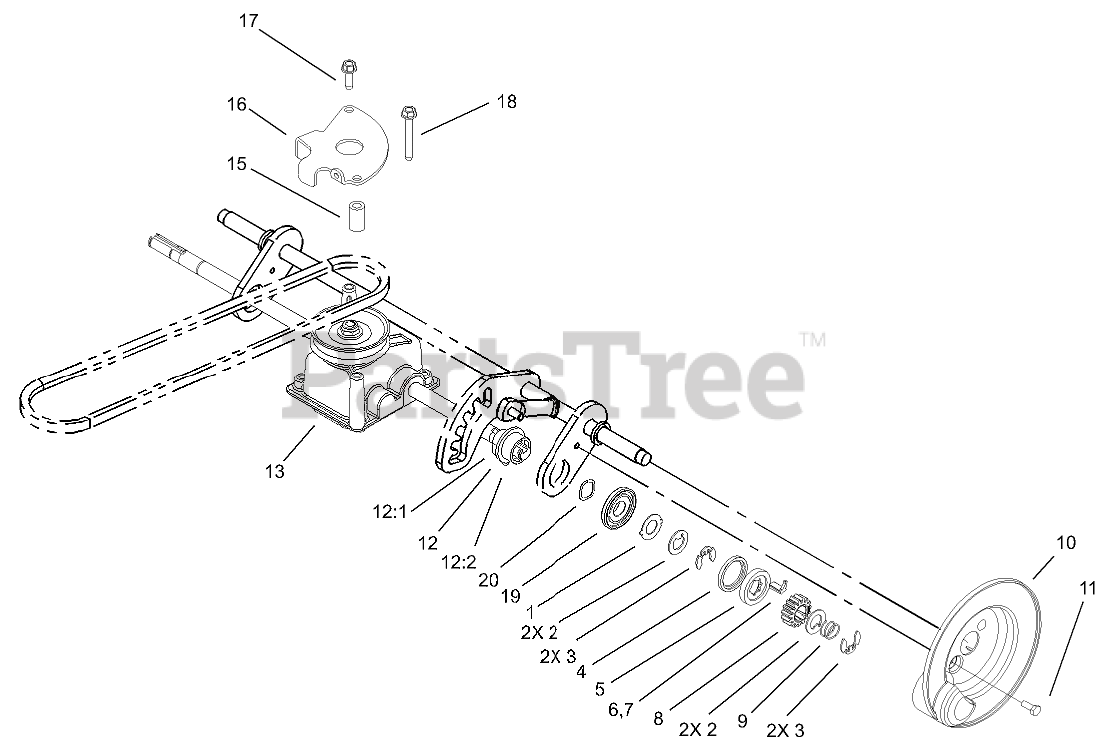

GEAR CASE AND COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, only 3 left!

0

2

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, only 2 left!

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 6

0

4

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 5

0

5

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

6

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 12

0

7

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

8

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

9

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-1513

COVER-GEAR

$24.99

$

Usually ships in 3-6 days

0

11

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

12

Toro 100-9118

BUSHING ASM

$21.99

$

Usually ships in 3-6 days

0

12:1

Toro 99-6463

BUSHING

$

$

Not available

12:2

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

13

Toro 104-7593

GEAR CASE ASM

$

$

Not available

15

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

16

Toro 100-1524-03

GUIDE-TRANSMISSION

$11.99

$

Usually ships in 3-6 days

0

17

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

18

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

19

Toro 100-1511

RETAINER-RING

$

$

Not available

20

Toro 100-1515

WASHER-WAVE

$12.99

$

Usually ships in 3-6 days

0
