20832 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) GASKET ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

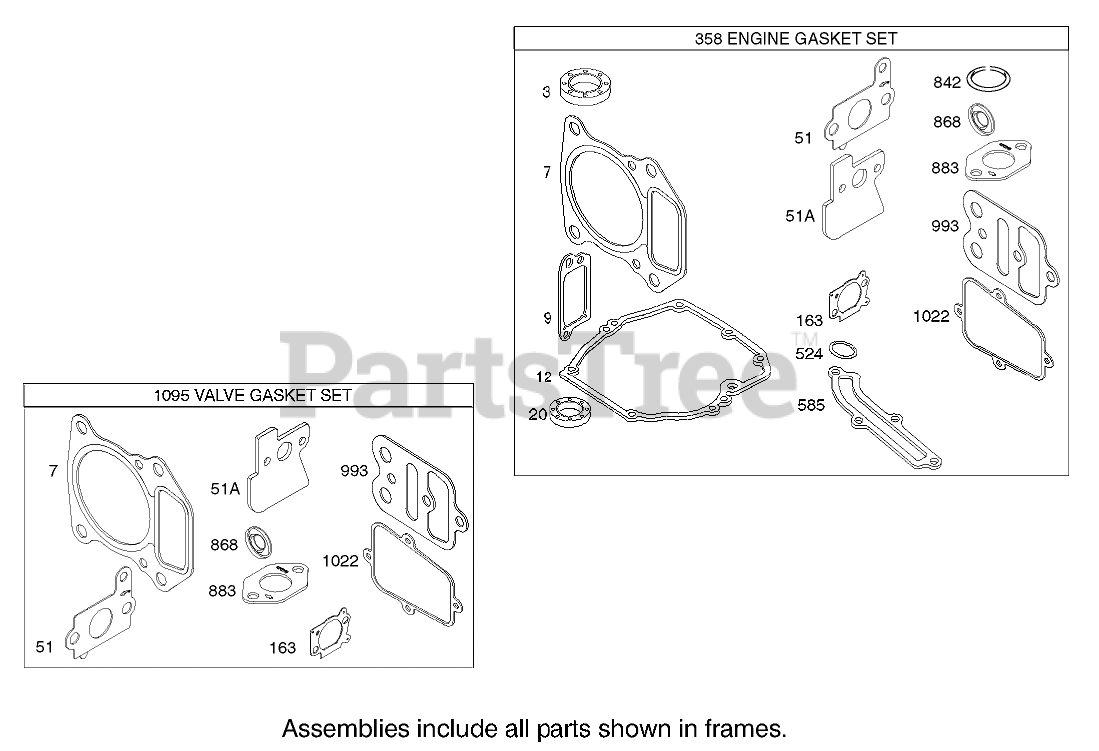

GASKET ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 13

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Engine Gasket Set-Ref. 358.

$9.99

$

In Stock, Qty 5

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Valve Gasket Set-Ref. 1095.

$9.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, only 2 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$14.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$14.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$14.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Valve Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, Qty 5

0

358

Briggs & Stratton 694090

Gasket Set?Engine
(Superseded to 795442)

$90.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 2 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Valve Gasket Set-Ref. 1095.

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, only 2 left!

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set-Ref. 1095.

$7.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 694091

Gasket Set?Valve
(Superseded to 795441)

$70.99

$

Usually ships in 2-12 days

0
