20831 - Toro 48cm Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) HEIGHT-OF-CUT AND WHEEL ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

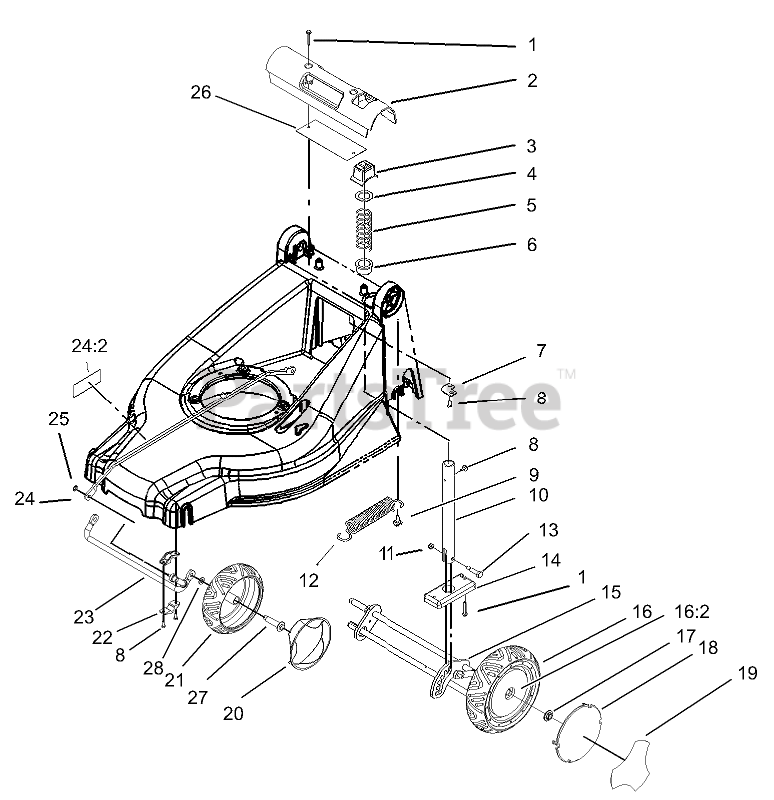

HEIGHT-OF-CUT AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 100-4352

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 99-6487

HANDLE-DECK

$

$

Not available

3

Toro 99-6480

BUTTON-HOC

$19.99

$

Usually ships in 3-6 days

0

4

Toro 88-7540

WASHER-BACKUP

$1.99

$

In Stock, Qty 5

0

5

Toro 99-6481

SPRING-COMPRESSION, HOC

$

$

Not available

6

Toro 99-6483

BUSHING-HOC

$

$

Not available

7

Toro 100-1525

BRACKET-CABLE, TRACTION

$

$

Not available

8

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

9

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 99-6458

PIPE-HOC

$

$

Not available

11

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

12

Toro 100-4384

SPRING-EXTENSION, HOC

$

$

Not available

13

Toro 99-6459

BOLT-SHOULDER

$

$

Not available

14

Toro 99-6460

PLATE-SUPPORT, HOC

$24.99

$

Usually ships in 3-6 days

0

15

Toro 99-6478

REAR AXLE ASM
(Superseded to 117-9381)

$

$

Not available

16

Toro 99-6471

WHEEL AND TIRE ASM

$85.99

$

Usually ships in 3-6 days

0

16:1:2

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

17

Toro 100-4370

NUT-LOCK, FLANGED
(Superseded to 108-8890)

$8.99

$

Usually ships in 3-6 days

0

18

Toro 100-4366

COVER-WHEEL, SMART

$

$

Not available

19

Toro 100-9114

DECAL-SMART WHEEL

$12.99

$

Usually ships in 3-6 days

0

20

Toro 95-6543

COVER-WHEEL

$4.49

$

Usually ships in 3-6 days

0

21

Toro 99-6470

WHEEL ASM

$

$

Not available

22

Toro 100-1500

MOUNT-AXLE, FRONT

$6.99

$

Usually ships in 3-6 days

0

23

Toro 104-7562

FRONT AXLE ASM

$

$

Not available

24

Toro 100-9116

ROD ASM

$

$

Not available

24:2

Toro 100-4355

DECAL-HOC

$

$

Not available

25

Toro 100-3939

PALNUT

$2.99

$

Usually ships in 3-6 days

0

26

Toro 100-4383-03

COVER-HANDLE

$

$

Not available

27

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

28

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0
