20831 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

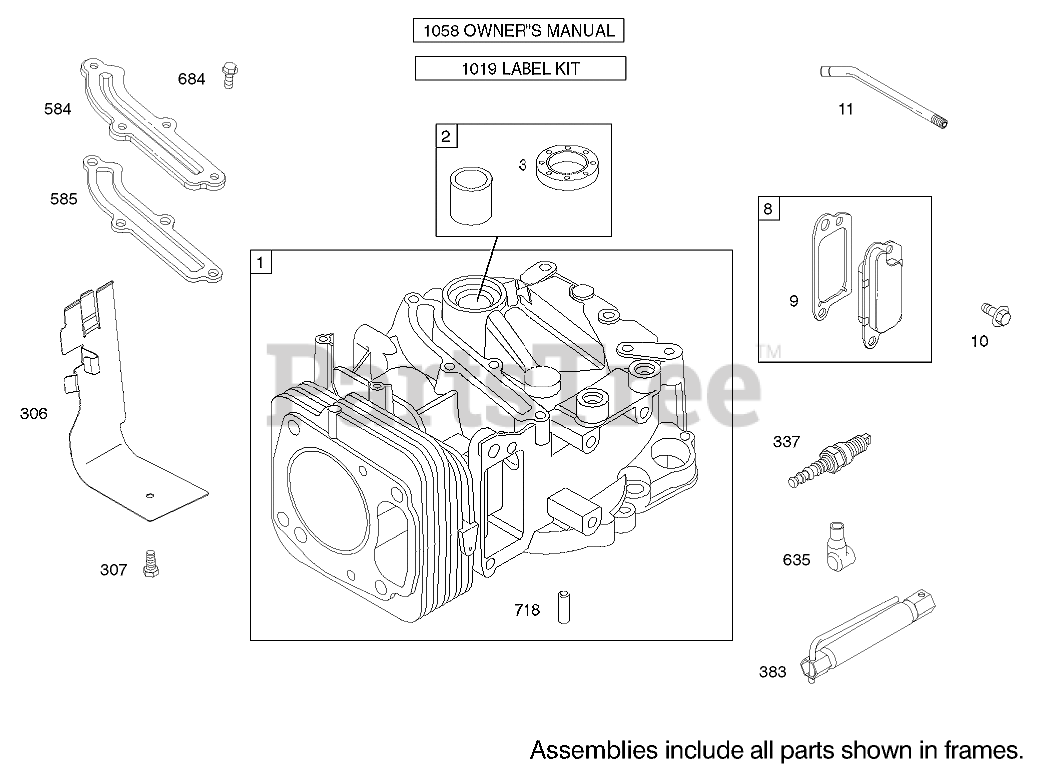

CYLINDER ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

  • Title

1

Briggs & Stratton 499678

Cylinder Assembly
(Superseded to 790363)

$219.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 17

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691260

Tube?Breather
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 691232

Shield?Cylinder

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Sparkplug
(Superseded to RC12YC)

$3.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

584

Briggs & Stratton 692342

Cover?Breather Passage
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

684

Briggs & Stratton 690345

Screw

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 695811

Label Kit

$36.99

$

Usually ships in 2-12 days

0

1058

Toro 274979

Manual-Owner's

$

$

Currently unavailable
