20828 - Toro 48cm Recycler Walk-Behind Mower (SN: 210001001 - 210999999) (2001) CARBURETOR OVERHAUL KIT ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

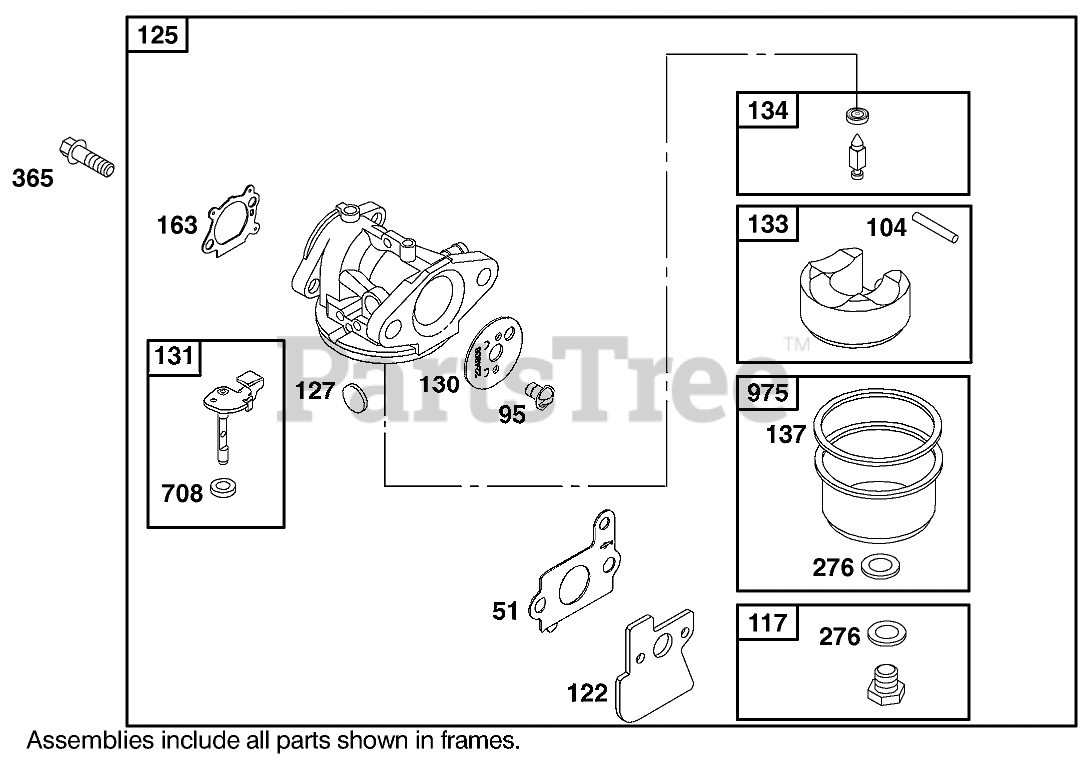

CARBURETOR OVERHAUL KIT ASSEMBLY Parts Diagram

  • Title

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

95

Toro 99-0969

SCREW-SPH

$8.99

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

117

Toro 99-0971

JET-MAIN

$

$

Not available

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-See Ref. 977

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Engine Gasket Set-See Ref. 358

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Gasket Set-See Ref. 1095

$46.99

$

Usually ships in 3-6 days

0

125

Toro 99-0973

CARBURETOR

$

$

Not available

127

Toro 100-9107

PLUG-WELCH

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

130

Toro 99-0974

VALVE-THROTTLE

$12.99

$

Usually ships in 3-6 days

0

131

Toro 99-0975

SHAFT-THROTTLE

$33.99

$

Usually ships in 3-6 days

0

133

Toro 77-8170

FLOAT-CARBURETOR

$33.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$24.99

$

Usually ships in 3-6 days

0

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$8.49

$

In Stock, only 3 left!

0

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Gasket Set-See Ref. 977

$8.49

$

In Stock, only 3 left!

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Engine Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Valve Gasket Set-See Ref. 1095

$4.49

$

In Stock, Qty 20+

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.49

$

In Stock, Qty 20+

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$7.49

$

In Stock, Qty 20+

0

365

Toro 99-0972

SCREW-SHOULDER

$

$

Not available

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

975

Toro 99-0977

BOWL-FLOAT

$

$

Not available
