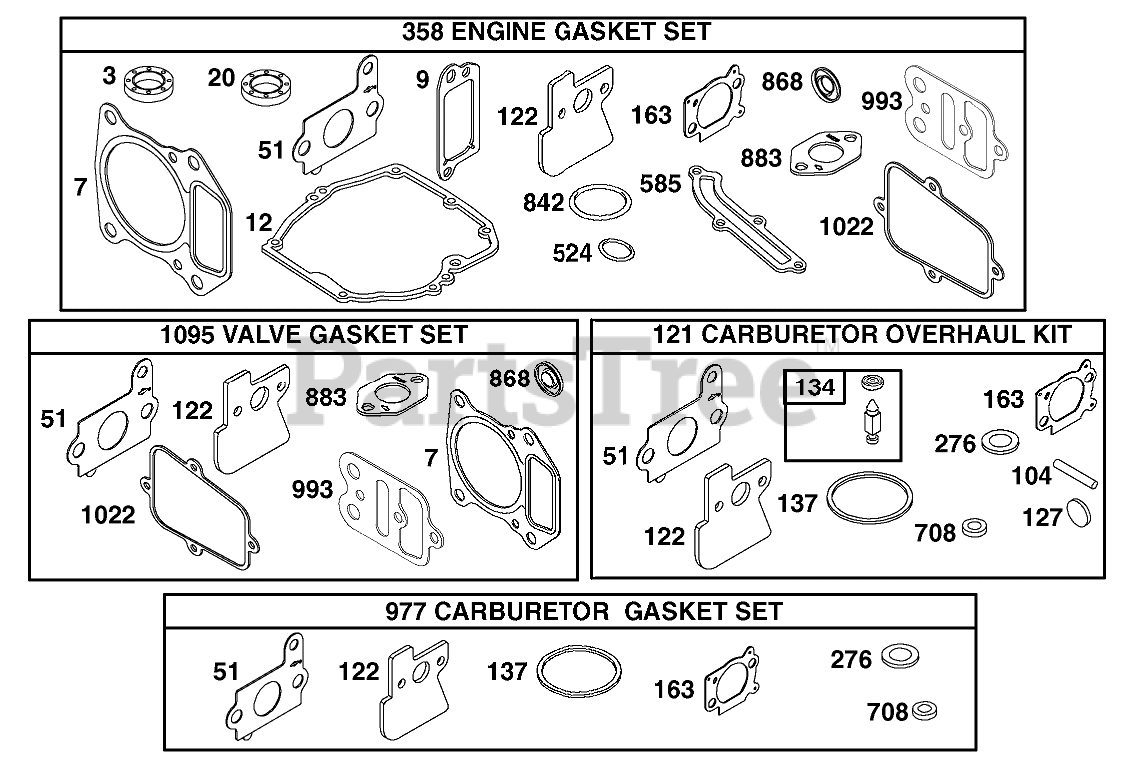

20827 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 123607-0153-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 123607-0153-E1 Parts Diagram

  • Title

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Engine Gasket Set-See Ref. 358

$4.49

$

Usually ships in 3-6 days

0

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Engine Gasket Set-See Ref. 358

$20.99

$

Usually ships in 3-6 days

0

1095

Toro 100-5033

VALVE OVERHAUL GASKET SET
(Superseded to 117-7558)

$

$

Not available

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

977

Toro 100-5034

GASKET SET-CARBURETOR

$

$

Not available

358

Toro 100-5035

ENGINE OVERHAUL GASKET SET

$

$

Not available

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$23.99

$

Usually ships in 3-6 days

0

121

Toro 100-5036

CARBURETOR KIT

$28.99

$

In Stock, only 1 left!

0

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$6.99

$

In Stock, Qty 16

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Gasket Set-See Ref. 977

$6.99

$

In Stock, Qty 16

0

868

Toro 99-0946

SEAL-VALVE

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

842

Toro 77-7270

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

$10.99

$

Usually ships in 3-6 days

0

524

Toro 77-7300

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

$4.99

$

In Stock, only 1 left!

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Valve Gasket Set-See Ref. 1095

$23.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Engine Gasket Set-See Ref. 358

$23.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-See Ref. 977

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Engine Gasket Set-See Ref. 358

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Gasket Set-See Ref. 1095

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$43.99

$

Usually ships in 3-6 days

0

585

Toro 99-0925

FASTENER

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

993

Toro 99-0948

PLATE-GASKET

Note: Included in Valve Gasket Set-See Ref. 1095

$14.99

$

Usually ships in 3-6 days

0

993

Toro 99-0948

PLATE-GASKET

Note: Included in Engine Gasket Set-See Ref. 358

$14.99

$

Usually ships in 3-6 days

0

20

Toro 99-0955

Oil Seal
(Superseded to 77-7570)

Note: Included in Engine Gasket Set-See Ref. 358

$23.99

$

Usually ships in 3-6 days

0

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977

$4.99

$

In Stock, Qty 5

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Valve Gasket Set-See Ref. 1095

$4.99

$

In Stock, Qty 5

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.99

$

In Stock, Qty 5

0

127

Toro 100-9107

PLUG-WELCH

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Gasket Set-See Ref. 977

$8.49

$

In Stock, only 3 left!

0

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$8.49

$

In Stock, only 3 left!

0
