20826 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) STARTER ASSEMBLY BRIGGS AND STRATTON 123602-0152-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

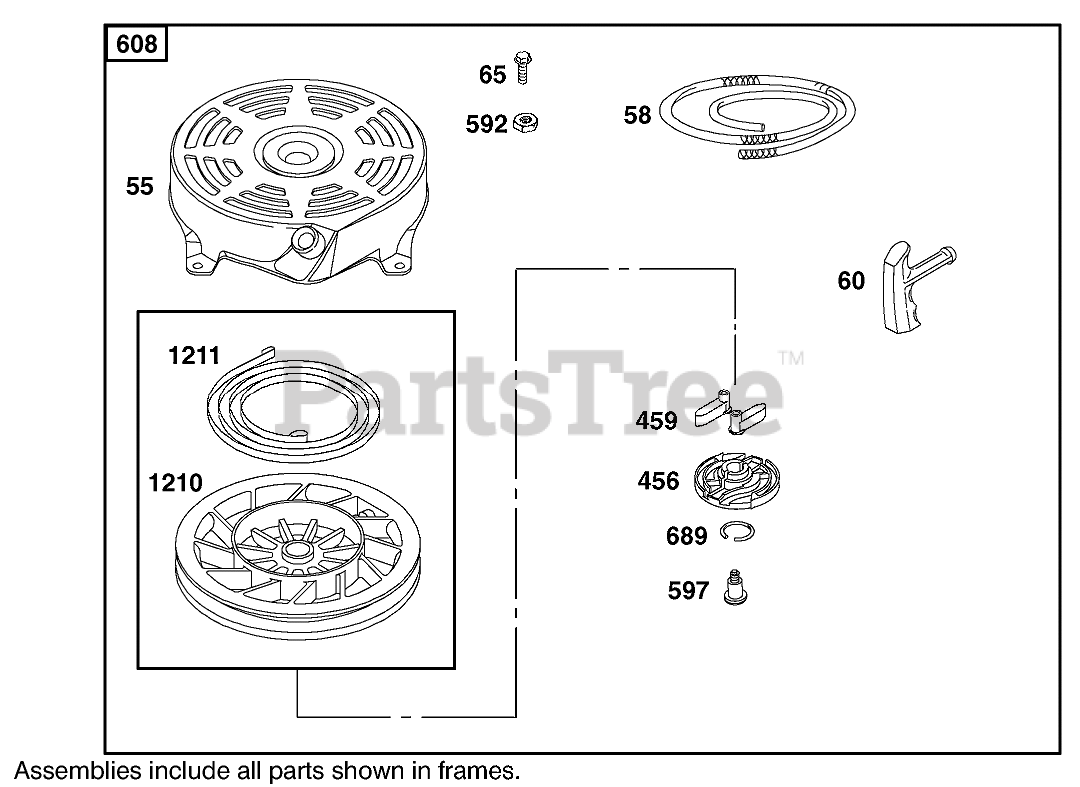

STARTER ASSEMBLY BRIGGS AND STRATTON 123602-0152-E1 Parts Diagram

  • Title
55

Toro 99-1048

HOUSING-STARTER

$

$

Not available

65

Toro 99-1002

SCREW-HH

$

$

Not available

58

Toro 94-1668

Rope-Starter

$5.99

$

In Stock, Qty 7

0

592

Toro 100-9149

NUT (REWIND STARTER)
(Superseded to 99-1009)

$

$

Not available

60

Toro 77-8510

HANDLE - REWIND STARTER
(Superseded to 77-8520)

$

$

Not available

1210

Toro 94-1657

PULLEY-STARTER, REWIND

$67.99

$

Usually ships in 3-6 days

0

1211

Toro 94-1657

PULLEY-STARTER, REWIND

$67.99

$

Usually ships in 3-6 days

0

456

Toro 94-1659

RETAINER-STARTER, REWIND

$8.99

$

Usually ships in 3-6 days

0

459

Toro 94-1654

PAWL-STARTER

$

$

Not available

597

Toro 94-1660

SCREW-SHOULDER

$

$

Not available

689

Toro 94-1655

SPRING-TORSION

$

$

Not available

608

Toro 98-9215

REWIND ASM

$183.99

$

Usually ships in 3-6 days

0
