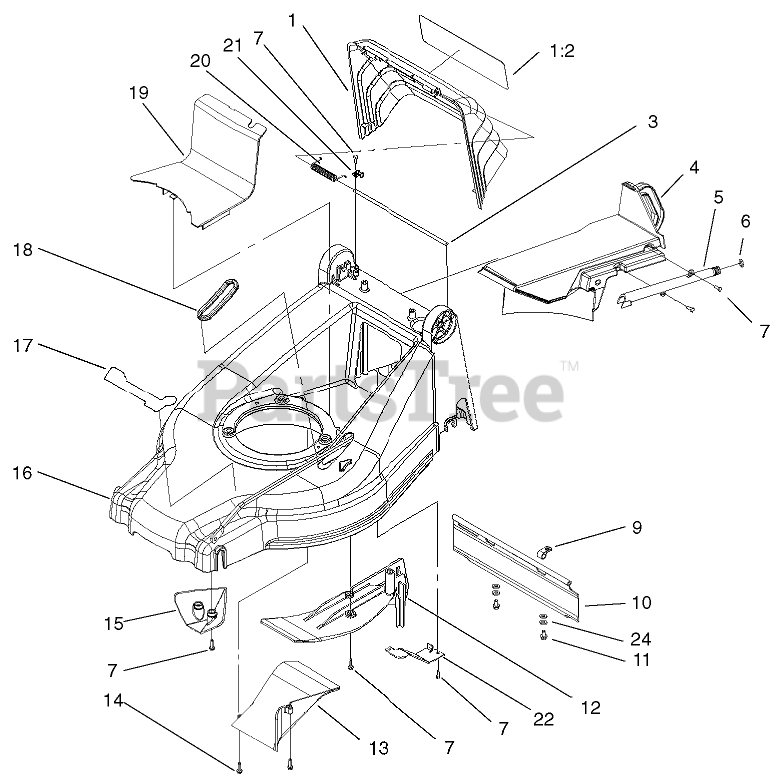

20826 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) DECK, KICKERS AND RECYCLER PLUG ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

DECK, KICKERS AND RECYCLER PLUG ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9115

DOOR ASM

$96.99

$

Usually ships in 3-6 days

0

1:2

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

3

Toro 100-1509

ROD-PIVOT

$6.49

$

Usually ships in 3-6 days

0

4

Toro 100-1505

PLUG-KICKER, RECYCLER

$

$

Not available

5

Toro 100-1522

FITTING-WASHOUT

$19.99

$

Usually ships in 3-6 days

0

6

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

7

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, only 2 left!

0

9

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

10

Toro 100-4367

SHIELD-TRAILING

$113.99

$

Usually ships in 3-6 days

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 99-6486

COVER-KICKER, REAR

$

$

Not available

13

Toro 100-1506

RAMP-DISCHARGE

$24.99

$

Usually ships in 3-6 days

0

14

Toro 100-4352

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

15

Toro 99-6485

KICKER-FRONT

$17.99

$

Usually ships in 3-6 days

0

16

Toro 99-6457-01

Deck
(Superseded to 100-9143)

$

$

Not available

17

Toro 100-4354

DECAL-RECYCLER

$

$

Not available

18

Toro 100-3932

BOOT-HOC

$

$

Not available

19

Toro 99-6479

COVER-BELT

$28.99

$

Usually ships in 3-6 days

0

20

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, Qty 5

0

21

Toro 98-2256

CLAMP

$5.49

$

Usually ships in 3-6 days

0

22

Toro 100-9123-03

BRACKET-DECK

$

$

Not available

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
