20826 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 123602-0152-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

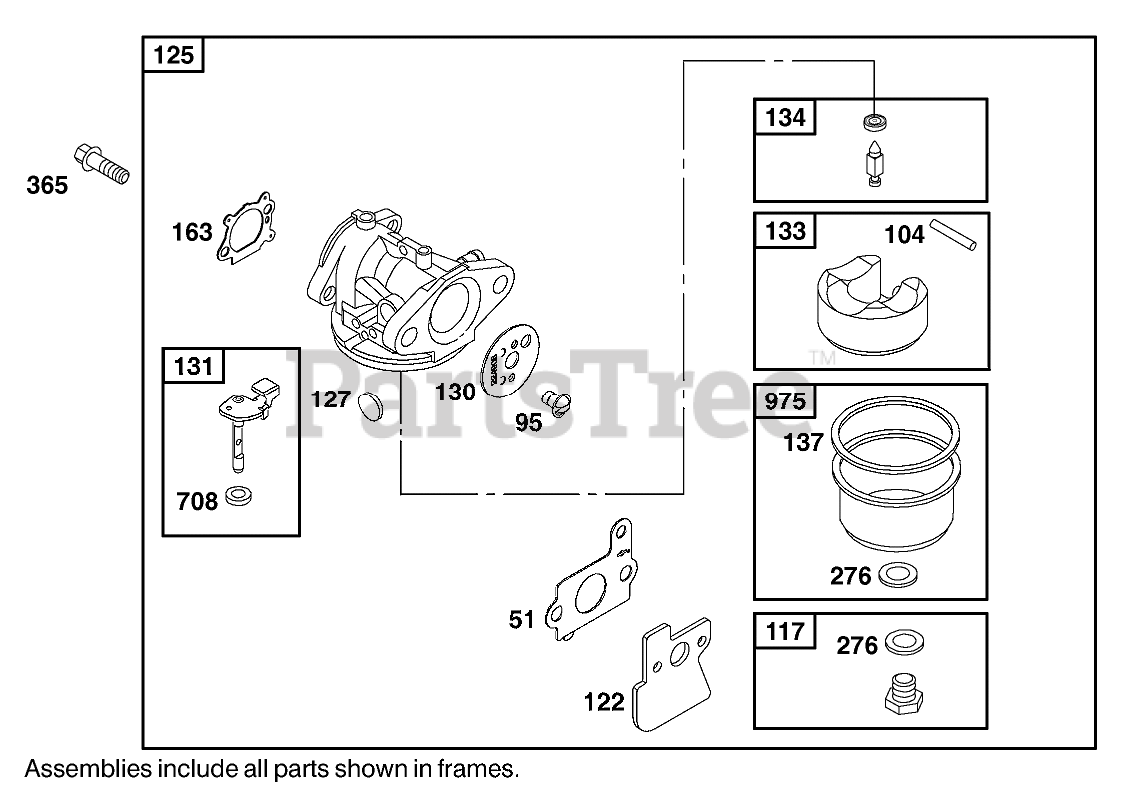

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 123602-0152-E1 Parts Diagram

  • Title
95

Toro 99-0969

SCREW-SPH

$8.49

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

117

Toro 99-0971

JET-MAIN

$

$

Not available

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

708

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

125

Toro 99-0973

CARBURETOR

$

$

Not available

130

Toro 99-0974

VALVE-THROTTLE

$11.99

$

Usually ships in 3-6 days

0

131

Toro 99-0975

SHAFT-THROTTLE

$32.99

$

Usually ships in 3-6 days

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Gasket Set-See Ref. 977

$6.99

$

In Stock, Qty 7

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$6.99

$

In Stock, Qty 7

0

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$23.99

$

Usually ships in 3-6 days

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Engine Gasket Set-See Ref. 358

$4.99

$

In Stock, Qty 6

0

975

Toro 99-0977

BOWL-FLOAT

$

$

Not available

133

Toro 77-8170

FLOAT-CARBURETOR

$32.99

$

In Stock, only 1 left!

0

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-See Ref. 977

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

365

Toro 99-0972

SCREW-SHOULDER

$

$

Not available

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-See Ref. 977

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Engine Gasket Set-See Ref. 358

$43.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Gasket Set-See Ref. 1095

$43.99

$

Usually ships in 3-6 days

0

127

Toro 100-9107

PLUG-WELCH

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$

$

Not available

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Overhaul Kit-See Ref. 121

$8.49

$

In Stock, only 3 left!

0

137

Toro 104-7550

Gasket-Float Bowl
(Superseded to 77-8200)

Note: Included in Carburetor Gasket Set-See Ref. 977

$8.49

$

In Stock, only 3 left!

0
