20824 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE GTS 200 Parts Diagram

48cm Recycler Walk-Behind Mower

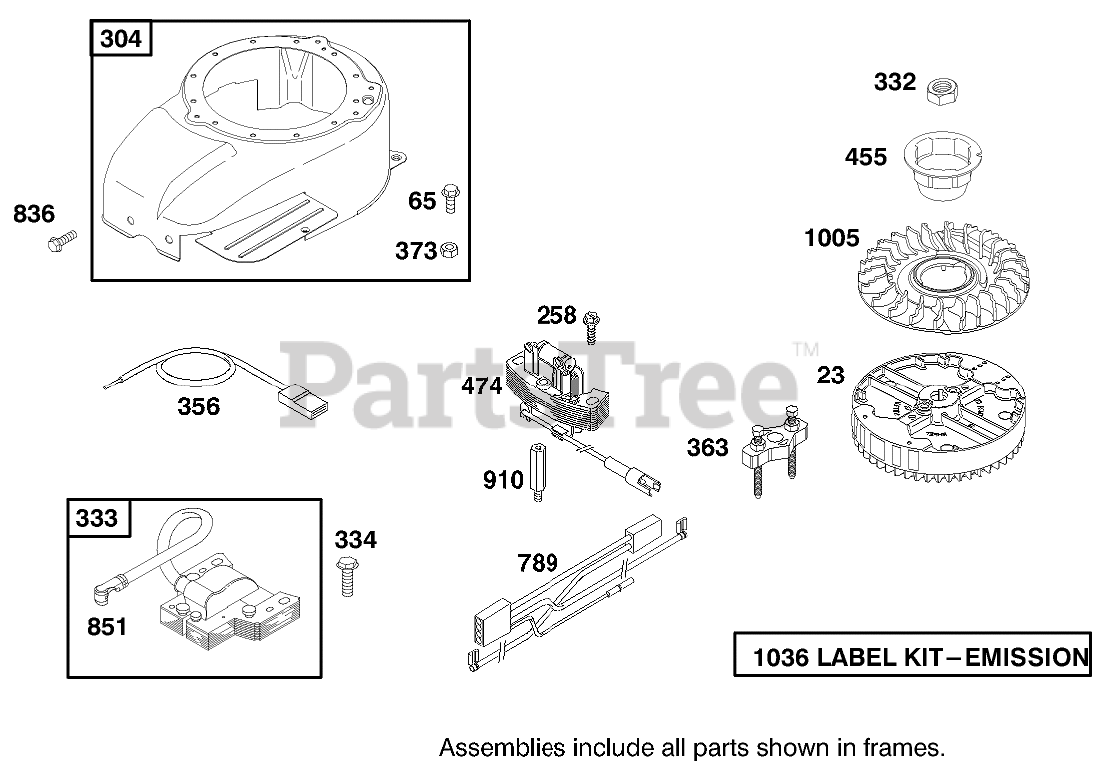

ENGINE GTS 200 Parts Diagram

  • Title
23

Toro 99-1001

FLYWHEEL

$

$

Not available

65

Toro 99-1002

SCREW-HH

$

$

Not available

258

Toro 99-0983

SCREW-HH

$

$

Not available

304

Toro 99-1003

HOUSING-BLOWER

$

$

Not available

332

Toro 99-1004

NUT-FLYWHEEL

$

$

Not available

333

Toro 99-1005

ARMATURE-MAGNETO

$57.99

$

In Stock, Qty 20+

0

334

Toro 99-1006

SCREW-HH

$

$

Not available

356

Toro 99-1007

WIRE-STOP

$

$

Not available

363

Toro 99-1008

PULLER-FLYWHEEL

$

$

Not available

373

Toro 99-1009

NUT-HEX

$

$

Not available

455

Toro 99-1010

CUP-FLYWHEEL

$

$

Not available

474

Toro 99-1011

ALTERNATOR

$

$

Not available

789

Toro 99-1012

WIRING HARNESS

$

$

Not available

836

Toro 99-0941

SCREW-HH

$

$

Not available

851

Toro 77-9450

TERMINAL-PLUG, SPARK

$

$

Not available

910

Toro 99-1014

STUD-MOUNTING, STARTER

$

$

Not available

1005

Toro 99-1015

FAN-FLYWHEEL

$41.99

$

Usually ships in 3-6 days

0

1036

Toro 99-1016

KIT-LABEL, EMISSIONS

$

$

Not available
