20824 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

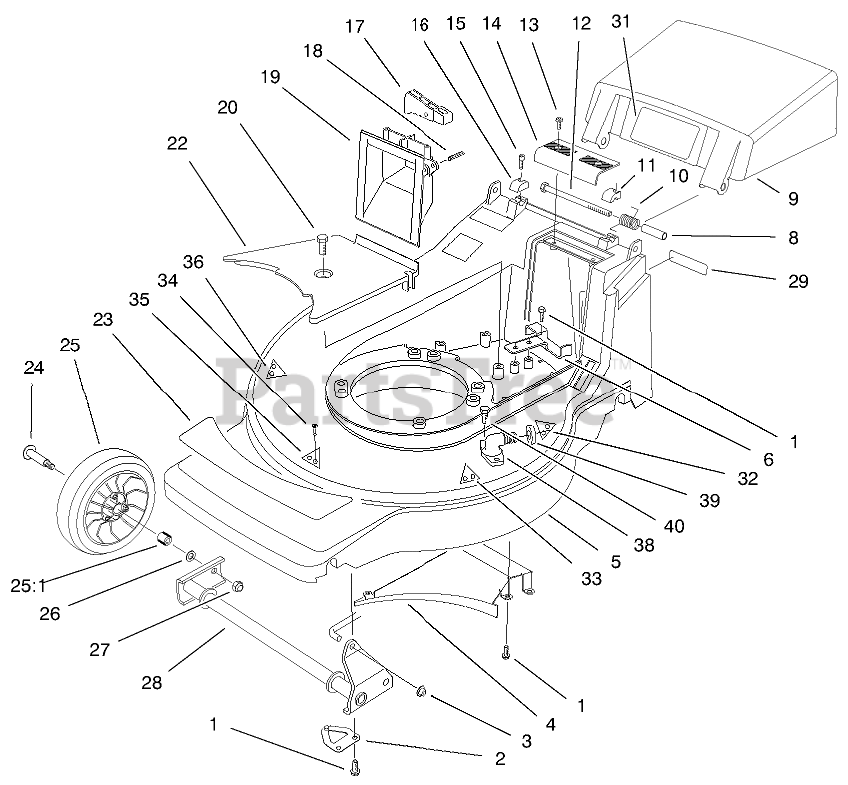

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 71-8830

SHAFT RETAINER ASM

$

$

Not available

3

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

4

Toro 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

5

Toro 95-6134

Housing-Deck (Incl. Ref# 23, 32-36 & 38-40)

$

$

Not available

6

Toro 71-7890

REAR BELT GUIDE

$

$

Not available

8

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

9

Toro 71-9800

Door Discharge
(Superseded to 17-1569)

$118.99

$

Usually ships in 3-6 days

0

10

Toro 71-9840

SPRING-DOOR

$14.99

$

Usually ships in 3-6 days

0

11

Toro 71-7900

CAP-HINGE BOLT, LH

$5.99

$

Usually ships in 3-6 days

0

12

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

13

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

14

Toro 71-7860

GRIP-UPPER

$

$

Not available

15

Toro 65-5210

SCREW-HSH

$

$

Not available

16

Toro 71-7910

CAP-HINGE BOLT, RH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 71-7930

TRIGGER - HOC

$

$

Not available

18

Toro 3284-5

PIN-SPIRAL

$

$

Not available

19

Toro 71-7870

GRIP - LOWER

$

$

Not available

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 71-7920

BELT COVER

$

$

Not available

23

Toro 92-7863

DECAL - DECK

$

$

Not available

24

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

25

Toro 46-1113

7 " WHEEL/TIRE ASM

$

$

Not available

25:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

26

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

27

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

28

Toro 71-7820

FRONT PIVOT WA

$227.99

$

Usually ships in 3-6 days

0

31

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

32

Toro 71-9250

KICKER

$32.99

$

Usually ships in 3-6 days

0

33

Toro 71-9440

KICKER

$42.99

$

Usually ships in 3-6 days

0

34

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

35

Toro 71-8920

KICKER

$32.99

$

Usually ships in 3-6 days

0

36

Toro 71-9230

KICKER

$

$

Not available

38

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

39

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

40

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0
