20823 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

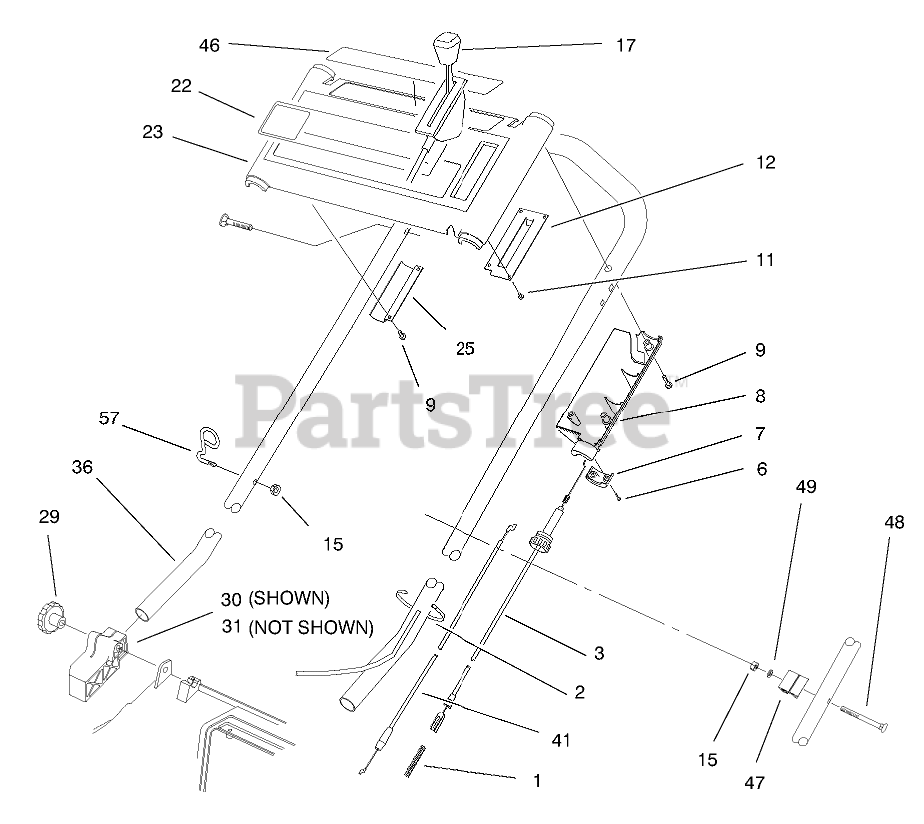

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 95-9649

CABLE - TRACTION

$

$

Not available

6

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

7

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

8

Toro 98-3247

COVER - LOWER THROTTLE

$19.99

$

Usually ships in 3-6 days

0

9

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

11

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

12

Toro 71-8040

THROTTLE PLATE

$

$

Not available

15

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

17

Toro 98-1509

ASSEMBLY - CONTROL

$

$

Not available

22

Toro 71-9863

DECAL - PANEL OHV

$

$

Not available

23

Toro 17-4319

Panel-Control (Incl. Ref# 46)
(Superseded to 94-9436)

$

$

Not available

25

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

29

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

30

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

31

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

36

Toro 94-4367

Handle
(Superseded to 94-4367-05)

$

$

Not available

41

Toro 93-1116

CABLE - BRAKE

$68.99

$

Usually ships in 3-6 days

0

46

Toro 94-6026

DECAL - CONTROL PANEL

$

$

Not available

47

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

48

Toro 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

49

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

57

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0
