20823 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) DECK SUSPENSION ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

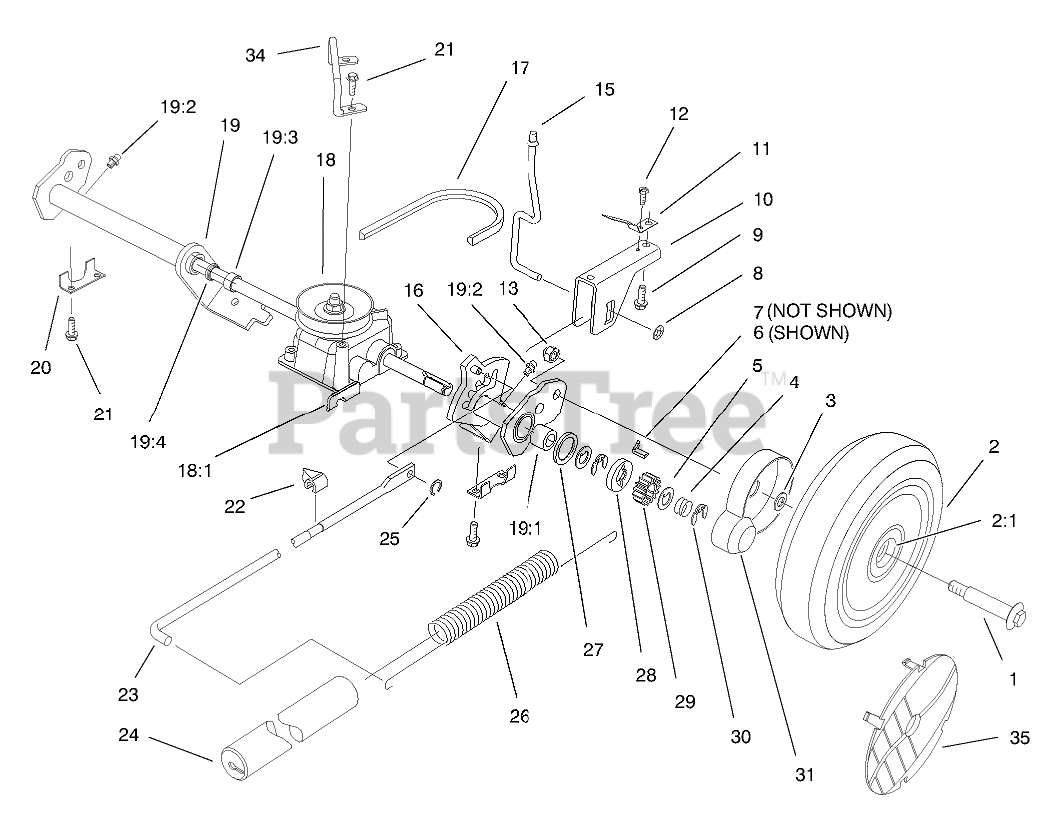

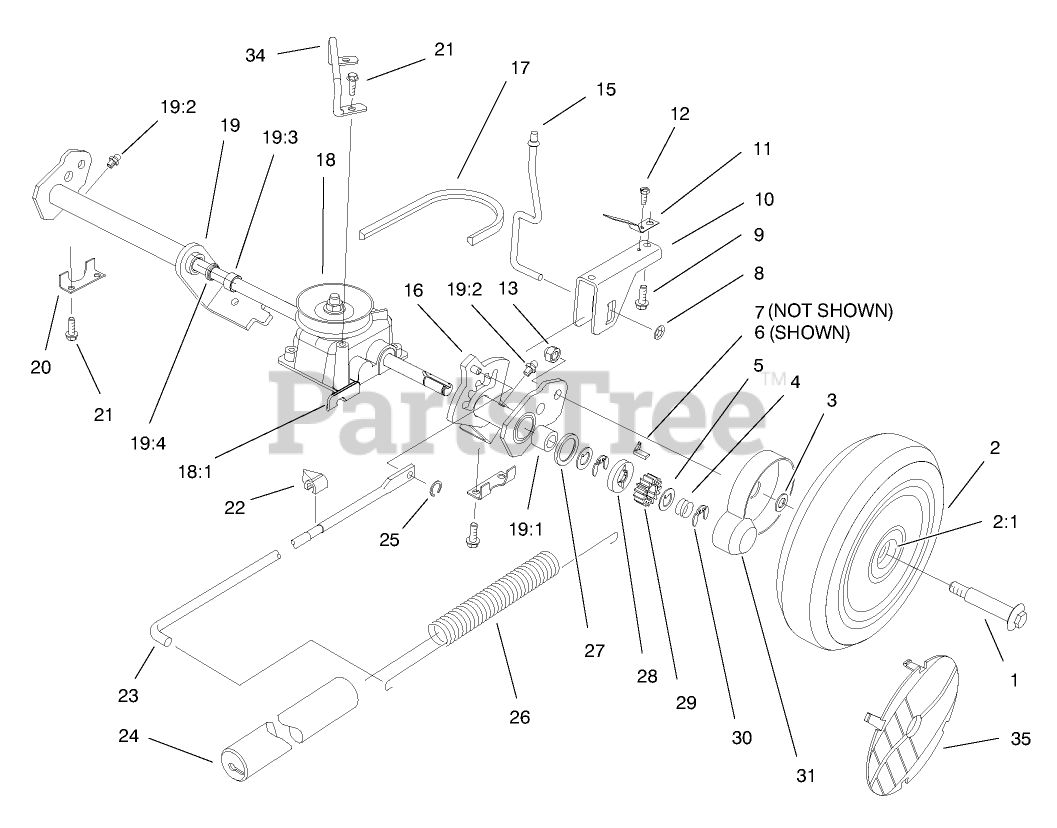

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

2

Toro 14-9959

WHL & TIRE ASSEMBLY

$62.99

$

In Stock, only 2 left!

0

2:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

3

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 13

0

4

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

5

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 12

0

6

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 9

0

7

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, only 2 left!

0

8

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

9

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

10

Toro 71-8080

SADDLE - HOC

$

$

Not available

11

Toro 71-8060

SPRING - TRIGGER RET

$

$

Not available

12

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

13

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

15

Toro 71-7840

TRIGGER ROD

$27.99

$

Usually ships in 3-6 days

0

16

Toro 92-9677

ASM - LH PIVOT ARM

$

$

Not available

17

Toro 71-9450

V-BELT

$23.99

$

In Stock, only 4 left!

0

18

Toro 71-9600

GEAR CASE ASSY

$

$

Not available

18:1

Toro 98-2039

TRACTION BRACKET

$

$

Not available

19

Toro 92-9680

ASM - RH PIVOT ARM

$213.99

$

Usually ships in 3-6 days

0

19:1

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

19:2

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

19:3

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

19:4

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

20

Toro 71-7770

REAR SECURING PLATE

$

$

Not available

21

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$9.99

$

Usually ships in 3-6 days

0

23

Toro 71-7970

LINK ROD

$

$

Not available

24

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

25

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

26

Toro 71-7740

SPRING-COUNTERBALANCE

$47.99

$

Usually ships in 3-6 days

0

27

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 10

0

28

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 6

0

29

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

30

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

31

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

34

Toro 95-2740

Retainer Belt
(Superseded to 95-2740-03)

$

$

Not available

35

Toro 92-7663

COVER-WHEEL
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0
