20821 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) GTS 150 Parts Diagram

48cm Recycler Walk-Behind Mower

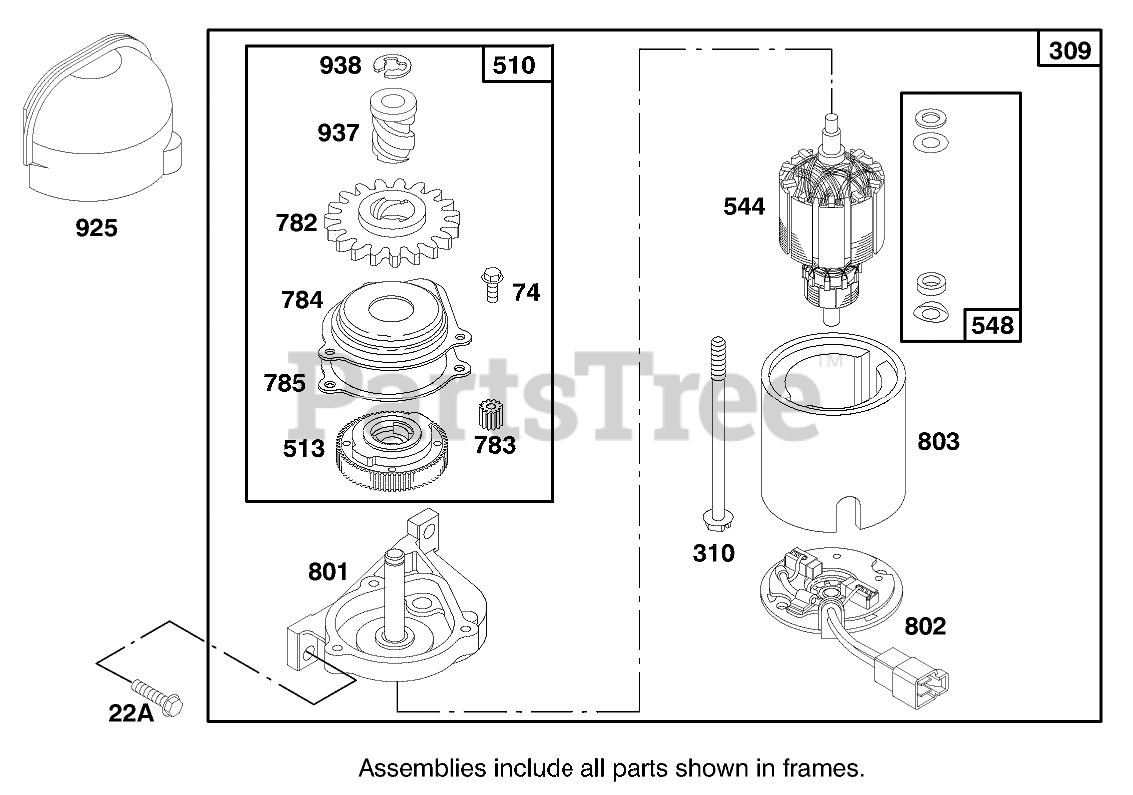

GTS 150 Parts Diagram

  • Title
22A

Toro 77-8720

SCREW - CARBUERTOR MTG

$

$

Not available

74

Toro 77-7420

SCREW - SEM

$

$

Not available

309

Toro 77-8670

MOTOR - STARTER

$

$

Not available

310

Toro 77-8710

SCREW - MOTOR

$

$

Not available

510

Toro 77-8910

DRIVE SET

$153.99

$

Usually ships in 3-6 days

0

513

Toro 77-8770

CLUTCH - STARTER

$102.99

$

Usually ships in 3-6 days

0

544

Toro 77-8730

Armature Starter
(Superseded to 77-8670)

$

$

Not available

548

Toro 77-8740

WASHER ASSEMBLY

$

$

Not available

782

Toro 77-8810

GEAR - STARTER

$24.99

$

Usually ships in 3-6 days

0

783

Toro 77-8760

GEAR - PINION

$

$

Not available

784

Toro 77-8780

COVER - GEAR

$

$

Not available

785

Toro 77-8790

GASKET - COVER

$

$

Not available

801

Toro 77-8680

CAP - DRIVE

$

$

Not available

802

Toro 77-8690

CAP - END

$

$

Not available

803

Toro 77-8700

HOUSING - STARTER

$

$

Not available

925

Toro 77-7200

COVER - STARTER

$12.99

$

Usually ships in 3-6 days

0

937

Toro 77-8820

DRIVE - STARTER

$

$

Not available

938

Toro 77-8830

RETAINER - LOCK

$

$

Not available
