20821 B - Toro 48cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HOUSING ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

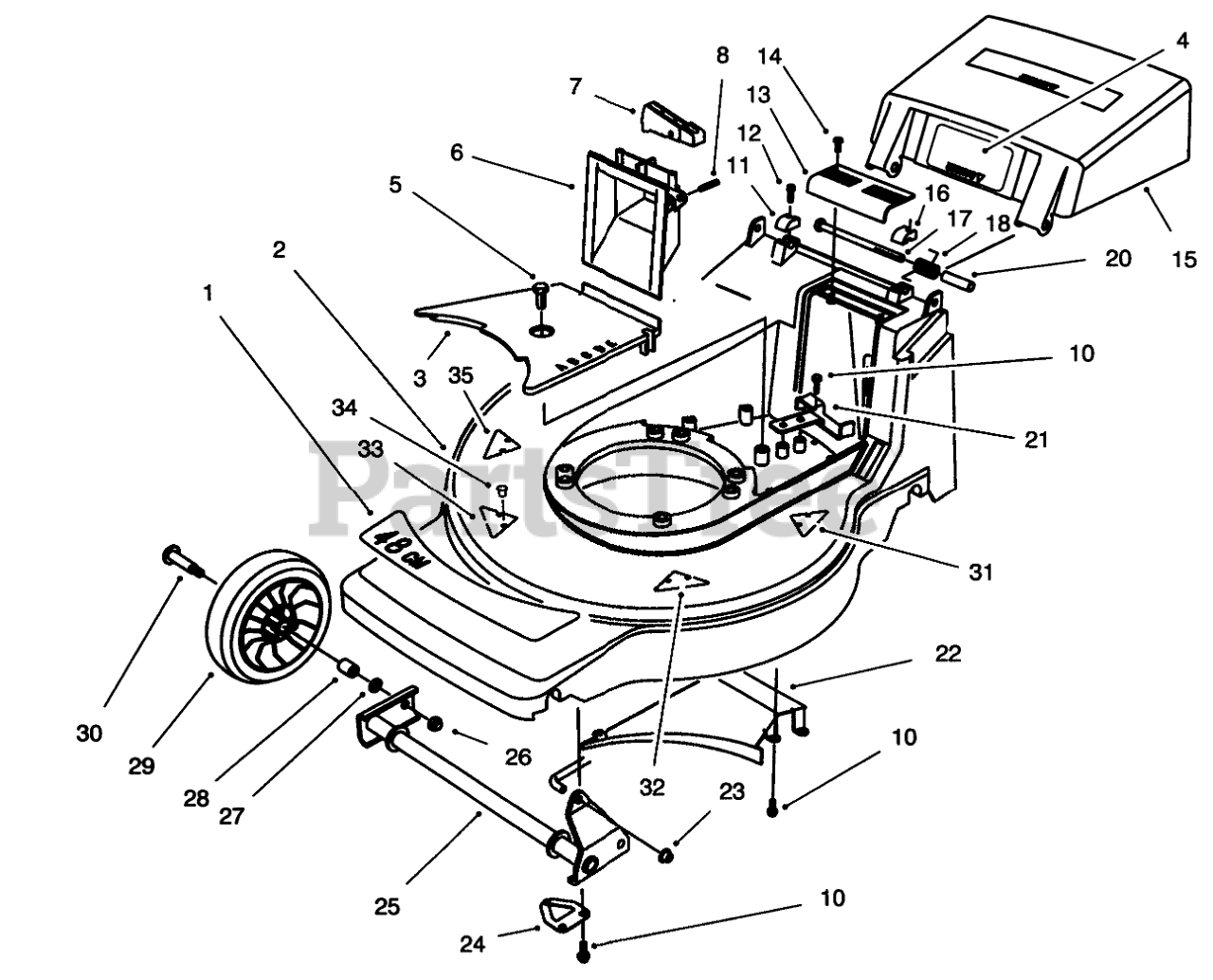

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 92-7863

DECAL - DECK

$

$

Not available

2

Toro 16-5989

Housing-48cm (Incl. Ref. #31-35)

$

$

Not available

3

Toro 71-7920

BELT COVER

$

$

Not available

4

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$18.99

$

Usually ships in 3-6 days

0

5

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 71-7870

GRIP - LOWER

$

$

Not available

7

Toro 71-7930

TRIGGER - HOC

$

$

Not available

8

Toro 3284-5

PIN-SPIRAL

$

$

Not available

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 71-7910

CAP-HINGE BOLT, RH

$5.99

$

Usually ships in 3-6 days

0

12

Toro 65-5210

SCREW-HSH

$

$

Not available

13

Toro 71-7860

GRIP-UPPER

$

$

Not available

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

15

Toro 71-9800

Door Discharge
(Superseded to 17-1569)

$118.99

$

Usually ships in 3-6 days

0

16

Toro 71-7900

CAP-HINGE BOLT, LH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

18

Toro 71-9840

SPRING-DOOR

$14.99

$

Usually ships in 3-6 days

0

20

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

21

Toro 71-7890

REAR BELT GUIDE

$

$

Not available

22

Toro 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

23

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

24

Toro 71-8830

SHAFT RETAINER ASM

$

$

Not available

25

Toro 71-7820

FRONT PIVOT WA

$227.99

$

Usually ships in 3-6 days

0

26

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

27

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

28

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

29

Toro 46-1113

Wheel & Tire Assembly (Incl. Ref. #28)

$

$

Not available

30

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

31

Toro 71-9250

KICKER

$32.99

$

Usually ships in 3-6 days

0

32

Toro 71-9440

KICKER

$42.99

$

Usually ships in 3-6 days

0

33

Toro 71-8920

KICKER

$32.99

$

Usually ships in 3-6 days

0

34

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

35

Toro 71-9230

KICKER

$

$

Not available
