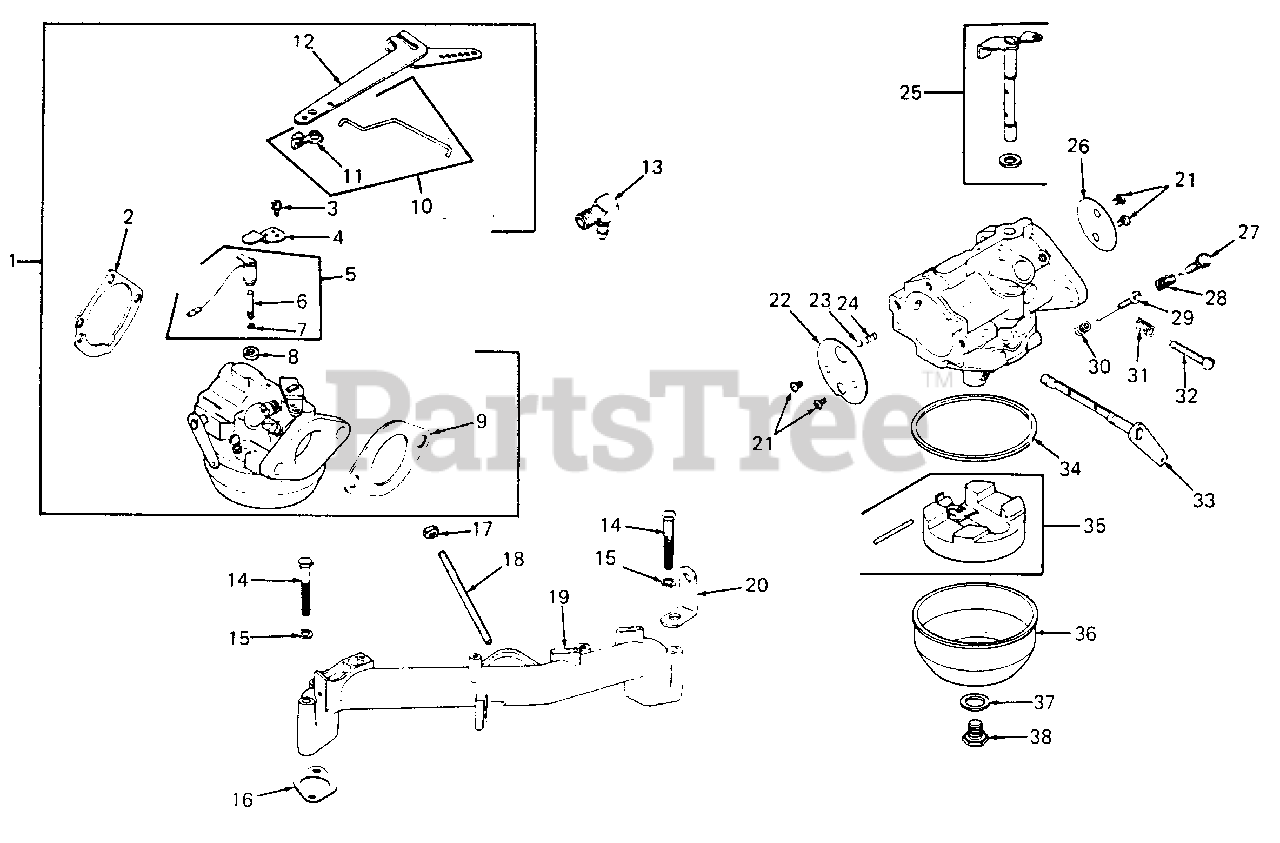

2082 (142-732-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 836000) Carburetor Parts Diagram

Super Garden Tractor

Carburetor Parts Diagram

  • Title

1

Cub Cadet KH-52-853-26

Kit, Carburetor w/Linkage

Note: (Includes Ref No. 2 thru 12 and 21 thru 38)

$

$

Not available

2

Cub Cadet KH-25-041-06

Gasket, Air Cleaner Elbow

$

$

Not available

3

Cub Cadet KH-52-086-15

Screw

$

$

Not available

4

Cub Cadet KH-52-126-13

Bracket, Solenoid

$

$

Not available

5

Cub Cadet KH-25-755-06

Kit, Solenoid

Note: (Includes Ref No. 6 & 7)

$

$

Not available

6

Cub Cadet KH-52-411-07

Rod, Plunger

$

$

Not available

7

Cub Cadet KH-52-153-01

O-Ring

$

$

Not available

8

Cub Cadet KH-277180

Gasket, Needle Seat

$

$

Not available

9

Cub Cadet KH-271030

Gasket, Carburetor

$7.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-82-755-06

Kit, Governor Linkage

Note: (Includes Ref No. 11)

$

$

Not available

11

Cub Cadet KH-25-158-09

Bushing, Governor Linkage
(Superseded to KH-25-158-11)

$

$

Not available

12

Cub Cadet KH-52-186-06

Arm, Governor

$

$

Not available

13

Cub Cadet KH-25-155-02

Connector, Hose

$

$

Not available

14

Cub Cadet KH-X-6-8

Screw, HC 5/16-18 X 2-3/4

$

$

Not available

15

Cub Cadet KH-X-21-1

Washer, Lock, 5/16

$

$

Not available

16

Cub Cadet KH-52-041-09

Gasket, Intake Manifold
(Superseded to KH-52-041-09-S)

$13.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-X-77-2

Nut, Hex Jam, 5/16-18

$

$

Not available

18

Cub Cadet KH-X-352-37

Stud, 5/16-18 X 1

$

$

Not available

19

Cub Cadet KH-52-164-10

Manifold, Intake

$

$

Not available

20

Cub Cadet KH-52-445-02

Strap, Lifting

$

$

Currently unavailable

21

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

$

$

Not available

22

Cub Cadet KH-25-146-03

Plate, Choke

$

$

Not available

23

Cub Cadet KH-25-194-01

Ball, Choke Friction

$

$

Not available

24

Cub Cadet KH-25-089-03

Spring, Choke Friction

$

$

Not available

25

Cub Cadet KH-52-144-18

Shaft, Throttle w/Lever & Seal

$

$

Not available

26

Cub Cadet KH-25-146-02

Plate, Throttle

$

$

Not available

27

Cub Cadet KH-25-368-01

Needle, Idle Fuel Adj

$

$

Not available

28

Cub Cadet KH-25-089-02

Spring, Idle Fuel

$

$

Not available

29

Cub Cadet KH-25-368-03

Needle, Main Fuel

$

$

Not available

30

Cub Cadet KH-25-089-02

Spring, Main Fuel

$

$

Not available

31

Cub Cadet KH-25-089-04

Spring, Idle Speed

$

$

Not available

32

Cub Cadet KH-25-086-26

Screw, Idle Speed Adj

$

$

Not available

33

Cub Cadet KH-52-090-12

Lever, Choke

$

$

Currently unavailable

34

Cub Cadet KH-25-041-04

Gasket, Bowl

$

$

Not available

35

Cub Cadet KH-25-757-09

Kit, Float

$

$

Not available

36

Cub Cadet KH-25-104-01

Bowl, Fuel

$

$

Not available

37

Cub Cadet KH-25-041-03

Gasket, Bowl Retainer Screw

$

$

Not available

38

Cub Cadet KH-25-100-05

Screw, Bowl Retainer
(Superseded to KH-12-086-05)

$

$

Not available

Cub Cadet KH-25-518-12

Lead, White w/Diode Key to Module, 27" - 14 Gauge

Note: (Insulated push on tab & uninsulated push on tab terminals)

$

$

Currently unavailable

Cub Cadet KH-25-452-03

Terminal, Ring Tong

$

$

Currently unavailable

Cub Cadet KH-25-452-07

Terminal

$

$

Not available

Cub Cadet KH-25-518-12

Lead, Black, 6" - 18 Gauge

Note: (Uninsulated push on tab & insulated eyelet)

$

$

Currently unavailable

Cub Cadet KH-X-22-11

Washer, IT 1/4

Note: (Attach to KH-41 518 18 lead)

$

$

Not available

Cub Cadet KH-25-757-11

Kit, Carburetor Repair

$

$

Not available
