2082 (142-732-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 836000) Air Intake Parts Diagram

Super Garden Tractor

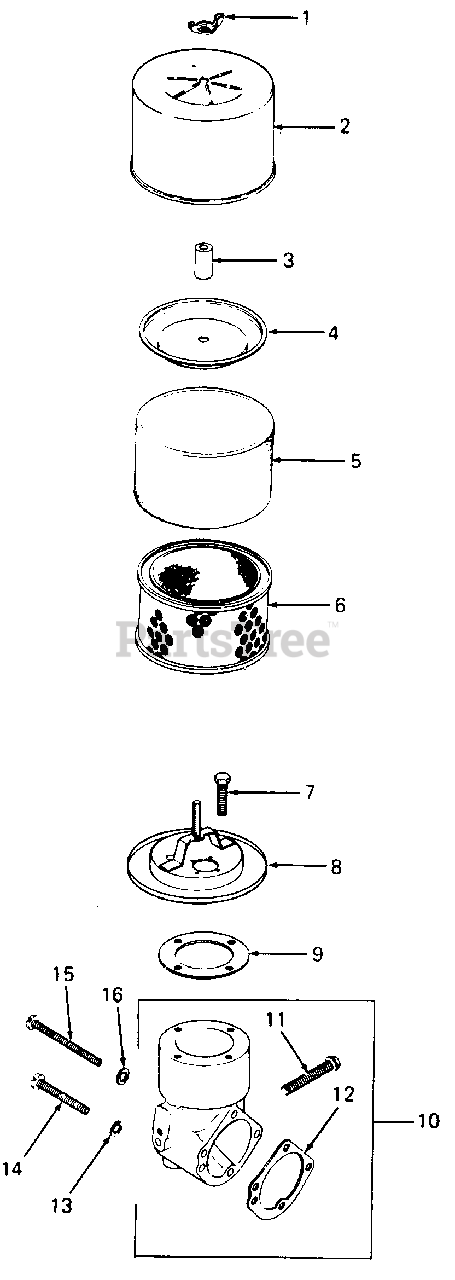

Air Intake Parts Diagram

  • Title

1

Cub Cadet KH-X-276-7

Nut, Wing, 1/4-20
(Superseded to KH-25-100-15-S)

$

$

Not available

2

Cub Cadet KH-45-082-01

Cover, Air Cleaner

$

$

Not available

3

Cub Cadet KH-231032

Seal, Element Cover

$

$

Not available

4

Cub Cadet KH-52-082-04

Cover, Air Cleaner Element

$

$

Not available

5

Cub Cadet KH-45-083-01

Precleaner
(Superseded to 4588302S1C)

$27.99

$

In Stock, only 3 left!

0

6

Cub Cadet 759-3359

Element
(Superseded to 4588302S1C)

$27.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-X-67-98

Screw, Sltd Hex Wash Hd, #10-32 X .56 Lg
(Superseded to KH-25-086-110-S)

$3.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-52-094-06

Base, Air Cleaner

$

$

Not available

9

Cub Cadet KH-277093

Gasket, Air Cleaner

$

$

Not available

10

Cub Cadet KH-52-754-01

Kit, Elbow

Note: (Includes Ref No. 11 & 12)

$

$

Not available

11

Cub Cadet KH-52-086-11

Screw, Hex Cap, 1/4-20 X .62 Lg

$

$

Not available

12

Cub Cadet KH-25-041-06

Gasket, Air Intake Elbow

$

$

Not available

13

Cub Cadet KH-X-22-9

Washer, I.T. #10

$

$

Not available

14

Cub Cadet KH-X-50-57

Screw, Sltd Pan Hd, #10-32 X 1.5 Lg
(Superseded to KH-25-086-63-S)

$

$

Not available

15

Cub Cadet KH-X-50-37

Screw, Sltd Pan Hd, #10-32 X 2.25 Lg

$

$

Not available

16

Cub Cadet KH-X-25-79

Washer, Plain, #10

$

$

Not available

Cub Cadet KH-25-113-07

Decal, Air Cleaner Instruction

$

$

Not available
