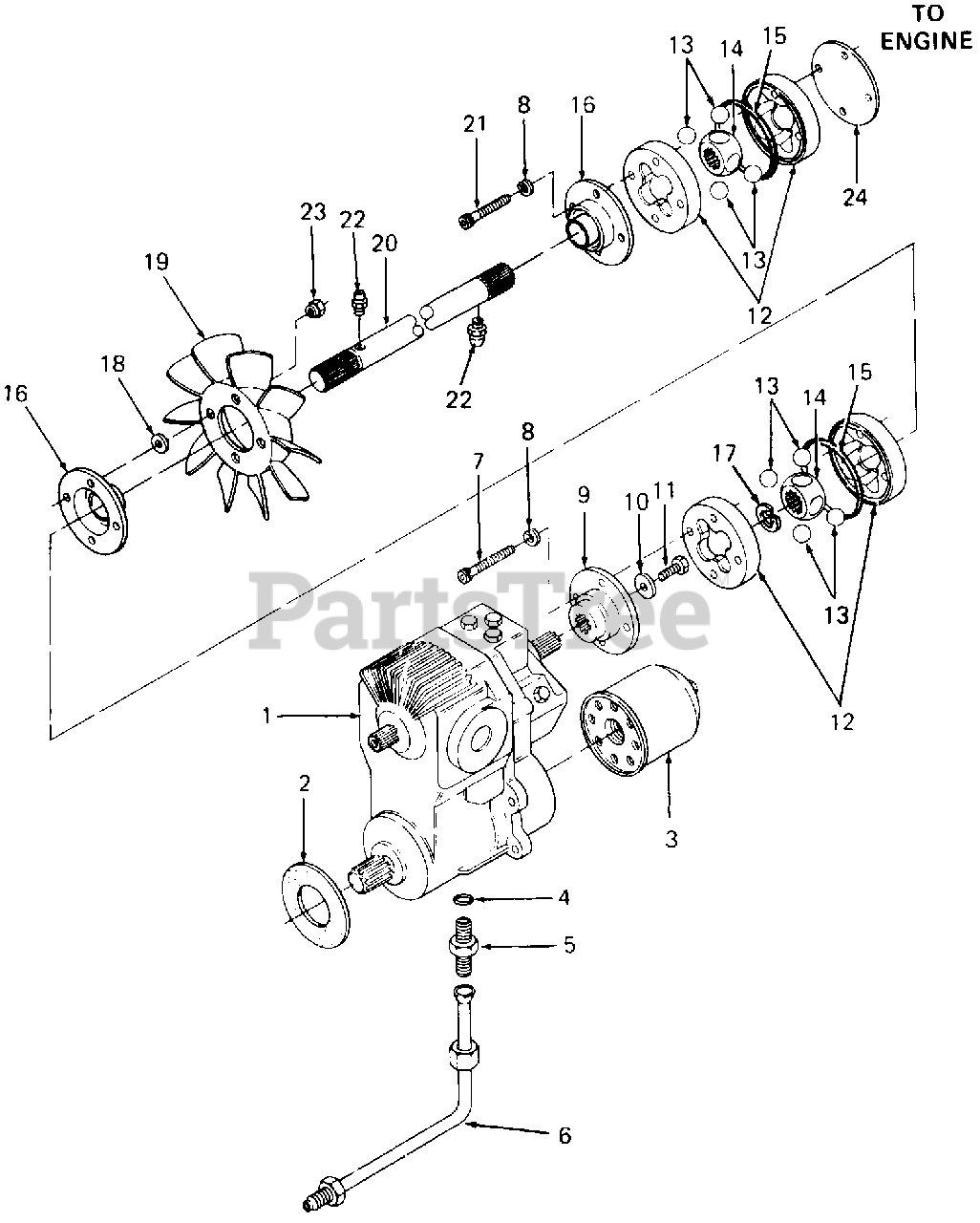

2082 (140-731-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 821059) Drive Line Parts Diagram

Super Garden Tractor

Drive Line Parts Diagram

  • Title
1

Cub Cadet 717-3312

Pump, Hydrostatic
(Superseded to 917-3312)

Note: For components see "Hydrostatic Pump" illustration and parts list.

$

$

Not available

Cub Cadet 710-3120

Bolt, Hex Patch Lock, 3/8-16 X 1.5 Lg GR5

$3.99

$

In Stock, Qty 19

0

2

Cub Cadet 721-3004

Gasket, Front
(Superseded to 921-3004)

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

4

Cub Cadet 721-3005

O-Ring, 5/8 OD Tube
(Superseded to 921-3005)

$

$

Not available

5

Cub Cadet 727-3009

Connector, 37 Degree

$

$

Not available

6

Cub Cadet 727-3027

Tube Assy

$

$

Not available

7

Cub Cadet 710-3212

Screw, Socket Hd Cap, 1/4-20 X 2.0 Lg

$5.99

$

In Stock, Qty 5

0

8

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 748-3038

Adapter, Pump

$

$

Not available

10

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3220

Bolt, Hex Patch, 1/4-20 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 12

0

12

Cub Cadet 748-3030A

Coupling, Drive w/O-Ring Groove

$

$

Not available

13

Cub Cadet 723-3022

Ball, Steel, 5/8 Dia Chrome

$6.99

$

In Stock, Qty 18

0

14

Hub, Drive

Note: Order P/N 759-3614

$

$

Not available

15

Cub Cadet 721-3025

O-Ring, 2.489 X.070

$

$

Not available

16

Cub Cadet 735-3029

Boot, Coupling

$

$

Not available

Cub Cadet 737-3023

Grease, CV Polyrex

$

$

Currently unavailable

17

Cub Cadet 716-0171

Ring, Snap
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0463

Washer, Flat, .25 X .62 X .052 Thk

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 731-3095

Fan, 10 Blade Hydro
(Superseded to 931-3095)

$28.99

$

Usually ships in 3-6 days

0

20

Shaft, Drive, 23.9 Lg

Note: Order P/N 759-3614

$

$

Not available

21

Cub Cadet 710-3211

Screw, Socket Hd Cap, 1/4-20 X 1.75 Lg

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 748-3037

Nut, Fan 1/4-20
(Superseded to 948-3037)

$

$

Not available

24

Cub Cadet 703-1819

Cover, Coupling
(Superseded to 903-1819)

$

$

Not available

Cub Cadet 759-3614

Kit, Drive Line Replacement
(Superseded to 759-3614P)

Note: Includes Ref No. 7, 8, 12, 13, 14, 15, 16, 17, 20, 21, 22 & 24

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available
